B22C37002Q-01 – 3.71 Inch 260x960 IPS TFT LCD Display with HDMI Driver Board

B22C37002Q-01 is a 3.71-inch IPS TFT LCD display with 260 x 960 resolution and a RGB panel interface. The specified brightness is 300 nits. This module configuration includes an HDMI driver board. Touch panel support is optional.

B22C37002Q-01 – 3.71 Inch 260x960 IPS TFT LCD Display with HDMI Driver Board

Module Configuration

Display + HDMI Driver Board

Storage Temperature

-30 C to +80 C
Operating Temperature

-20 C to +70 C

Interface

RGB
PIN

40

Brightness (nits)

300
Active Area (mm)

22.86 x 91.44

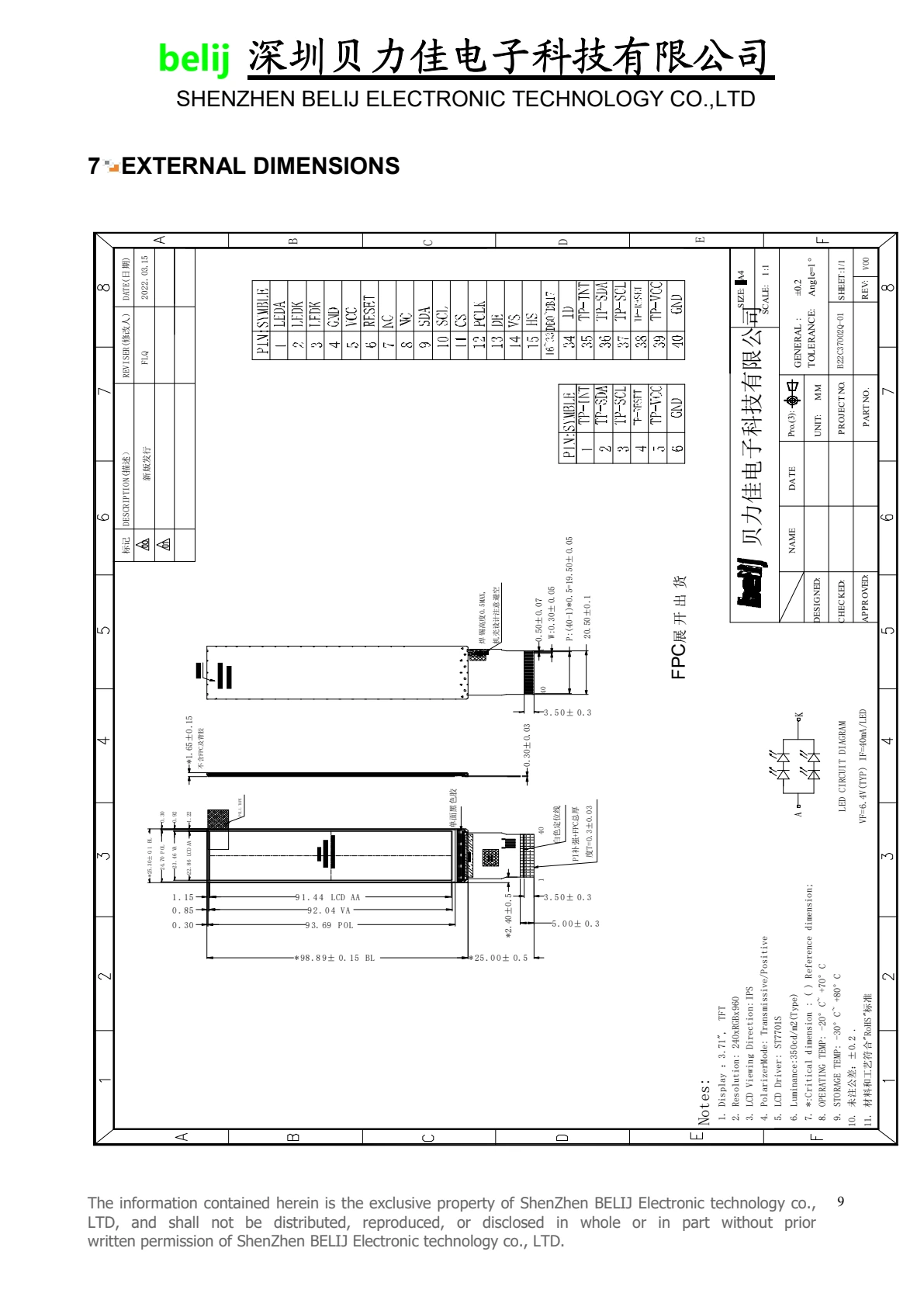

Outline Dimension (mm)

25.3 x 98.89 x 1.65
Resolution

260 x 960

Viewing Angle

IPS
Touch Panel

Optional

Model No

B22C37002Q-01
Size

3.71 inch

Technical Specifications

Size	3.71 inch
Model No	B22C37002Q-01
Touch Panel	Optional
Display Type	IPS
Resolution	260 x 960
Outline Dimension (mm)	25.3 x 98.89 x 1.65
Active Area (mm)	22.86 x 91.44
Brightness (nits)	300
PIN	40
Interface	RGB
Operating Temperature	-20 C to +70 C
Storage Temperature	-30 C to +80 C
Module Configuration	Display + HDMI Driver Board

Key Features

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices

Customization Options

Display size, resolution and brightness tailored to your project
Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
Optional touch: resistive or capacitive (full lamination)
Custom cover glass, frame and structural design
Driver IC and backlight customization for special requirements
No MOQ for custom orders. Small-batch customization and mass production supported.
