Bar Type LCD Display

B26C22005Q-01 – 2.15 Inch 204x700 QSPI Bar-Type IPS TFT LCD Display

B26C22005Q-01 is a 2.15-inch IPS TFT LCD display with 204 x 700 resolution and a...

B25C22004Q-01 – 2.2 Inch 200x480 QSPI Bar-Type IPS TFT LCD Display

B25C22004Q-01 is a 2.2-inch IPS TFT LCD display with 200 x 480 resolution and a...

B26C28052Q-01 – 2.86 Inch 376x960 RGB Bar-Type IPS TFT LCD Display

B26C28052Q-01 is a 2.86-inch IPS TFT LCD display with 376 x 960 resolution and a...

B22C37002Q-01 – 3.71 Inch 260x960 RGB Bar-Type IPS TFT LCD Display

B22C37002Q-01 is a 3.71-inch IPS TFT LCD display with 260 x 960 resolution and a...

B22C40286Q-01-C – 3.99 Inch 400x960 RGB Bar-Type IPS TFT LCD Display with Capacitive Touch

B22C40286Q-01-C is a 3.99-inch IPS TFT LCD display with 400 x 960 resolution and a...

B22C45194Q-01 – 4.58 Inch 320x960 RGB Bar-Type IPS TFT LCD Display

B22C45194Q-01 is a 4.58-inch IPS TFT LCD display with 320 x 960 resolution and a...

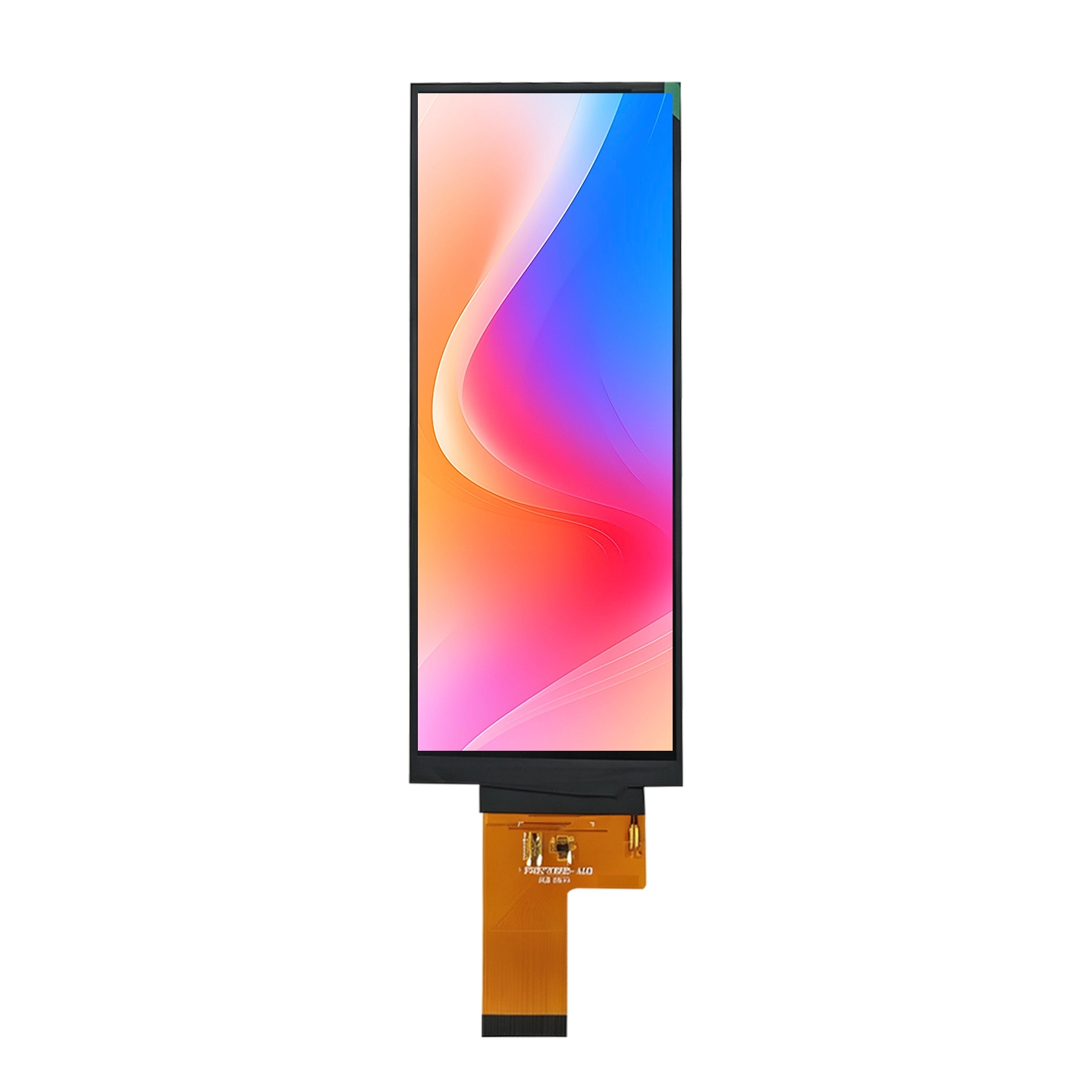

B26C70982N-01 – 6.75 Inch 480x1280 MIPI Bar-Type IPS TFT LCD Display

B26C70982N-01 is a 6.75-inch IPS TFT LCD display with 480 x 1280 resolution and a...

B26C88001N-01 – 8.8 Inch 480x1920 MIPI Bar-Type IPS TFT LCD Display

B26C88001N-01 is a 8.8-inch IPS TFT LCD display with 480 x 1920 resolution and a...

B25C70968N-01 – 6.75 Inch 480x1280 MIPI Bar-Type IPS TFT LCD Display

B25C70968N-01 is a 6.75-inch IPS TFT LCD display with 480 x 1280 resolution and a...

B25C70966N-01 – 6.75 Inch 480x1280 MIPI Bar-Type IPS TFT LCD Display

B25C70966N-01 is a 6.75-inch IPS TFT LCD display with 480 x 1280 resolution and a...

B22C70945Q-01-C – 6.75 Inch 480x1280 MIPI Bar-Type IPS TFT LCD Display with Capacitive Touch

B22C70945Q-01-C is a 6.75-inch IPS TFT LCD display with 480 x 1280 resolution and a...

B25C61001N-01-C – 6.1 Inch 280x1424 MIPI Bar-Type IPS TFT LCD Display with Capacitive Touch

B25C61001N-01-C is a 6.1-inch IPS TFT LCD display with 280 x 1424 resolution and a...

B22C45193Q-01 – 4.58 Inch 320x960 MIPI Bar-Type IPS TFT LCD Display

B22C45193Q-01 is a 4.58-inch IPS TFT LCD display with 320 x 960 resolution and a...

B26C34002Q-01 – 3.4 Inch 180x640 RGB Bar-Type IPS TFT LCD Display

B26C34002Q-01 is a 3.4-inch IPS TFT LCD display with 180 x 640 resolution and a...

B24C19001Q-01 – 1.9 Inch 170x320 SPI Bar-Type IPS TFT LCD Display

B24C19001Q-01 is a 1.9-inch IPS TFT LCD display with 170 x 320 resolution and a...

Bar Type LCD Displays – Stretched TFT Screens 2.9" to 12.3"

Bar type LCD displays, also known as stretched TFT screens, are designed for applications where standard 4:3 or 16:9 aspect ratios do not fit. Ideal for server systems, audio equipment, advertising displays, security devices, industrial control panels, medical devices, drone controllers, and retail terminals. Beilijia offers bar type displays from 2.9" to 12.3", supporting RGB, LVDS, and MIPI interfaces. No MOQ for custom orders. Small-batch customization and mass production supported.

Inquire	Size	P/N	Resolution	Interface	Display Type	Viewing Angle	Luminance	OD Size	Op.Temp	St.Temp	Datasheet
Inquire	1.9"	B24C19001Q-01	170 × 320	SPI	IPS	—	360 nits	25.8 × 49.72 × 1.43	-10 to +60°C	-20 to +70°C	PDF ↓
Inquire	2.15"	B26C22005Q-01	204 × 700	QSPI	IPS	—	800 nits	17.94 × 54.48 × 1.60	-20 to +70°C	-30 to +80°C	PDF ↓
Inquire	2.2"	B25C22004Q-01	200 × 480	QSPI	IPS	—	280 nits	23.82 × 57.39 × 1.96	-10 to +60°C	-20 to +70°C	PDF ↓
Inquire	2.86"	B26C28052Q-01	376 × 960	RGB	IPS	—	300 nits	28.71 × 76.6 × 2.1	-20 to +60°C	-30 to +70°C	PDF ↓
Inquire	3.4"	B26C34002Q-01	180 × 640	RGB	IPS	—	300 nits	25.72 × 88.83 × 1.58	-20 to +70°C	-30 to +80°C	—
Inquire	3.71"	B22C37002Q-01	260 × 960	RGB	IPS	—	300 nits	25.3 × 98.89 × 1.65	-20 to +70°C	-30 to +80°C	PDF ↓
Inquire	3.99"	B22C40286Q-01-C	400 × 960	RGB	IPS	—	300 nits	50.65 × 146.0 × 5.05(TLCM) 41.4 × 102.15 × 2.7(LCM)	-20 to +60°C	-30 to +80°C	—
Inquire	4.58"	B22C45193Q-01	320 × 960	mipi	IPS	—	300 nits	41.57 × 118.8 × 2.5	-20 to +70°C	-30 to +80°C	PDF ↓
Inquire	4.58"	B22C45194Q-01	320 × 960	RGB	IPS	—	300 nits	41.57 × 118.8 × 2.5	-20 to +70°C	-30 to +80°C	PDF ↓
Inquire	6.1"	B25C61001N-01-C	280 × 1424	MIPI	IPS	—	300 nits	43.5 × 178.0 × 6.32(TLCM) 36.39 × 136.86 × 4.35(LCM)	-10 to +60°C	-20 to +70°C	PDF ↓
Inquire	6.75"	B22C70945Q-01-C	480 × 1280	MIPI	IPS	—	400 nits	78.69 × 207.13 × 6.30(TLCM) 66.02 × 171.69 × 4.2(LCM)	-10 to +60°C	-20 to +70°C	PDF ↓
Inquire	6.75"	B25C70966N-01	480 × 1280	MIPI	IPS	—	500 nits	66.02 × 171.69 × 4.27MM	-20 to +70°C	-30 to +80°C	PDF ↓
Inquire	6.75"	B25C70968N-01	480 × 1280	MIPI	IPS	—	420 nits	66.02 × 171.69 × 4.20MM	-20 to +70°C	-30 to +80°C	PDF ↓
Inquire	6.75"	B26C70982N-01	480 × 1280	MIPI	IPS	—	420 nits	66.02 × 171.69 × 4.20MM	-20 to +70°C	-30 to +80°C	—
Inquire	8.8"	B26C88001N-01	480 × 1920	MIPI	IPS	—	1500 nits	64.1 × 231.1 × 4.65MM	-20 to +70°C	-30 to +80°C	—
