B26C22005Q-01 – 2.15 Inch 204x700 QSPI Bar-Type IPS TFT LCD Display

B26C22005Q-01 is a 2.15-inch IPS TFT LCD display with 204 x 700 resolution and a QSPI panel interface. The specified brightness is 800 nits. Touch panel support is optional.

B26C22005Q-01 – 2.15 Inch 204x700 QSPI Bar-Type IPS TFT LCD Display

Storage Temperature

-30 C to +80 C

Operating Temperature

-20 C to +70 C
Interface

QSPI

PIN

16
Brightness (nits)

800

Active Area (mm)

15.3 x 52.42
Outline Dimension (mm)

17.94 x 54.48 x 1.60

Resolution

204 x 700
Viewing Angle

IPS

Touch Panel

Optional
Model No

B26C22005Q-01

Shape

Bar
Size

2.15 inch

Technical Specifications

Size	2.15 inch
Shape	Bar
Model No	B26C22005Q-01
Touch Panel	Optional
Display Type	IPS
Resolution	204 x 700
Outline Dimension (mm)	17.94 x 54.48 x 1.60
Active Area (mm)	15.3 x 52.42
Brightness (nits)	800
PIN	16
Interface	QSPI
Operating Temperature	-20 C to +70 C
Storage Temperature	-30 C to +80 C

Key Features

B26C22005Q-01 is a 2.15-inch IPS TFT LCD display with 204 x 700 resolution and a QSPI panel interface. The specified brightness is 800 nits. Touch panel support is optional.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices

Customization Options

Display size, resolution and brightness tailored to your project
Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
Optional touch: resistive or capacitive (full lamination)
Custom cover glass, frame and structural design
Driver IC and backlight customization for special requirements
No MOQ for custom orders. Small-batch customization and mass production supported.

Dimensions

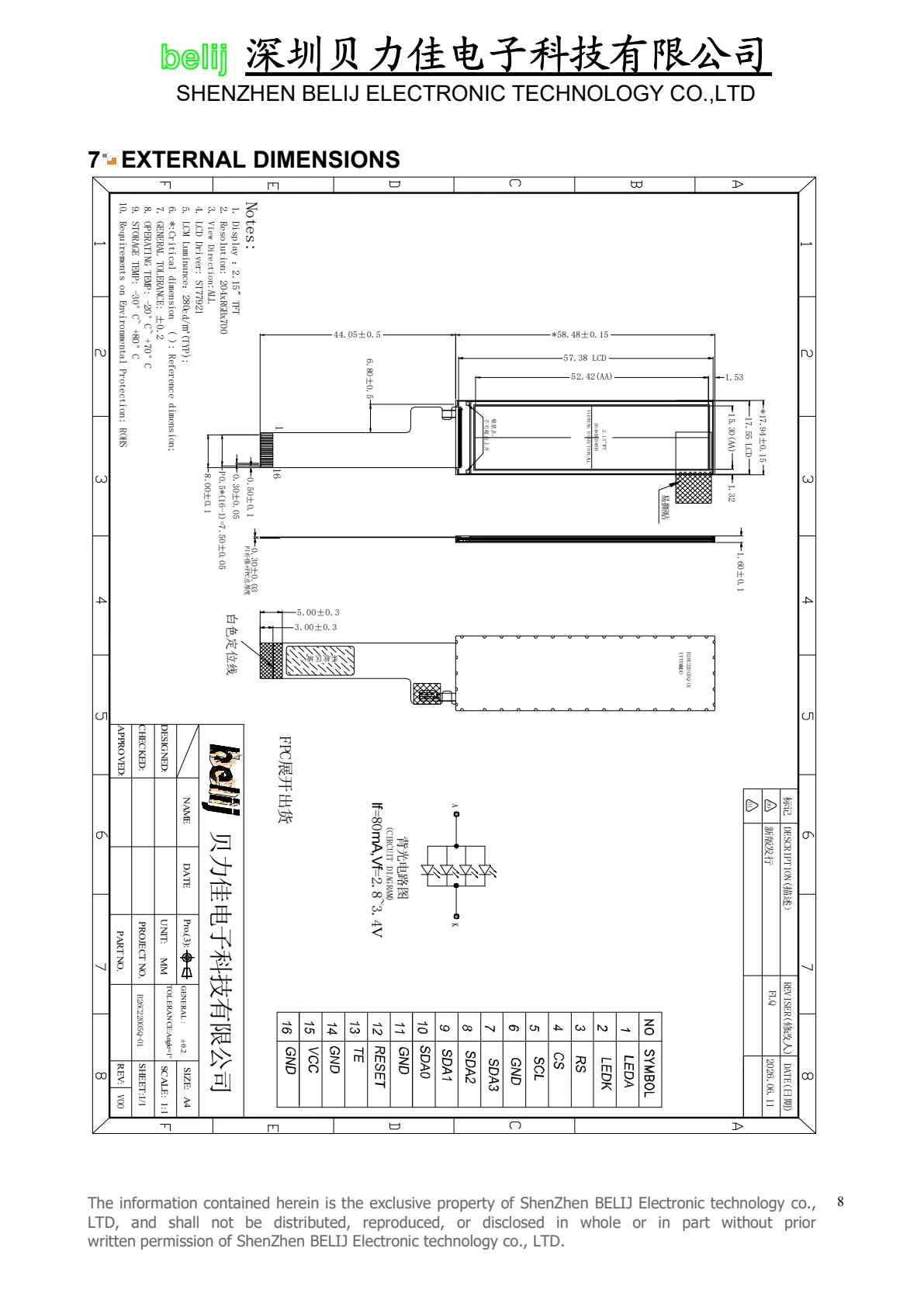

B26C22005Q-01 dimensional drawing from datasheet

No Substitution. As Approved.

Datasheet ↓Get a Free Quote →Customization Guide →
