B25C24040Q-01-C – 2.4 Inch 240x320 MCU High-Brightness IPS TFT LCD Display with Capacitive Touch
B25C24040Q-01-C display
B25C24040Q-01-C display

B25C24040Q-01-C is a 2.4-inch IPS TFT LCD display with 240 x 320 resolution and a MCU panel interface. The specified brightness is 1000 nits. The module includes capacitive touch.

B25C24040Q-01-C – 2.4 Inch 240x320 MCU High-Brightness IPS TFT LCD Display with Capacitive Touch
Share
Product description
  • Storage Temperature
    -30 C to +80 C
    Operating Temperature
    -20 C to +70 C
  • Interface
    MCU
    PIN
    28
  • Brightness (nits)
    1000
    Active Area (mm)
    36.72 x 48.96
  • Outline Dimension (mm)
    47.72 x 65.86 x 3.17
    Resolution
    240 x 320
  • Viewing Angle
    IPS
    Touch Panel
    CTP
  • Model No
    B25C24040Q-01-C
    Size
    2.4 inch

Technical Specifications

Size2.4 inch
Model NoB25C24040Q-01-C
Touch PanelCTP
Display TypeIPS
Resolution240 x 320
Outline Dimension (mm)47.72 x 65.86 x 3.17
Active Area (mm)36.72 x 48.96
Brightness (nits)1000
PIN28
InterfaceMCU
Operating Temperature-20 C to +70 C
Storage Temperature-30 C to +80 C

Key Features

B25C24040Q-01-C is a 2.4-inch IPS TFT LCD display with 240 x 320 resolution and a MCU panel interface. The specified brightness is 1000 nits. The module includes capacitive touch.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
BELIJ display application scenarios

Customization Options

  • Display size, resolution and brightness tailored to your project
  • Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
  • Optional touch: resistive or capacitive (full lamination)
  • Custom cover glass, frame and structural design
  • Driver IC and backlight customization for special requirements
  • No MOQ for custom orders. Small-batch customization and mass production supported.

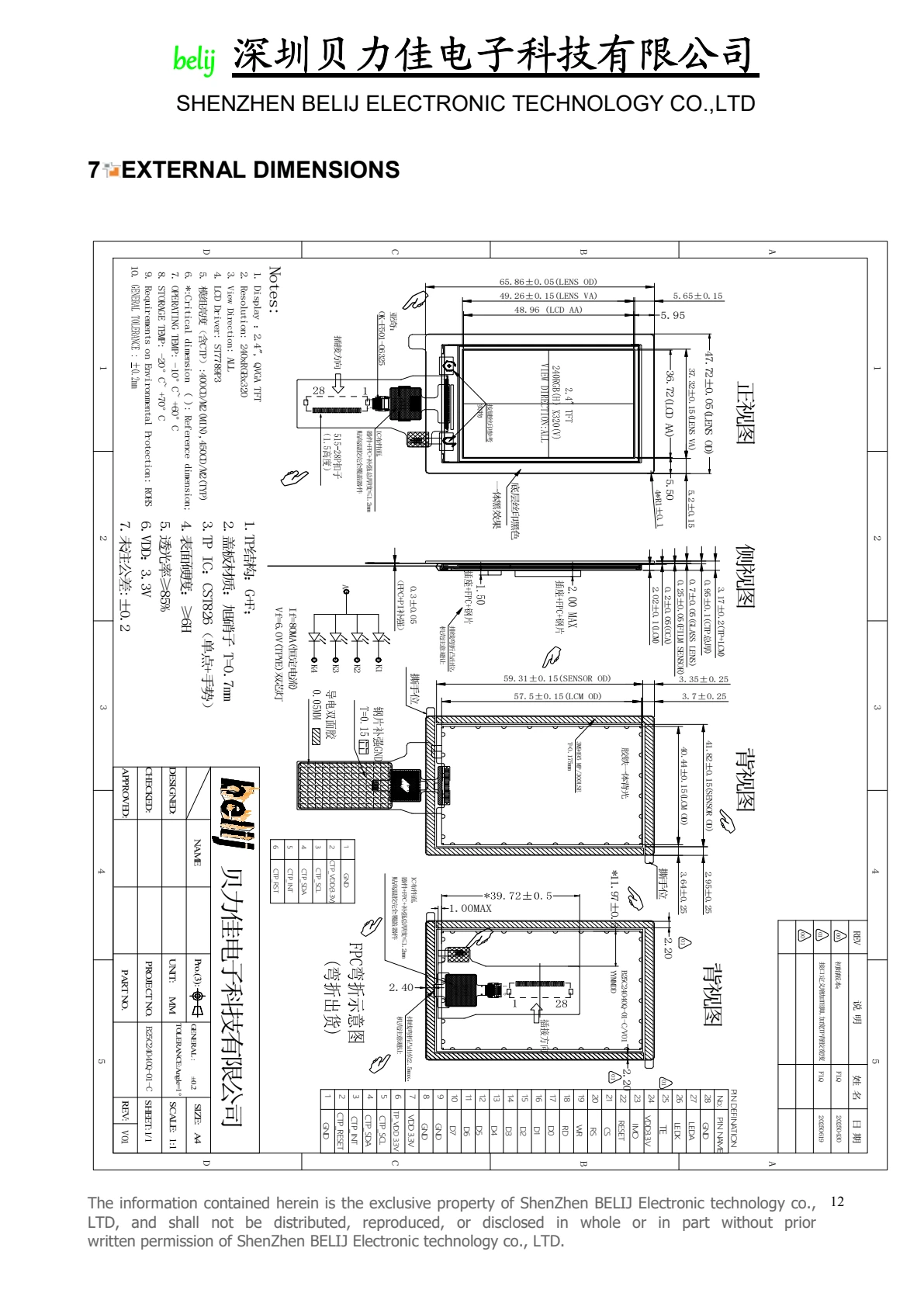

Dimensions

B25C24040Q-01-C dimensional drawing from datasheet

No Substitution. As Approved.
