B26C55262Q-01 – 5.5 Inch 1080x1920 MIPI High-Brightness IPS TFT LCD Display
B26C55262Q-01 display
B26C55262Q-01 display

B26C55262Q-01 is a 5.5-inch IPS TFT LCD display with 1080 x 1920 resolution and a MIPI panel interface. The specified brightness is 1000 nits. Touch panel support is optional.

B26C55262Q-01 – 5.5 Inch 1080x1920 MIPI High-Brightness IPS TFT LCD Display
Share
Product description
  • Storage Temperature
    -30 C to +80 C
    Operating Temperature
    -20 C to +70 C
  • Interface
    MIPI
    PIN
    40
  • Brightness (nits)
    1000
    Active Area (mm)
    68.04 x 120.96
  • Outline Dimension (mm)
    70.24 x 128.10 x 1.52
    Resolution
    1080 x 1920
  • Viewing Angle
    IPS
    Touch Panel
    Optional
  • Model No
    B26C55262Q-01
    Size
    5.5 inch

Technical Specifications

Size5.5 inch
Model NoB26C55262Q-01
Touch PanelOptional
Display TypeIPS
Resolution1080 x 1920
Outline Dimension (mm)70.24 x 128.10 x 1.52
Active Area (mm)68.04 x 120.96
Brightness (nits)1000
PIN40
InterfaceMIPI
Operating Temperature-20 C to +70 C
Storage Temperature-30 C to +80 C

Key Features

B26C55262Q-01 is a 5.5-inch IPS TFT LCD display with 1080 x 1920 resolution and a MIPI panel interface. The specified brightness is 1000 nits. Touch panel support is optional.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
BELIJ display application scenarios

Customization Options

  • Display size, resolution and brightness tailored to your project
  • Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
  • Optional touch: resistive or capacitive (full lamination)
  • Custom cover glass, frame and structural design
  • Driver IC and backlight customization for special requirements
  • No MOQ for custom orders. Small-batch customization and mass production supported.

Dimensions

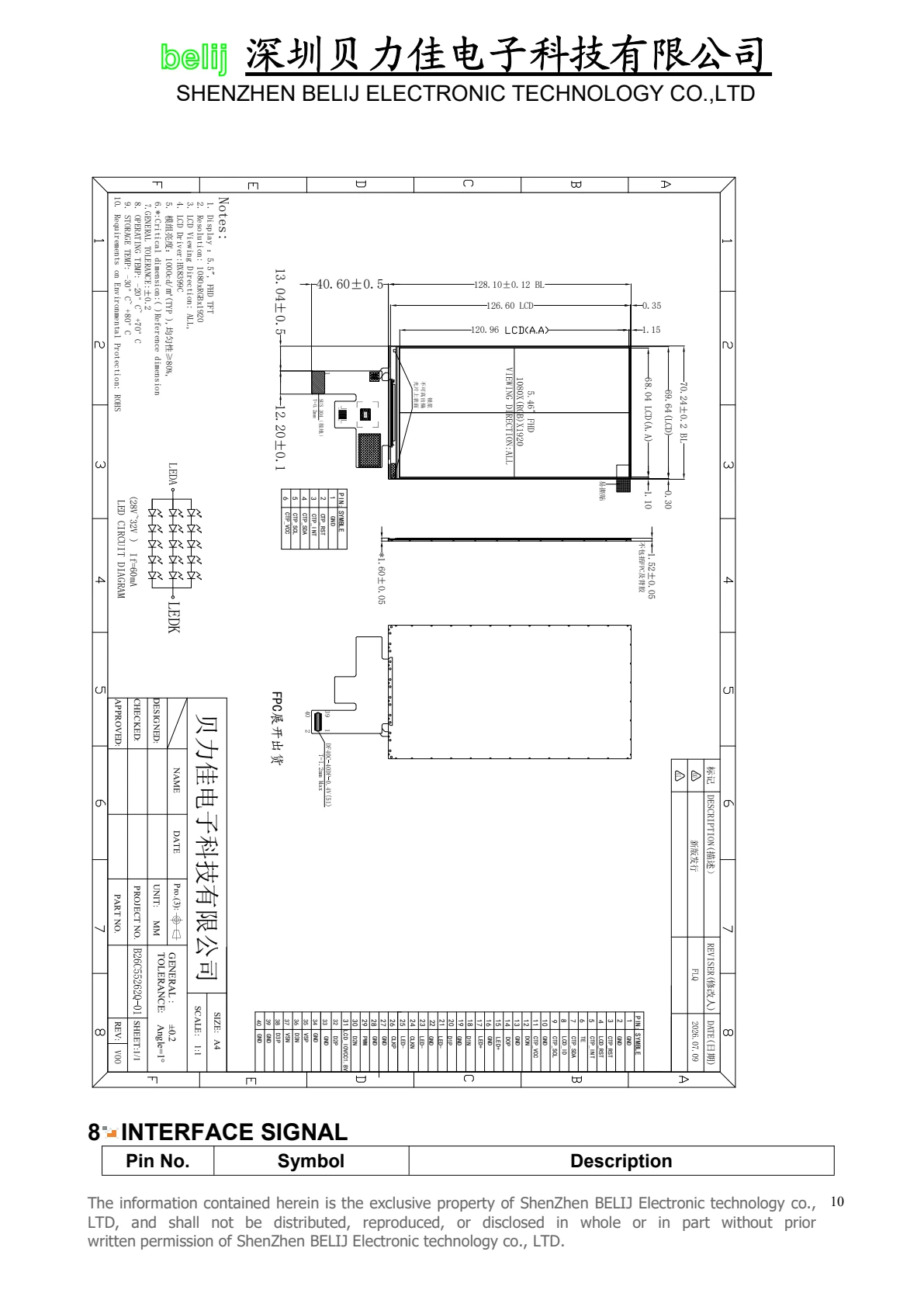

B26C55262Q-01 dimensional drawing from datasheet

No Substitution. As Approved.
