B25C22004Q-01 – 2.2 Inch 200x480 QSPI Bar-Type IPS TFT LCD Display
B25C22004Q-01 is a 2.2-inch IPS TFT LCD display with 200 x 480 resolution and a QSPI panel interface. The specified brightness is 280 nits. Touch panel support is optional.
Product description
-
Storage Temperature-20 C to +70 COperating Temperature-10 C to +60 C
-
InterfaceQSPIPIN20
-
Brightness (nits)280Active Area (mm)21.72 x 52.42
-
Outline Dimension (mm)23.82 x 57.39 x 1.96Resolution200 x 480
-
Viewing AngleIPSTouch PanelOptional
-
Model NoB25C22004Q-01ShapeBar
-
Size2.2 inch
Technical Specifications
| Size | 2.2 inch |
|---|---|
| Shape | Bar |
| Model No | B25C22004Q-01 |
| Touch Panel | Optional |
| Display Type | IPS |
| Resolution | 200 x 480 |
| Outline Dimension (mm) | 23.82 x 57.39 x 1.96 |
| Active Area (mm) | 21.72 x 52.42 |
| Brightness (nits) | 280 |
| PIN | 20 |
| Interface | QSPI |
| Operating Temperature | -10 C to +60 C |
| Storage Temperature | -20 C to +70 C |
Key Features
B25C22004Q-01 is a 2.2-inch IPS TFT LCD display with 200 x 480 resolution and a QSPI panel interface. The specified brightness is 280 nits. Touch panel support is optional.
Applications
Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
Customization Options
- Display size, resolution and brightness tailored to your project
- Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
- Optional touch: resistive or capacitive (full lamination)
- Custom cover glass, frame and structural design
- Driver IC and backlight customization for special requirements
- No MOQ for custom orders. Small-batch customization and mass production supported.

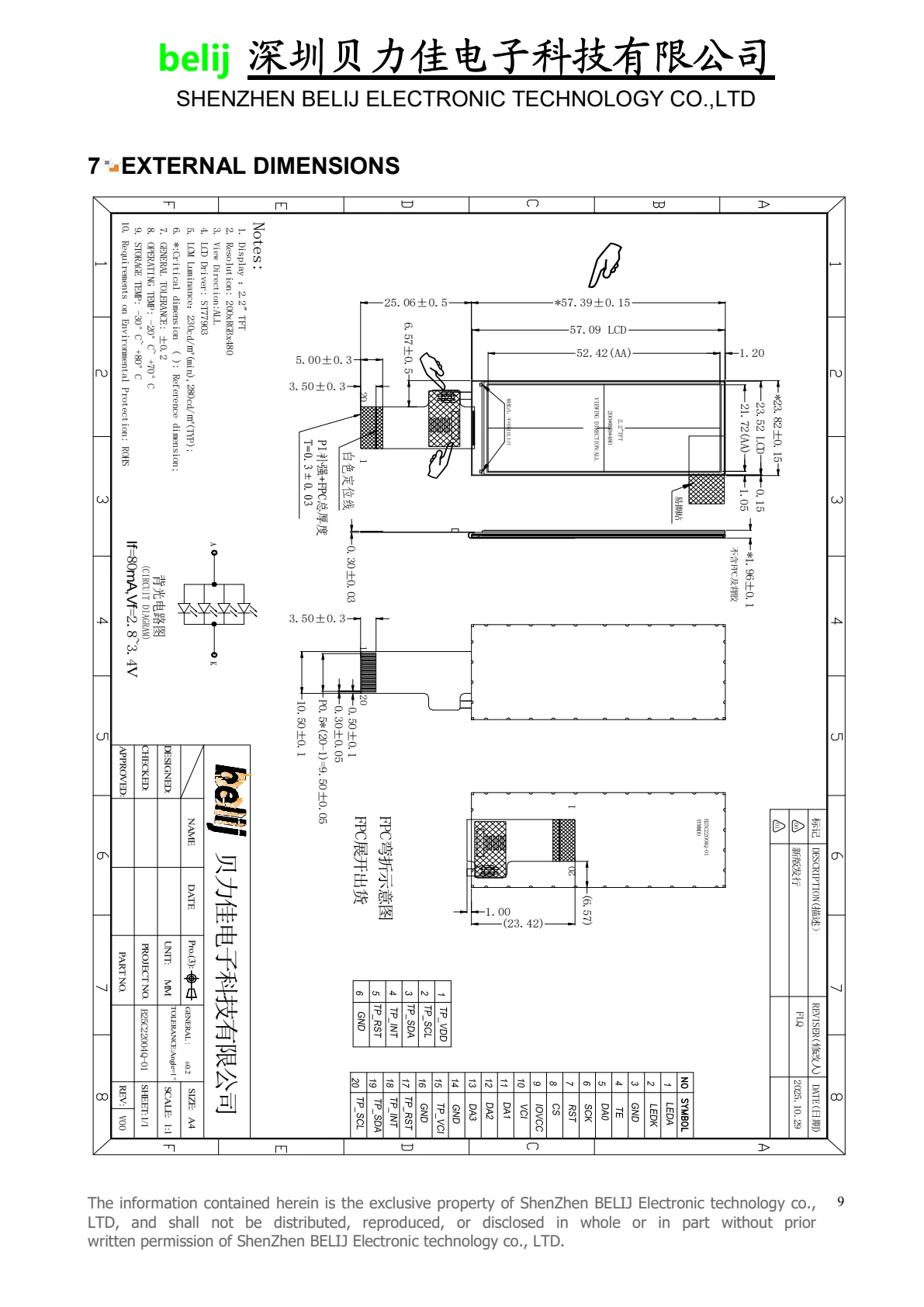

Dimensions
No Substitution. As Approved.
