B26C28052Q-01 – 2.86 Inch 376x960 RGB Bar-Type IPS TFT LCD Display
B26C28052Q-01 is a 2.86-inch IPS TFT LCD display with 376 x 960 resolution and a RGB panel interface. The specified brightness is 300 nits. Touch panel support is optional.
Product description
-
Storage Temperature-30 C to +70 COperating Temperature-20 C to +60 C
-
InterfaceRGBPIN40
-
Brightness (nits)300Active Area (mm)26.51 x 67.68
-
Outline Dimension (mm)28.71 x 76.6 x 2.1Resolution376 x 960
-
Viewing AngleIPSTouch PanelOptional
-
Model NoB26C28052Q-01ShapeBar
-
Size2.86 inch
Technical Specifications
| Size | 2.86 inch |
|---|---|
| Shape | Bar |
| Model No | B26C28052Q-01 |
| Touch Panel | Optional |
| Display Type | IPS |
| Resolution | 376 x 960 |
| Outline Dimension (mm) | 28.71 x 76.6 x 2.1 |
| Active Area (mm) | 26.51 x 67.68 |
| Brightness (nits) | 300 |
| PIN | 40 |
| Interface | RGB |
| Operating Temperature | -20 C to +60 C |
| Storage Temperature | -30 C to +70 C |
Key Features
B26C28052Q-01 is a 2.86-inch IPS TFT LCD display with 376 x 960 resolution and a RGB panel interface. The specified brightness is 300 nits. Touch panel support is optional.
Applications
Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
Customization Options
- Display size, resolution and brightness tailored to your project
- Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
- Optional touch: resistive or capacitive (full lamination)
- Custom cover glass, frame and structural design
- Driver IC and backlight customization for special requirements
- No MOQ for custom orders. Small-batch customization and mass production supported.

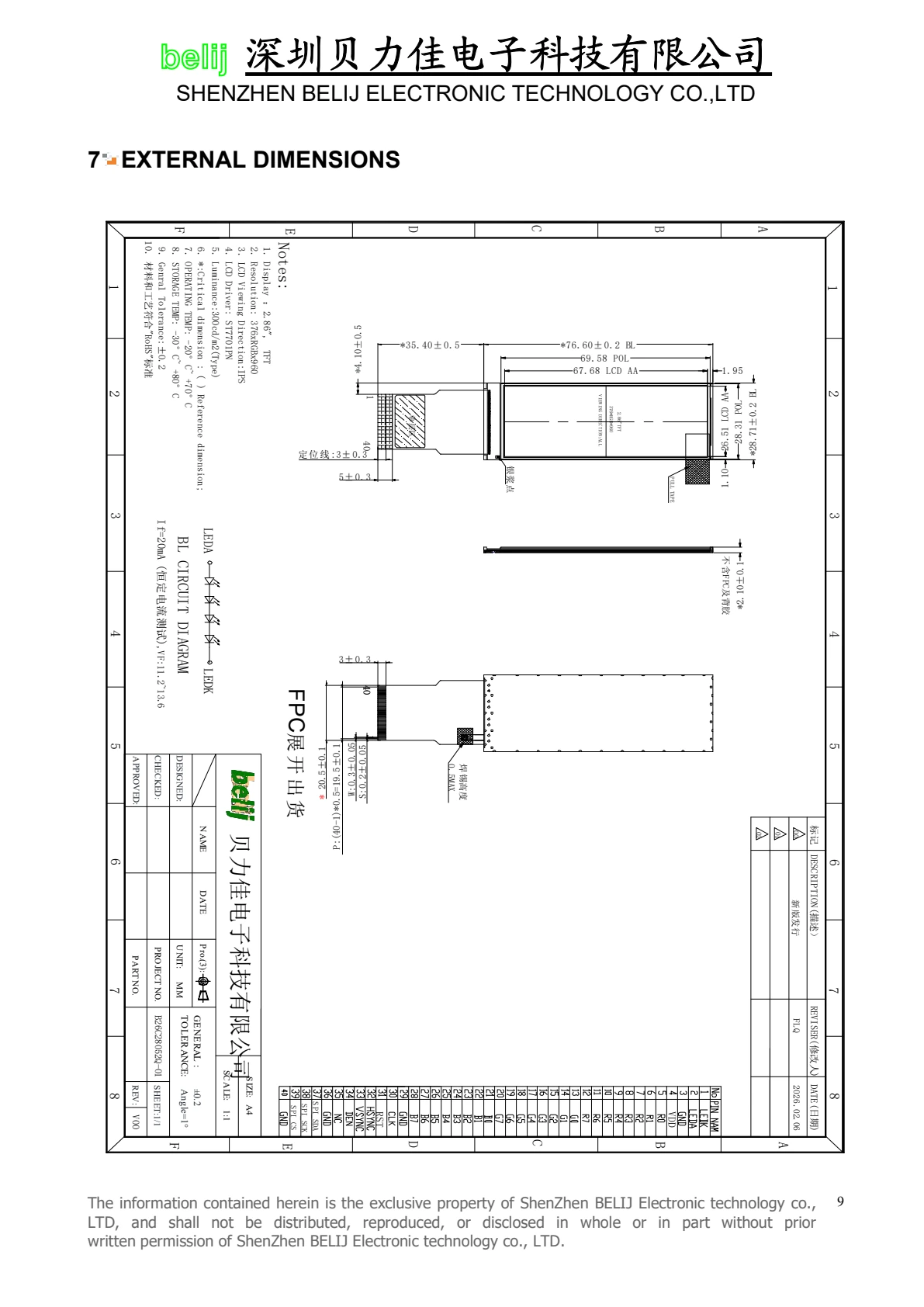

Dimensions
No Substitution. As Approved.
