B24C19001Q-01 – 1.9 Inch 170x320 SPI Bar-Type IPS TFT LCD Display
B24C19001Q-01 is a 1.9-inch IPS TFT LCD display with 170 x 320 resolution and a SPI panel interface. The specified brightness is 360 nits. Touch panel support is optional.
Product description
-
Storage Temperature-20 C to +70 COperating Temperature-10 C to +60 C
-
InterfaceSPIPIN12
-
Brightness (nits)360Active Area (mm)22.7 x 42.72
-
Outline Dimension (mm)25.8 x 49.72 x 1.43Resolution170 x 320
-
Viewing AngleIPSTouch PanelOptional
-
Model NoB24C19001Q-01ShapeBar
-
Size1.9 inch
Technical Specifications
| Size | 1.9 inch |
|---|---|
| Shape | Bar |
| Model No | B24C19001Q-01 |
| Touch Panel | Optional |
| Display Type | IPS |
| Resolution | 170 x 320 |
| Outline Dimension (mm) | 25.8 x 49.72 x 1.43 |
| Active Area (mm) | 22.7 x 42.72 |
| Brightness (nits) | 360 |
| PIN | 12 |
| Interface | SPI |
| Operating Temperature | -10 C to +60 C |
| Storage Temperature | -20 C to +70 C |
Key Features
B24C19001Q-01 is a 1.9-inch IPS TFT LCD display with 170 x 320 resolution and a SPI panel interface. The specified brightness is 360 nits. Touch panel support is optional.
Applications
Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
Customization Options
- Display size, resolution and brightness tailored to your project
- Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
- Optional touch: resistive or capacitive (full lamination)
- Custom cover glass, frame and structural design
- Driver IC and backlight customization for special requirements
- No MOQ for custom orders. Small-batch customization and mass production supported.

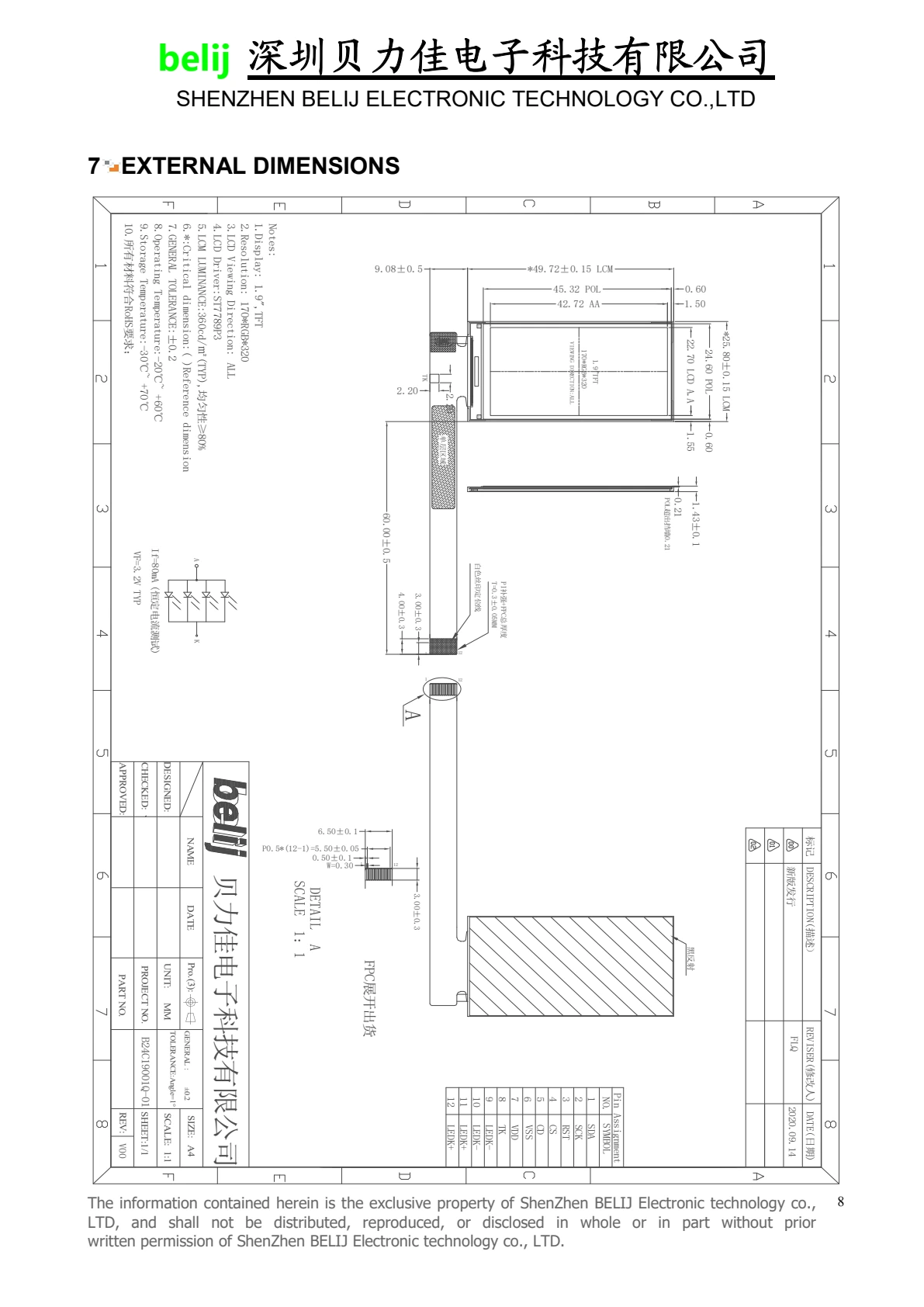

Dimensions
No Substitution. As Approved.
