B22C28038Q-01 – 2.76 Inch 480x480 RGB Round IPS TFT LCD Display

B22C28038Q-01 is a 2.76-inch IPS TFT LCD display with 480 x 480 resolution and a RGB panel interface. The specified brightness is 300 nits. Touch panel support is optional.

B22C28038Q-01 – 2.76 Inch 480x480 RGB Round IPS TFT LCD Display

Storage Temperature

-30 C to +80 C

Operating Temperature

-20 C to +70 C
Interface

RGB

PIN

40
Brightness (nits)

300

Active Area (mm)

70.13 x 70.13
Outline Dimension (mm)

73.03 x 76.48 x 2.3

Resolution

480 x 480
Viewing Angle

IPS

Touch Panel

Optional
Model No

B22C28038Q-01

Shape

Round
Size

2.76 inch

Technical Specifications

Size	2.76 inch
Shape	Round
Model No	B22C28038Q-01
Touch Panel	Optional
Display Type	IPS
Resolution	480 x 480
Outline Dimension (mm)	73.03 x 76.48 x 2.3
Active Area (mm)	70.13 x 70.13
Brightness (nits)	300
PIN	40
Interface	RGB
Operating Temperature	-20 C to +70 C
Storage Temperature	-30 C to +80 C

Key Features

B22C28038Q-01 is a 2.76-inch IPS TFT LCD display with 480 x 480 resolution and a RGB panel interface. The specified brightness is 300 nits. Touch panel support is optional.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices

Customization Options

Display size, resolution and brightness tailored to your project
Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
Optional touch: resistive or capacitive (full lamination)
Custom cover glass, frame and structural design
Driver IC and backlight customization for special requirements
No MOQ for custom orders. Small-batch customization and mass production supported.

Dimensions

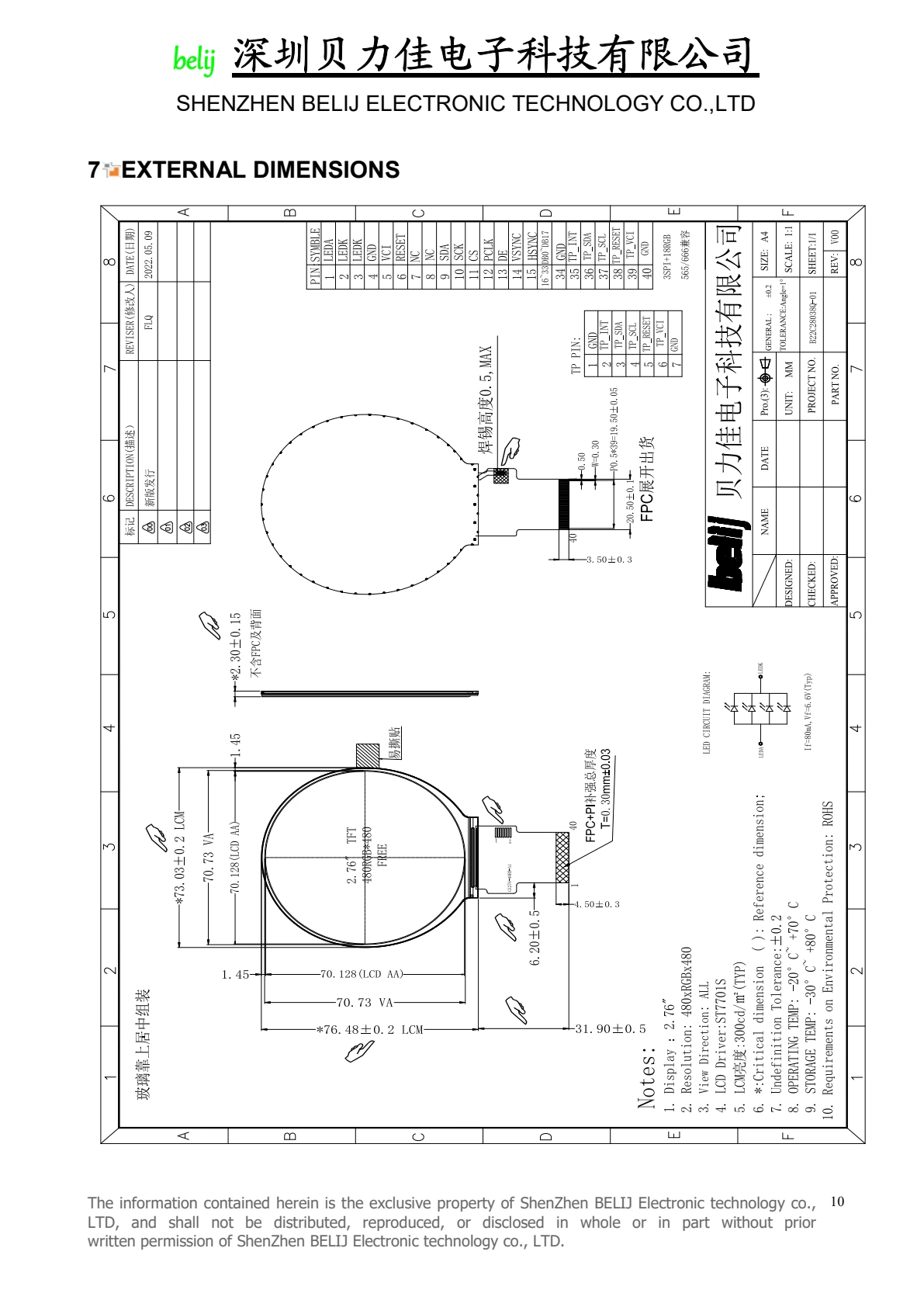

B22C28038Q-01 dimensional drawing from datasheet

No Substitution. As Approved.
