B19C50641N-03 – 5.0 Inch 800x480 RGB High-Brightness IPS TFT LCD Display
B19C50641N-03 is a 5.0-inch IPS TFT LCD display with 800 x 480 resolution and a RGB panel interface. The specified brightness is 1000 nits. Touch panel support is optional.
Product description
-
Storage Temperature-30 C to +80 COperating Temperature-20 C to +70 C
-
InterfaceRGBPIN40
-
Brightness (nits)1000Active Area (mm)108 x 64.8
-
Outline Dimension (mm)120.8 x 75.8 x 2.85Resolution800 x 480
-
Viewing AngleIPSTouch PanelOptional
-
Model NoB19C50641N-03Size5.0 inch
Technical Specifications
| Size | 5.0 inch |
|---|---|
| Model No | B19C50641N-03 |
| Touch Panel | Optional |
| Display Type | IPS |
| Resolution | 800 x 480 |
| Outline Dimension (mm) | 120.8 x 75.8 x 2.85 |
| Active Area (mm) | 108 x 64.8 |
| Brightness (nits) | 1000 |
| PIN | 40 |
| Interface | RGB |
| Operating Temperature | -20 C to +70 C |
| Storage Temperature | -30 C to +80 C |
Key Features
B19C50641N-03 is a 5.0-inch IPS TFT LCD display with 800 x 480 resolution and a RGB panel interface. The specified brightness is 1000 nits. Touch panel support is optional.
Applications
Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
Customization Options
- Display size, resolution and brightness tailored to your project
- Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
- Optional touch: resistive or capacitive (full lamination)
- Custom cover glass, frame and structural design
- Driver IC and backlight customization for special requirements
- No MOQ for custom orders. Small-batch customization and mass production supported.

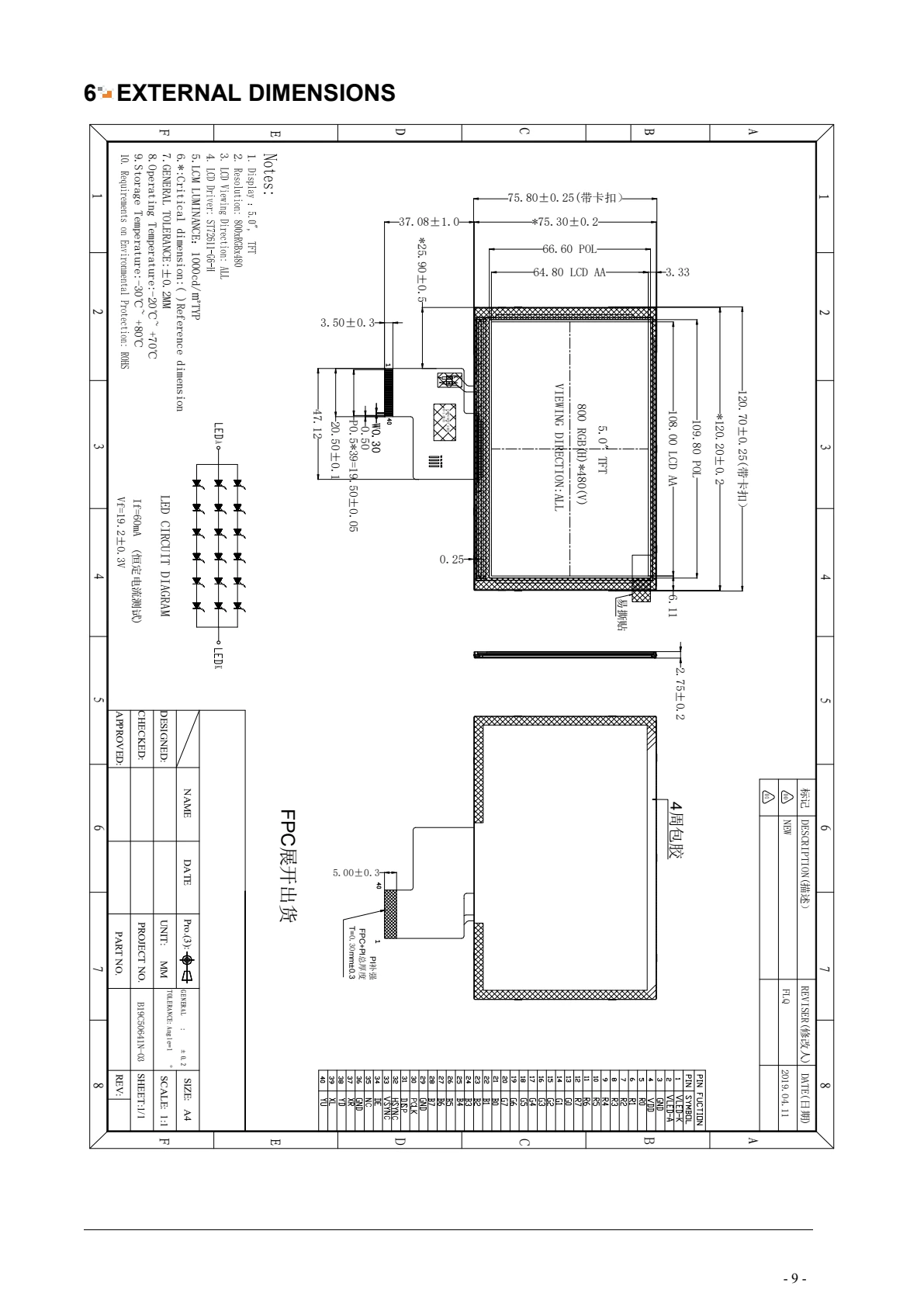

Dimensions
No Substitution. As Approved.
