B25C61001N-01-C – 6.1 Inch 280x1424 MIPI Bar-Type IPS TFT LCD Display with Capacitive Touch
No image available
No image available

B25C61001N-01-C is a 6.1-inch IPS TFT LCD display with 280 x 1424 resolution and a MIPI panel interface. The specified brightness is 300 nits. The module includes capacitive touch.

B25C61001N-01-C – 6.1 Inch 280x1424 MIPI Bar-Type IPS TFT LCD Display with Capacitive Touch
Share
Product description
  • Storage Temperature
    -20 C to +70 C
    Operating Temperature
    -10 C to +60 C
  • Interface
    MIPI
    PIN
    25
  • Brightness (nits)
    300
    Active Area (mm)
    29.99 x 152.51
  • Outline Dimension (mm)
    43.5 x 178.0 x 6.32 (TLCM) / 36.39 x 136.86 x 4.35 (LCM)
    Resolution
    280 x 1424
  • Viewing Angle
    IPS
    Touch Panel
    CTP
  • Model No
    B25C61001N-01-C
    Shape
    Bar
  • Size
    6.1 inch

Technical Specifications

Size6.1 inch
ShapeBar
Model NoB25C61001N-01-C
Touch PanelCTP
Display TypeIPS
Resolution280 x 1424
Outline Dimension (mm)43.5 x 178.0 x 6.32 (TLCM) / 36.39 x 136.86 x 4.35 (LCM)
Active Area (mm)29.99 x 152.51
Brightness (nits)300
PIN25
InterfaceMIPI
Operating Temperature-10 C to +60 C
Storage Temperature-20 C to +70 C

Key Features

B25C61001N-01-C is a 6.1-inch IPS TFT LCD display with 280 x 1424 resolution and a MIPI panel interface. The specified brightness is 300 nits. The module includes capacitive touch.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
BELIJ display application scenarios

Customization Options

  • Display size, resolution and brightness tailored to your project
  • Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
  • Optional touch: resistive or capacitive (full lamination)
  • Custom cover glass, frame and structural design
  • Driver IC and backlight customization for special requirements
  • No MOQ for custom orders. Small-batch customization and mass production supported.

Dimensions

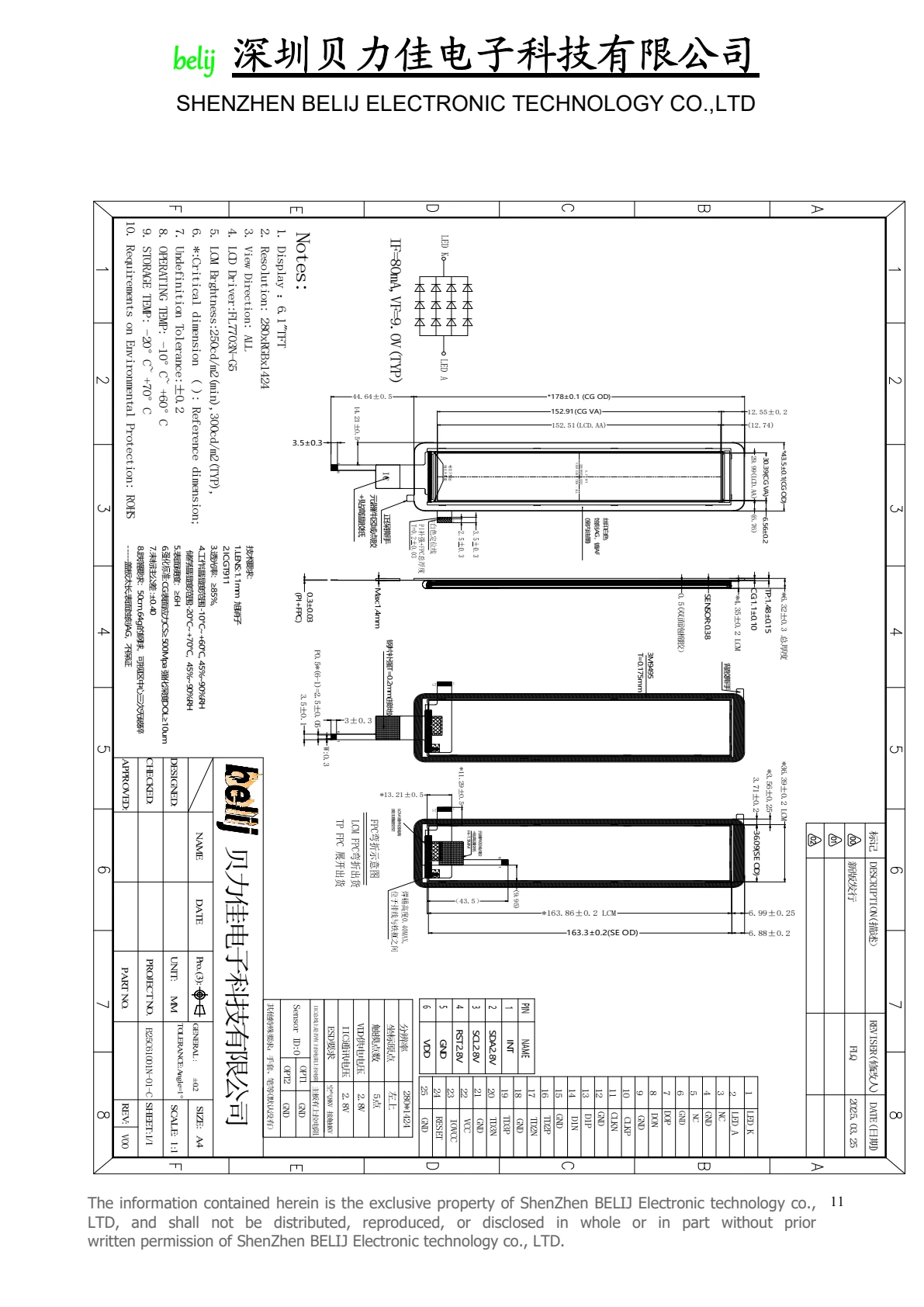

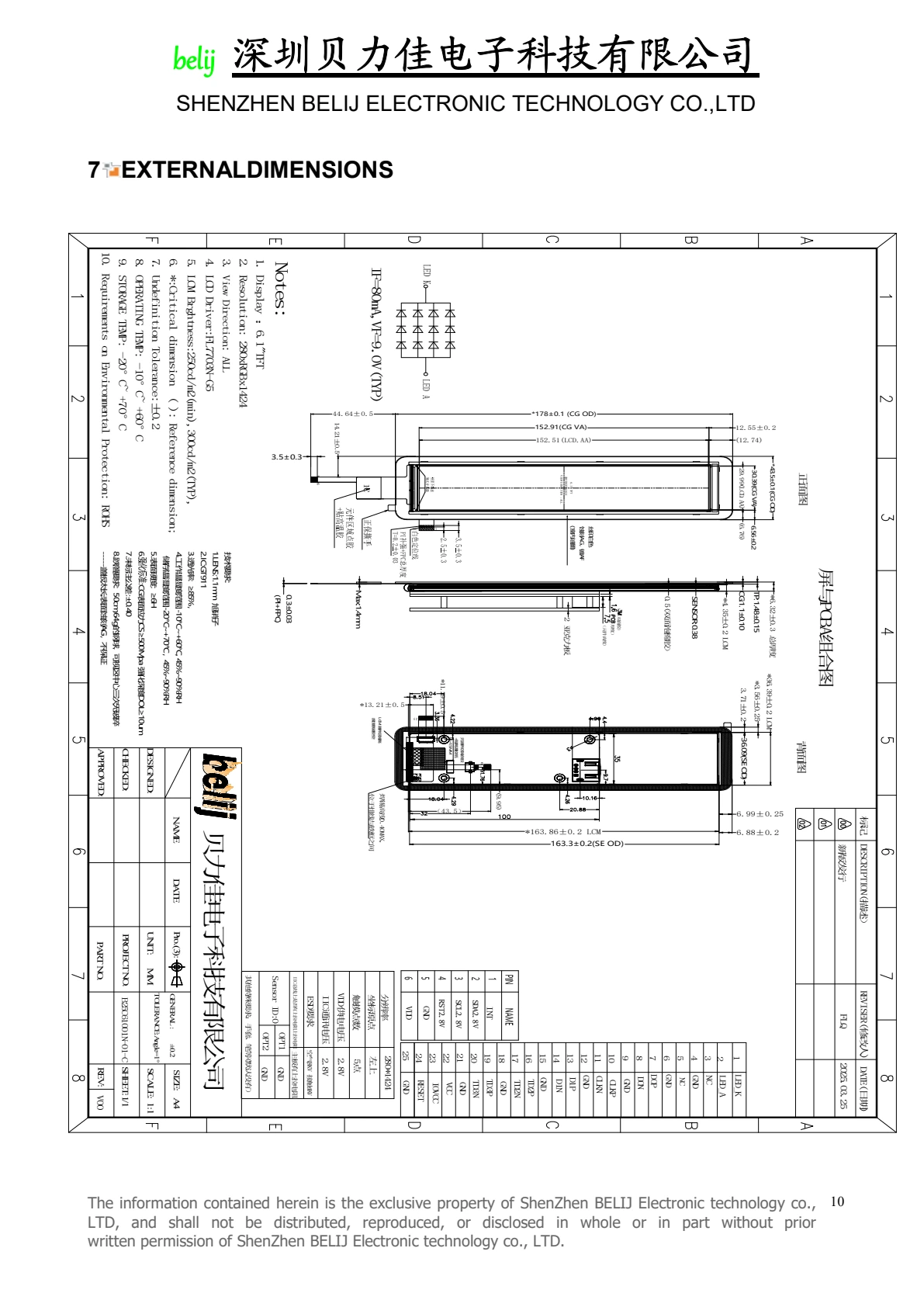

B25C61001N-01-C dimensional drawing from datasheetB25C61001N-01-C dimensional drawing from datasheet

No Substitution. As Approved.
