B25C70968N-01 – 6.75 Inch 480x1280 MIPI Bar-Type IPS TFT LCD Display
No image available
No image available

B25C70968N-01 is a 6.75-inch IPS TFT LCD display with 480 x 1280 resolution and a MIPI panel interface. The specified brightness is 420 nits. Touch panel support is optional.

B25C70968N-01 – 6.75 Inch 480x1280 MIPI Bar-Type IPS TFT LCD Display
Share
Product description
  • Storage Temperature
    -30 C to +80 C
    Operating Temperature
    -20 C to +70 C
  • Interface
    MIPI
    PIN
    40
  • Brightness (nits)
    420
    Active Area (mm)
    62.19 x 160.51
  • Outline Dimension (mm)
    66.02 x 171.69 x 4.20
    Resolution
    480 x 1280
  • Viewing Angle
    IPS
    Touch Panel
    Optional
  • Model No
    B25C70968N-01
    Shape
    Bar
  • Size
    6.75 inch

Technical Specifications

Size6.75 inch
ShapeBar
Model NoB25C70968N-01
Touch PanelOptional
Display TypeIPS
Resolution480 x 1280
Outline Dimension (mm)66.02 x 171.69 x 4.20
Active Area (mm)62.19 x 160.51
Brightness (nits)420
PIN40
InterfaceMIPI
Operating Temperature-20 C to +70 C
Storage Temperature-30 C to +80 C

Key Features

B25C70968N-01 is a 6.75-inch IPS TFT LCD display with 480 x 1280 resolution and a MIPI panel interface. The specified brightness is 420 nits. Touch panel support is optional.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
BELIJ display application scenarios

Customization Options

  • Display size, resolution and brightness tailored to your project
  • Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
  • Optional touch: resistive or capacitive (full lamination)
  • Custom cover glass, frame and structural design
  • Driver IC and backlight customization for special requirements
  • No MOQ for custom orders. Small-batch customization and mass production supported.

Dimensions

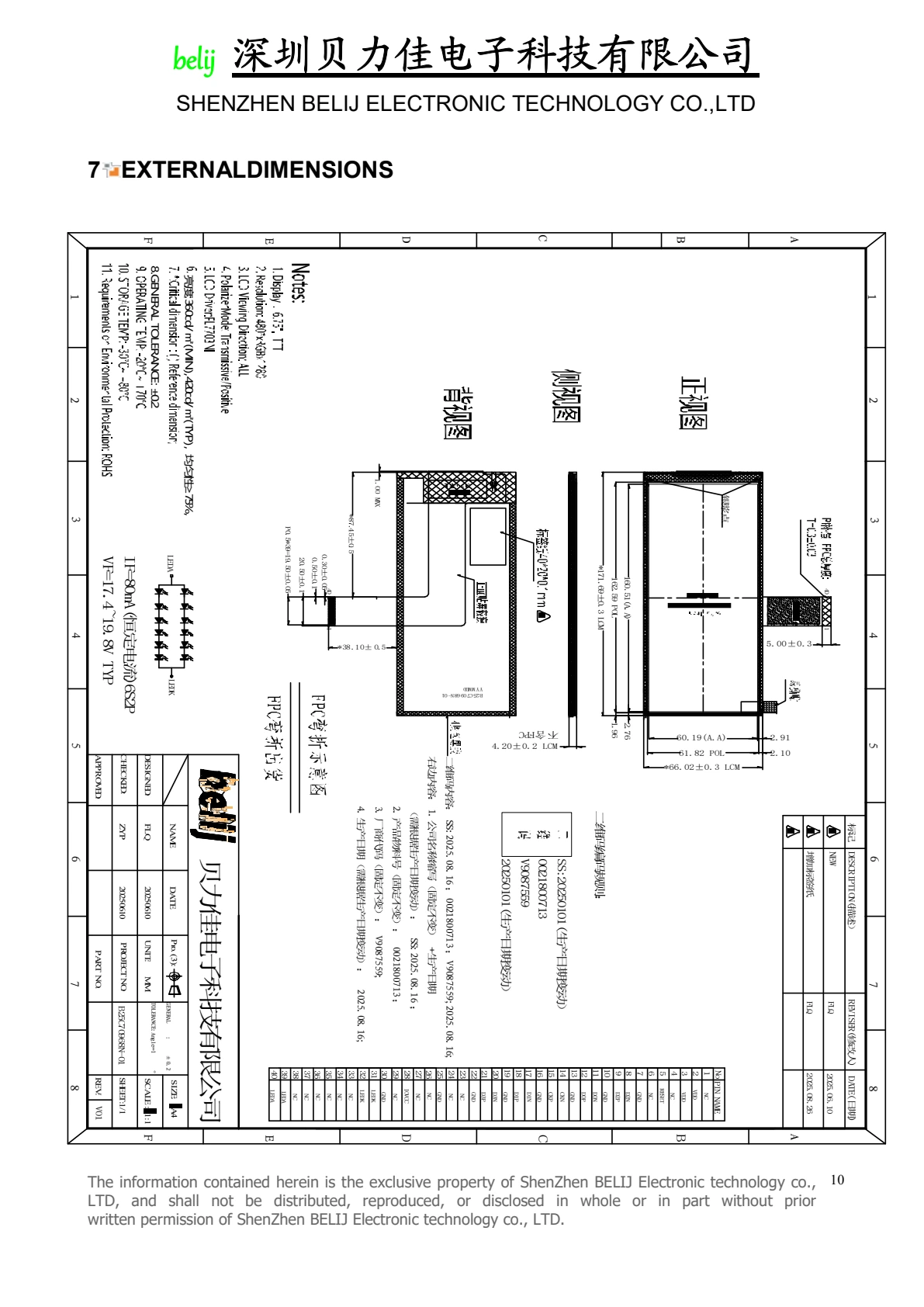

B25C70968N-01 dimensional drawing from datasheet

No Substitution. As Approved.
