B26C80072Q-01 – 8.0 Inch 1200x1920 MIPI High-Brightness IPS TFT LCD Display
B26C80072Q-01 is a 8.0-inch IPS TFT LCD display with 1200 x 1920 resolution and a MIPI panel interface. The specified brightness is 430/800 nits. Touch panel support is optional.
Product description
-
Storage Temperature-20 C to +60 COperating Temperature-10 C to +50 C
-
InterfaceMIPIPIN30
-
Brightness (nits)430/800Active Area (mm)107.64 x 172.22
-
Outline Dimension (mm)114.12 x 183.18 x 2.18Resolution1200 x 1920
-
Viewing AngleIPSTouch PanelOptional
-
Model NoB26C80072Q-01Size8.0 inch
Technical Specifications
| Size | 8.0 inch |
|---|---|
| Model No | B26C80072Q-01 |
| Touch Panel | Optional |
| Display Type | IPS |
| Resolution | 1200 x 1920 |
| Outline Dimension (mm) | 114.12 x 183.18 x 2.18 |
| Active Area (mm) | 107.64 x 172.22 |
| Brightness (nits) | 430/800 |
| PIN | 30 |
| Interface | MIPI |
| Operating Temperature | -10 C to +50 C |
| Storage Temperature | -20 C to +60 C |
Key Features
B26C80072Q-01 is a 8.0-inch IPS TFT LCD display with 1200 x 1920 resolution and a MIPI panel interface. The specified brightness is 430/800 nits. Touch panel support is optional.
Applications
Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
Customization Options
- Display size, resolution and brightness tailored to your project
- Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
- Optional touch: resistive or capacitive (full lamination)
- Custom cover glass, frame and structural design
- Driver IC and backlight customization for special requirements
- No MOQ for custom orders. Small-batch customization and mass production supported.

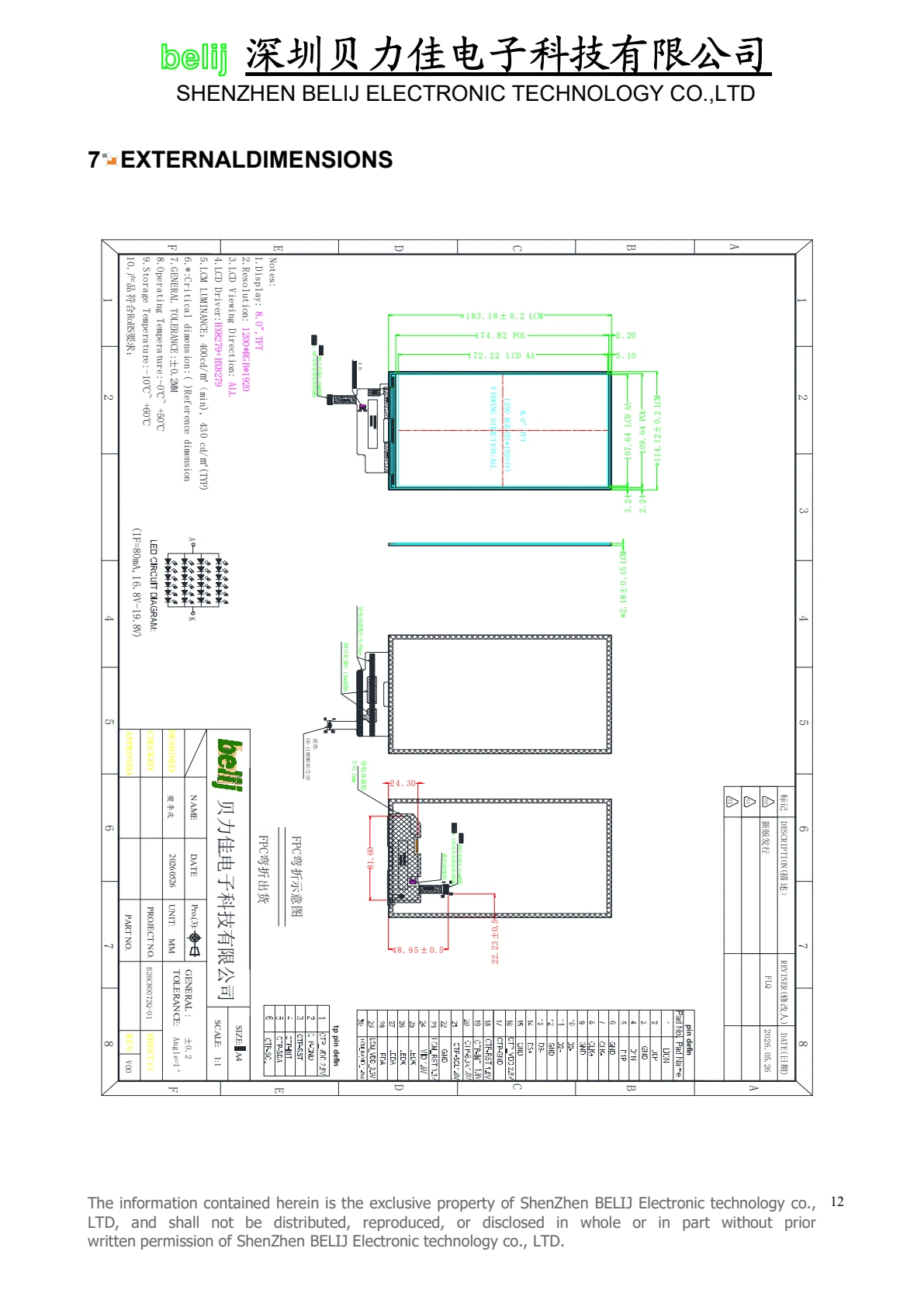

Dimensions
No Substitution. As Approved.
