B26C35073Q-01-C – 3.5 Inch 640x480 MIPI IPS TFT LCD Display with Capacitive Touch
No image available
No image available

B26C35073Q-01-C is a 3.5-inch IPS TFT LCD display with 640 x 480 resolution and a MIPI panel interface. The specified brightness is 500 nits. The module includes capacitive touch.

B26C35073Q-01-C – 3.5 Inch 640x480 MIPI IPS TFT LCD Display with Capacitive Touch
Share
Product description
  • Storage Temperature
    -30 C to +80 C
    Operating Temperature
    -20 C to +70 C
  • Interface
    MIPI
    PIN
    24
  • Brightness (nits)
    500
    Active Area (mm)
    70.08 x 52.56
  • Outline Dimension (mm)
    81.4 x 67.9 x 4.38 (TLCM) / 78.0 x 64.5 x 2.5 (LCM)
    Resolution
    640 x 480
  • Viewing Angle
    IPS
    Touch Panel
    CTP
  • Model No
    B26C35073Q-01-C
    Size
    3.5 inch

Technical Specifications

Size3.5 inch
Model NoB26C35073Q-01-C
Touch PanelCTP
Display TypeIPS
Resolution640 x 480
Outline Dimension (mm)81.4 x 67.9 x 4.38 (TLCM) / 78.0 x 64.5 x 2.5 (LCM)
Active Area (mm)70.08 x 52.56
Brightness (nits)500
PIN24
InterfaceMIPI
Operating Temperature-20 C to +70 C
Storage Temperature-30 C to +80 C

Key Features

B26C35073Q-01-C is a 3.5-inch IPS TFT LCD display with 640 x 480 resolution and a MIPI panel interface. The specified brightness is 500 nits. The module includes capacitive touch.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
BELIJ display application scenarios

Customization Options

  • Display size, resolution and brightness tailored to your project
  • Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
  • Optional touch: resistive or capacitive (full lamination)
  • Custom cover glass, frame and structural design
  • Driver IC and backlight customization for special requirements
  • No MOQ for custom orders. Small-batch customization and mass production supported.

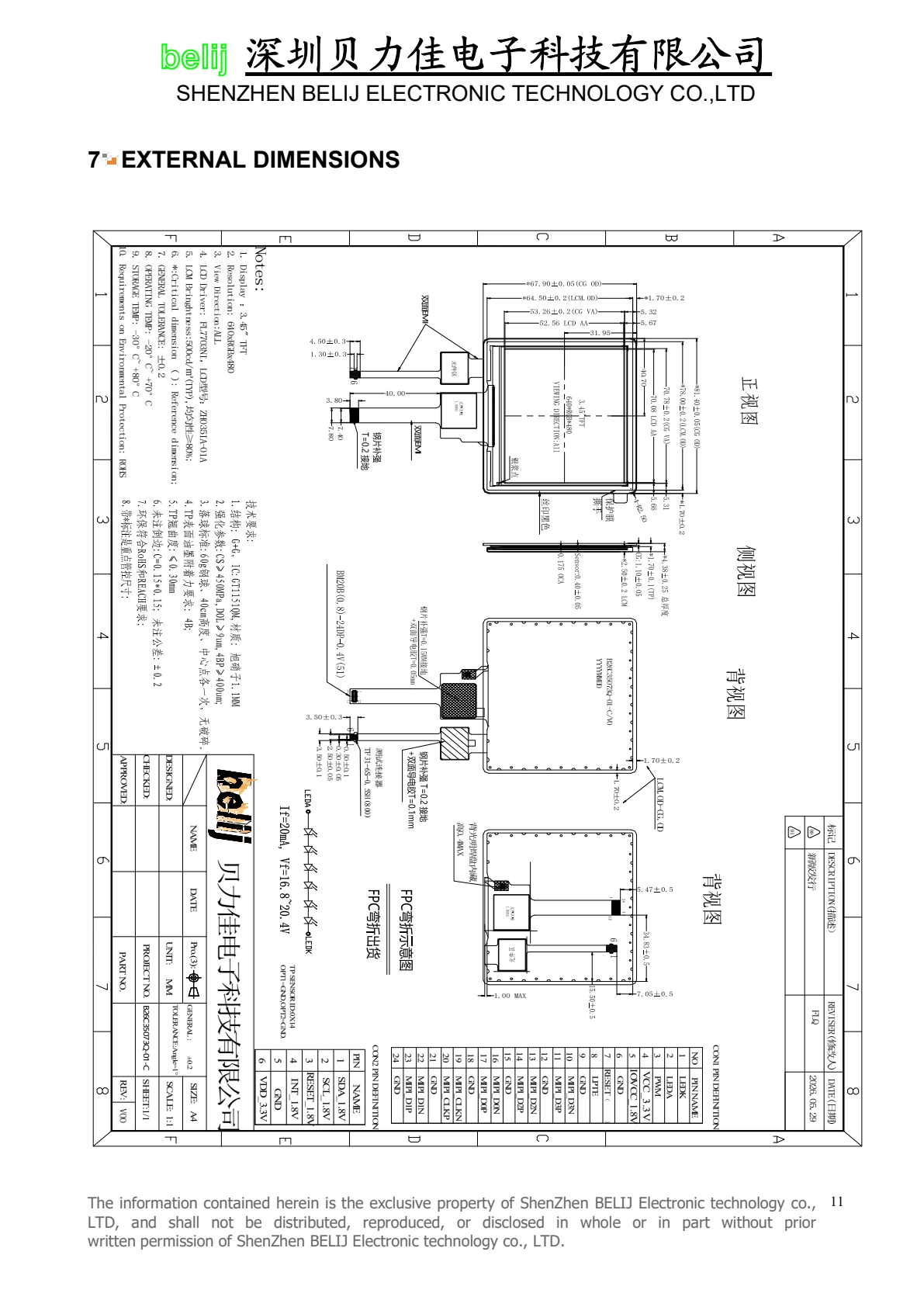

Dimensions

B26C35073Q-01-C dimensional drawing from datasheet

No Substitution. As Approved.
