B21C21001Q-01 – 2.1 Inch 480x480 RGB Round IPS TFT LCD Display
No image available
No image available

B21C21001Q-01 is a 2.1-inch IPS TFT LCD display with 480 x 480 resolution and a RGB panel interface. The specified brightness is 360 nits. Touch panel support is optional.

B21C21001Q-01 – 2.1 Inch 480x480 RGB Round IPS TFT LCD Display
Share
Product description
  • Storage Temperature
    -20 C to +70 C
    Operating Temperature
    -10 C to +60 C
  • Interface
    RGB
    PIN
    40
  • Brightness (nits)
    360
    Active Area (mm)
    53.28 x 53.28
  • Outline Dimension (mm)
    56.18 x 59.718 x 2.2
    Resolution
    480 x 480
  • Viewing Angle
    IPS
    Touch Panel
    Optional
  • Model No
    B21C21001Q-01
    Shape
    Round
  • Size
    2.1 inch

Technical Specifications

Size2.1 inch
ShapeRound
Model NoB21C21001Q-01
Touch PanelOptional
Display TypeIPS
Resolution480 x 480
Outline Dimension (mm)56.18 x 59.718 x 2.2
Active Area (mm)53.28 x 53.28
Brightness (nits)360
PIN40
InterfaceRGB
Operating Temperature-10 C to +60 C
Storage Temperature-20 C to +70 C

Key Features

B21C21001Q-01 is a 2.1-inch IPS TFT LCD display with 480 x 480 resolution and a RGB panel interface. The specified brightness is 360 nits. Touch panel support is optional.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
BELIJ display application scenarios

Customization Options

  • Display size, resolution and brightness tailored to your project
  • Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
  • Optional touch: resistive or capacitive (full lamination)
  • Custom cover glass, frame and structural design
  • Driver IC and backlight customization for special requirements
  • No MOQ for custom orders. Small-batch customization and mass production supported.

Dimensions

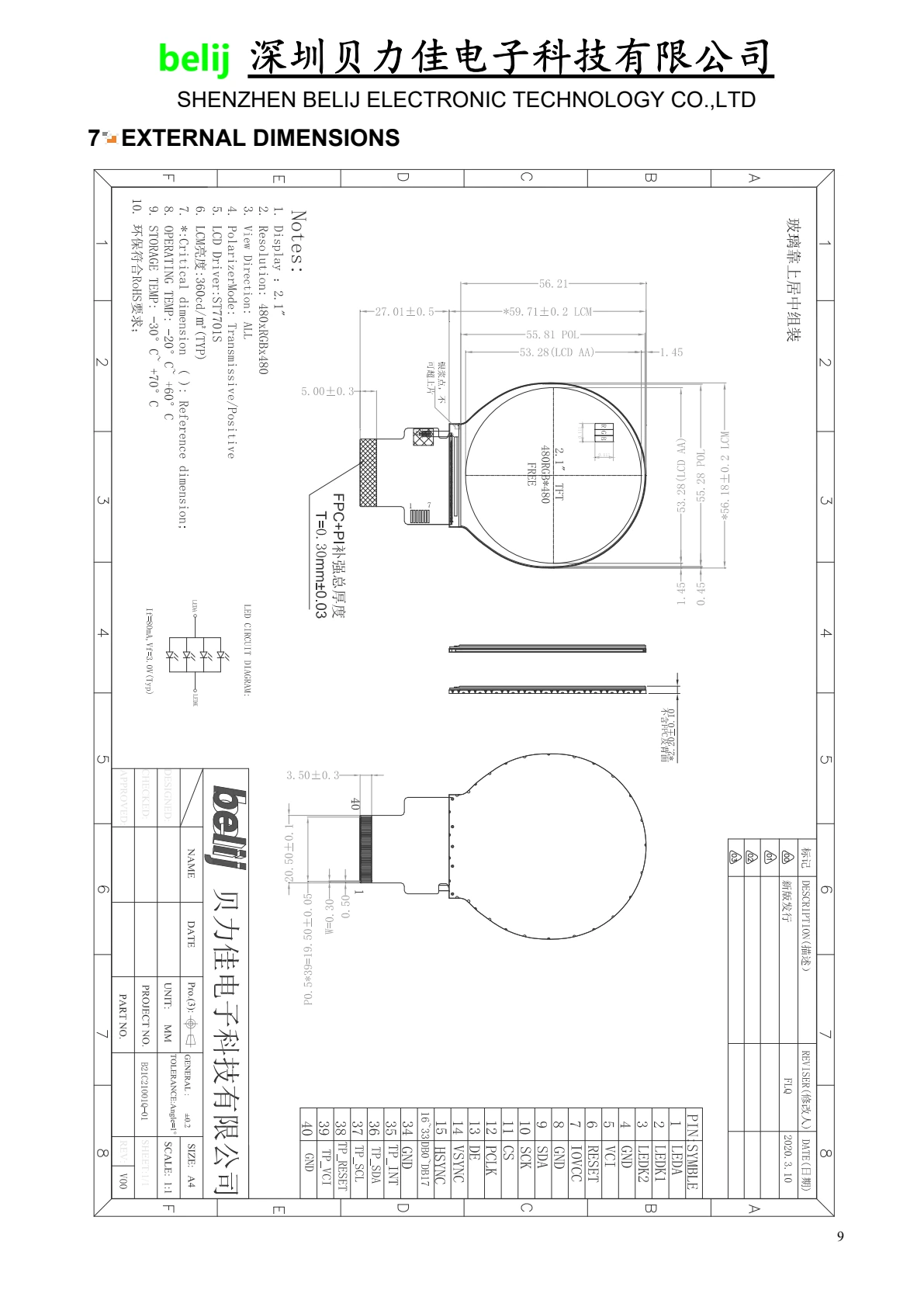

B21C21001Q-01 dimensional drawing from datasheet

No Substitution. As Approved.
