B25C15050Q-01 – 1.54 Inch 240x240 SPI Square IPS TFT LCD Display
No image available
No image available

B25C15050Q-01 is a 1.54-inch IPS TFT LCD display with 240 x 240 resolution and a SPI panel interface. The specified brightness is 300 nits. Touch panel support is optional.

B25C15050Q-01 – 1.54 Inch 240x240 SPI Square IPS TFT LCD Display
Share
Product description
  • Storage Temperature
    -20 C to +70 C
    Operating Temperature
    -10 C to +60 C
  • Interface
    SPI
    PIN
    12
  • Brightness (nits)
    300
    Active Area (mm)
    27.72 x 27.72
  • Outline Dimension (mm)
    31.52 x 33.72 x 1.95
    Resolution
    240 x 240
  • Viewing Angle
    IPS
    Touch Panel
    Optional
  • Model No
    B25C15050Q-01
    Shape
    Square
  • Size
    1.54 inch

Technical Specifications

Size1.54 inch
ShapeSquare
Model NoB25C15050Q-01
Touch PanelOptional
Display TypeIPS
Resolution240 x 240
Outline Dimension (mm)31.52 x 33.72 x 1.95
Active Area (mm)27.72 x 27.72
Brightness (nits)300
PIN12
InterfaceSPI
Operating Temperature-10 C to +60 C
Storage Temperature-20 C to +70 C

Key Features

B25C15050Q-01 is a 1.54-inch IPS TFT LCD display with 240 x 240 resolution and a SPI panel interface. The specified brightness is 300 nits. Touch panel support is optional.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
BELIJ display application scenarios

Customization Options

  • Display size, resolution and brightness tailored to your project
  • Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
  • Optional touch: resistive or capacitive (full lamination)
  • Custom cover glass, frame and structural design
  • Driver IC and backlight customization for special requirements
  • No MOQ for custom orders. Small-batch customization and mass production supported.

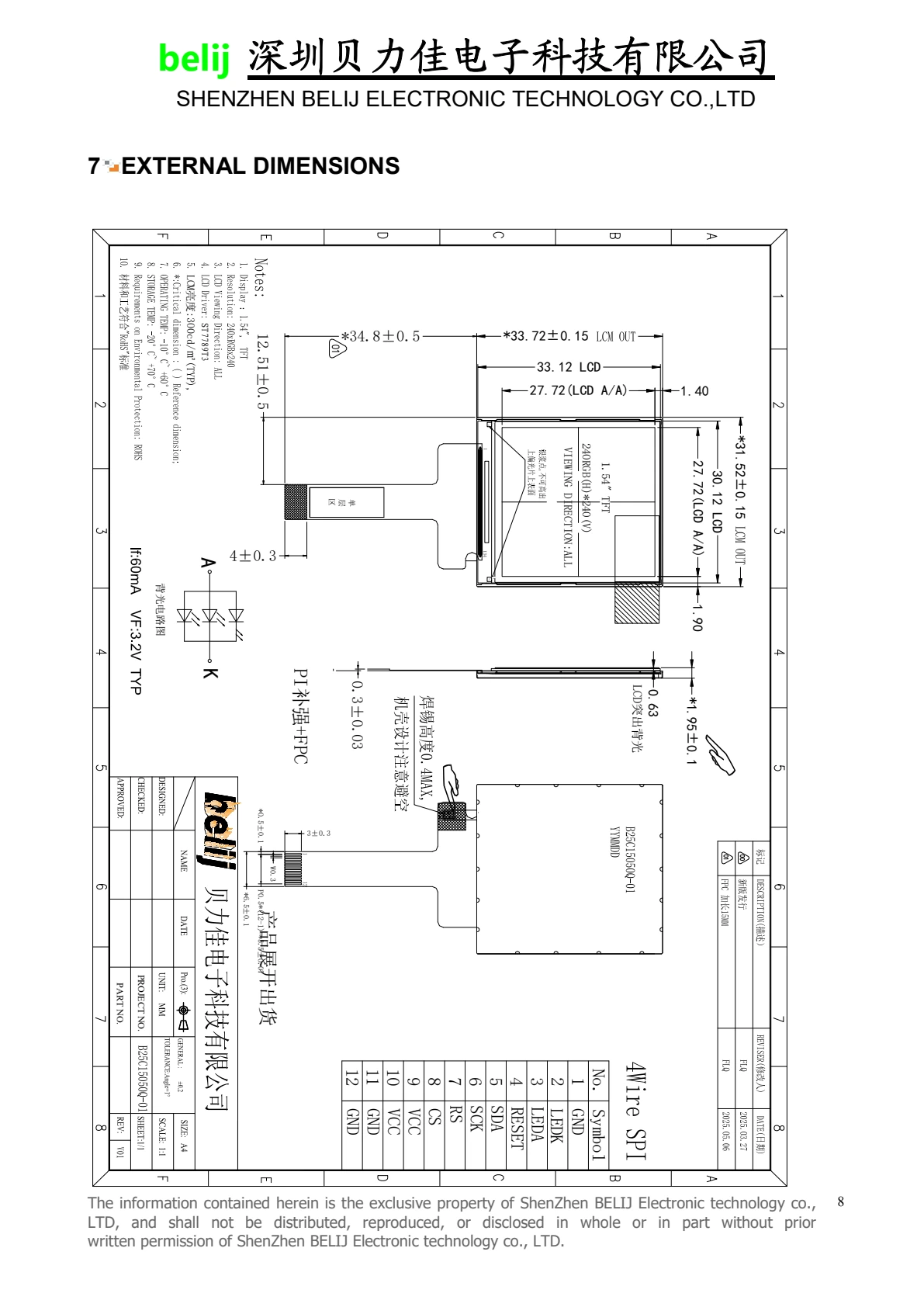

Dimensions

B25C15050Q-01 dimensional drawing from datasheet

No Substitution. As Approved.
