B26C50711Q-01 – 5.0 Inch 480x854 MIPI High-Brightness IPS TFT LCD Display
No image available
No image available

B26C50711Q-01 is a 5.0-inch IPS TFT LCD display with 480 x 854 resolution and a MIPI panel interface. The specified brightness is 1000 nits. Touch panel support is optional.

B26C50711Q-01 – 5.0 Inch 480x854 MIPI High-Brightness IPS TFT LCD Display
Share
Product description
  • Storage Temperature
    -30 C to +80 C
    Operating Temperature
    -20 C to +70 C
  • Interface
    MIPI
    PIN
    30
  • Brightness (nits)
    1000
    Active Area (mm)
    61.63 x 109.65
  • Outline Dimension (mm)
    66.4 x 120.05 x 2.02
    Resolution
    480 x 854
  • Viewing Angle
    IPS
    Touch Panel
    Optional
  • Model No
    B26C50711Q-01
    Size
    5.0 inch

Technical Specifications

Size5.0 inch
Model NoB26C50711Q-01
Touch PanelOptional
Display TypeIPS
Resolution480 x 854
Outline Dimension (mm)66.4 x 120.05 x 2.02
Active Area (mm)61.63 x 109.65
Brightness (nits)1000
PIN30
InterfaceMIPI
Operating Temperature-20 C to +70 C
Storage Temperature-30 C to +80 C

Key Features

B26C50711Q-01 is a 5.0-inch IPS TFT LCD display with 480 x 854 resolution and a MIPI panel interface. The specified brightness is 1000 nits. Touch panel support is optional.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
BELIJ display application scenarios

Customization Options

  • Display size, resolution and brightness tailored to your project
  • Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
  • Optional touch: resistive or capacitive (full lamination)
  • Custom cover glass, frame and structural design
  • Driver IC and backlight customization for special requirements
  • No MOQ for custom orders. Small-batch customization and mass production supported.

Dimensions

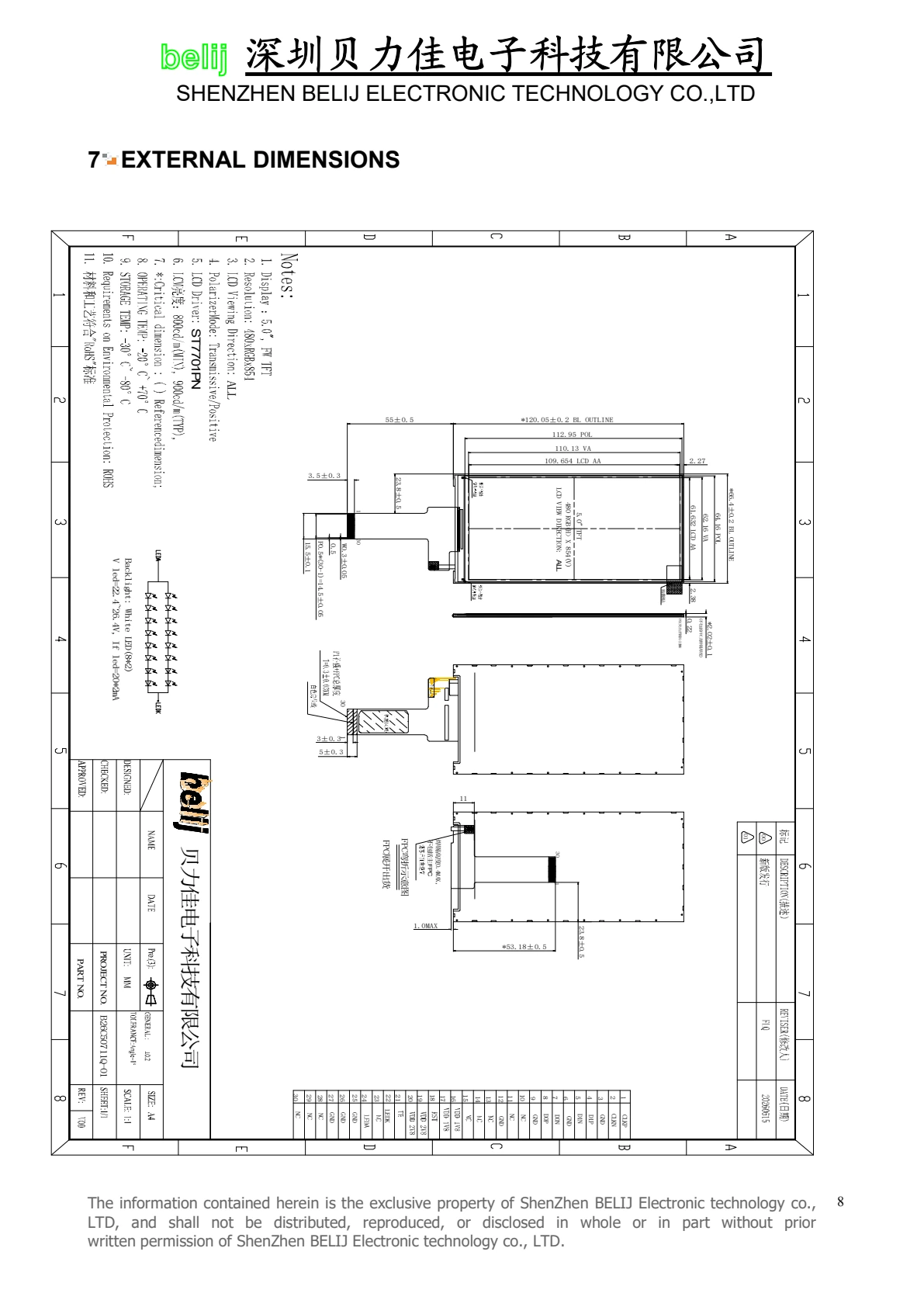

B26C50711Q-01 dimensional drawing from datasheet

No Substitution. As Approved.
