B22C28037Q-01 – 2.76 Inch 480x480 MIPI Round IPS TFT LCD Display
No image available
No image available

B22C28037Q-01 is a 2.76-inch IPS TFT LCD display with 480 x 480 resolution and a MIPI panel interface. The specified brightness is 300 nits. Touch panel support is optional.

B22C28037Q-01 – 2.76 Inch 480x480 MIPI Round IPS TFT LCD Display
Share
Product description
  • Storage Temperature
    -30 C to +80 C
    Operating Temperature
    -20 C to +70 C
  • Interface
    MIPI
    PIN
    30
  • Brightness (nits)
    300
    Active Area (mm)
    70.13 x 70.13
  • Outline Dimension (mm)
    73.03 x 76.48 x 2.3
    Resolution
    480 x 480
  • Viewing Angle
    IPS
    Touch Panel
    Optional
  • Model No
    B22C28037Q-01
    Shape
    Round
  • Size
    2.76 inch

Technical Specifications

Size2.76 inch
ShapeRound
Model NoB22C28037Q-01
Touch PanelOptional
Display TypeIPS
Resolution480 x 480
Outline Dimension (mm)73.03 x 76.48 x 2.3
Active Area (mm)70.13 x 70.13
Brightness (nits)300
PIN30
InterfaceMIPI
Operating Temperature-20 C to +70 C
Storage Temperature-30 C to +80 C

Key Features

B22C28037Q-01 is a 2.76-inch IPS TFT LCD display with 480 x 480 resolution and a MIPI panel interface. The specified brightness is 300 nits. Touch panel support is optional.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
BELIJ display application scenarios

Customization Options

  • Display size, resolution and brightness tailored to your project
  • Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
  • Optional touch: resistive or capacitive (full lamination)
  • Custom cover glass, frame and structural design
  • Driver IC and backlight customization for special requirements
  • No MOQ for custom orders. Small-batch customization and mass production supported.

Dimensions

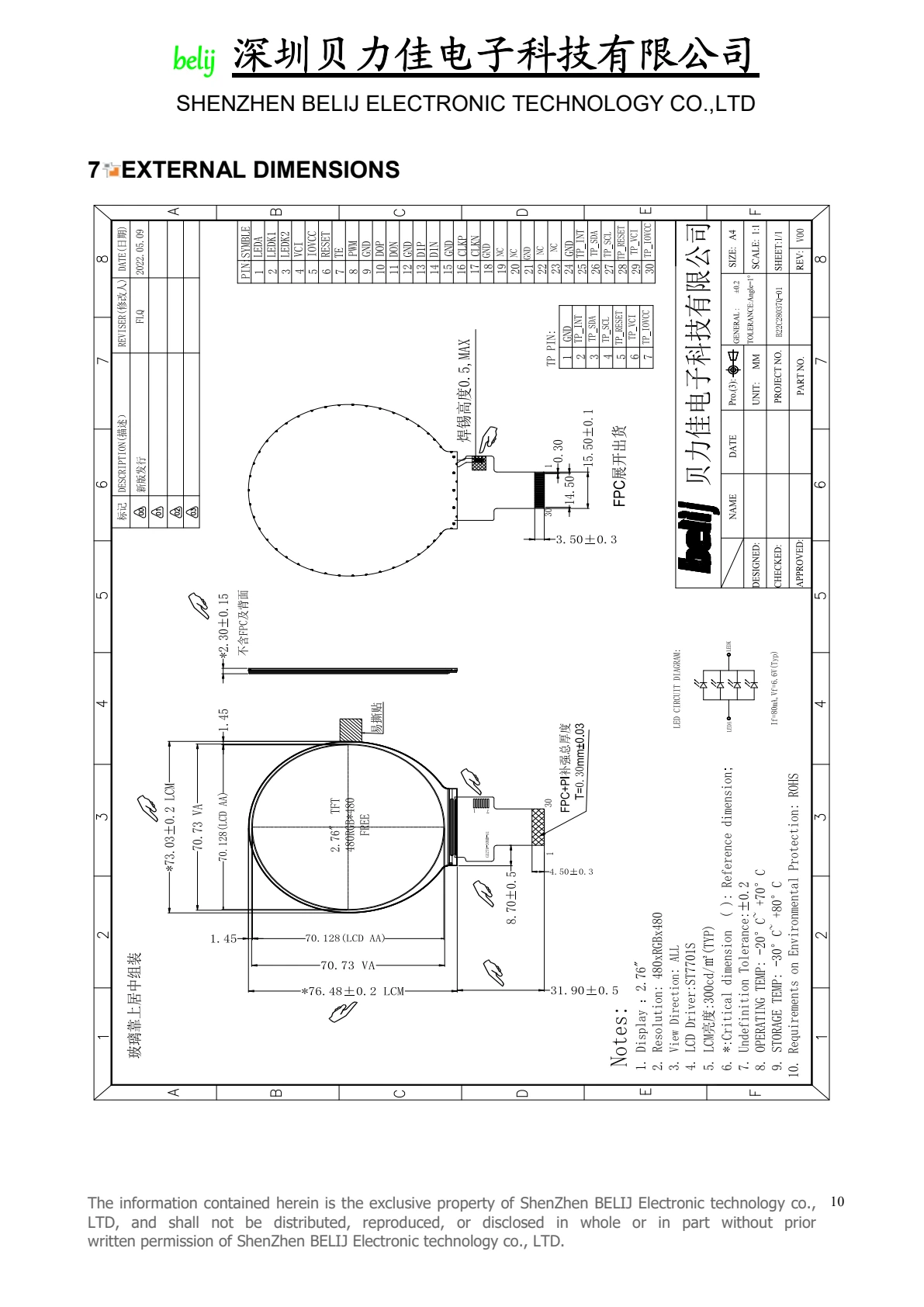

B22C28037Q-01 dimensional drawing from datasheet

No Substitution. As Approved.
