B24C70962Q-01 – 7.0 Inch 1080x1080 MIPI Round IPS TFT LCD Display
B24C70962Q-01 is a 7.0-inch IPS TFT LCD display with 1080 x 1080 resolution and a MIPI panel interface. The specified brightness is 900 nits. Touch panel support is optional.
Product description
-
Storage Temperature-30 C to +80 COperating Temperature-20 C to +70 C
-
InterfaceMIPIPIN40
-
Brightness (nits)900Active Area (mm)177.55 x 177.55
-
Outline Dimension (mm)192.75 x 191.58 x 4.75Resolution1080 x 1080
-
Viewing AngleIPSTouch PanelOptional
-
Model NoB24C70962Q-01ShapeRound
-
Size7.0 inch
Technical Specifications
| Size | 7.0 inch |
|---|---|
| Shape | Round |
| Model No | B24C70962Q-01 |
| Touch Panel | Optional |
| Display Type | IPS |
| Resolution | 1080 x 1080 |
| Outline Dimension (mm) | 192.75 x 191.58 x 4.75 |
| Active Area (mm) | 177.55 x 177.55 |
| Brightness (nits) | 900 |
| PIN | 40 |
| Interface | MIPI |
| Operating Temperature | -20 C to +70 C |
| Storage Temperature | -30 C to +80 C |
Key Features
B24C70962Q-01 is a 7.0-inch IPS TFT LCD display with 1080 x 1080 resolution and a MIPI panel interface. The specified brightness is 900 nits. Touch panel support is optional.
Applications
Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
Customization Options
- Display size, resolution and brightness tailored to your project
- Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
- Optional touch: resistive or capacitive (full lamination)
- Custom cover glass, frame and structural design
- Driver IC and backlight customization for special requirements
- No MOQ for custom orders. Small-batch customization and mass production supported.

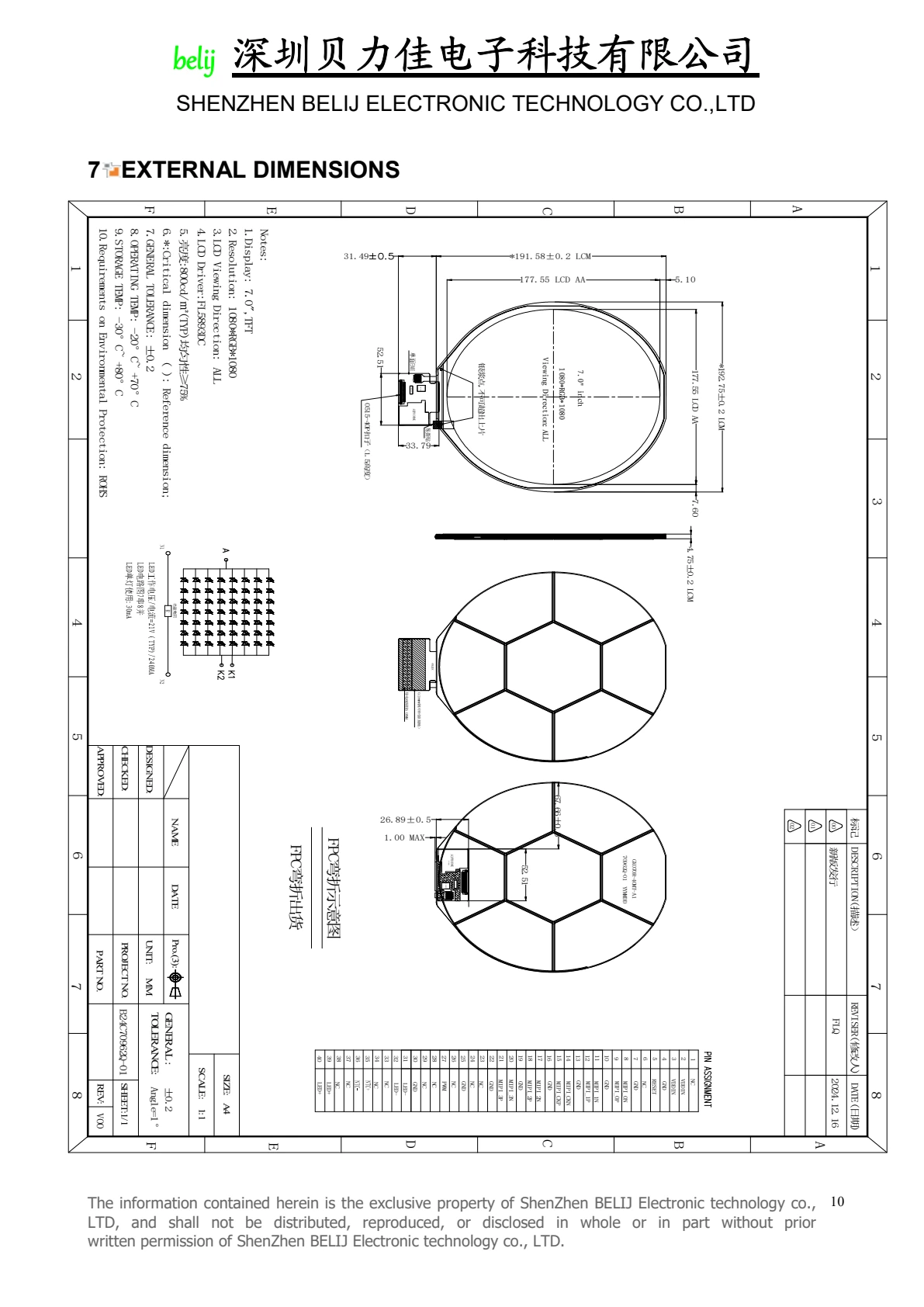

Dimensions
No Substitution. As Approved.
