B22C40284Q-03-C – 3.95 Inch 480x480 MIPI Square IPS TFT LCD Display with Capacitive Touch
No image available
No image available

B22C40284Q-03-C is a 3.95-inch IPS TFT LCD display with 480 x 480 resolution and a MIPI panel interface. The specified brightness is 300 nits. The module includes capacitive touch.

B22C40284Q-03-C – 3.95 Inch 480x480 MIPI Square IPS TFT LCD Display with Capacitive Touch
Share
Product description
  • Storage Temperature
    -30 C to +70 C
    Operating Temperature
    -20 C to +60 C
  • Interface
    MIPI
    PIN
    25
  • Brightness (nits)
    300
    Active Area (mm)
    71.86 x 70.18
  • Outline Dimension (mm)
    83.6 x 83.6 x 3.32 (TLCM) / 74.56 x 76.54 x 2.1 (LCM)
    Resolution
    480 x 480
  • Viewing Angle
    IPS
    Touch Panel
    CTP
  • Model No
    B22C40284Q-03-C
    Shape
    Square
  • Size
    3.95 inch

Technical Specifications

Size3.95 inch
ShapeSquare
Model NoB22C40284Q-03-C
Touch PanelCTP
Display TypeIPS
Resolution480 x 480
Outline Dimension (mm)83.6 x 83.6 x 3.32 (TLCM) / 74.56 x 76.54 x 2.1 (LCM)
Active Area (mm)71.86 x 70.18
Brightness (nits)300
PIN25
InterfaceMIPI
Operating Temperature-20 C to +60 C
Storage Temperature-30 C to +70 C

Key Features

B22C40284Q-03-C is a 3.95-inch IPS TFT LCD display with 480 x 480 resolution and a MIPI panel interface. The specified brightness is 300 nits. The module includes capacitive touch.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
BELIJ display application scenarios

Customization Options

  • Display size, resolution and brightness tailored to your project
  • Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
  • Optional touch: resistive or capacitive (full lamination)
  • Custom cover glass, frame and structural design
  • Driver IC and backlight customization for special requirements
  • No MOQ for custom orders. Small-batch customization and mass production supported.

Dimensions

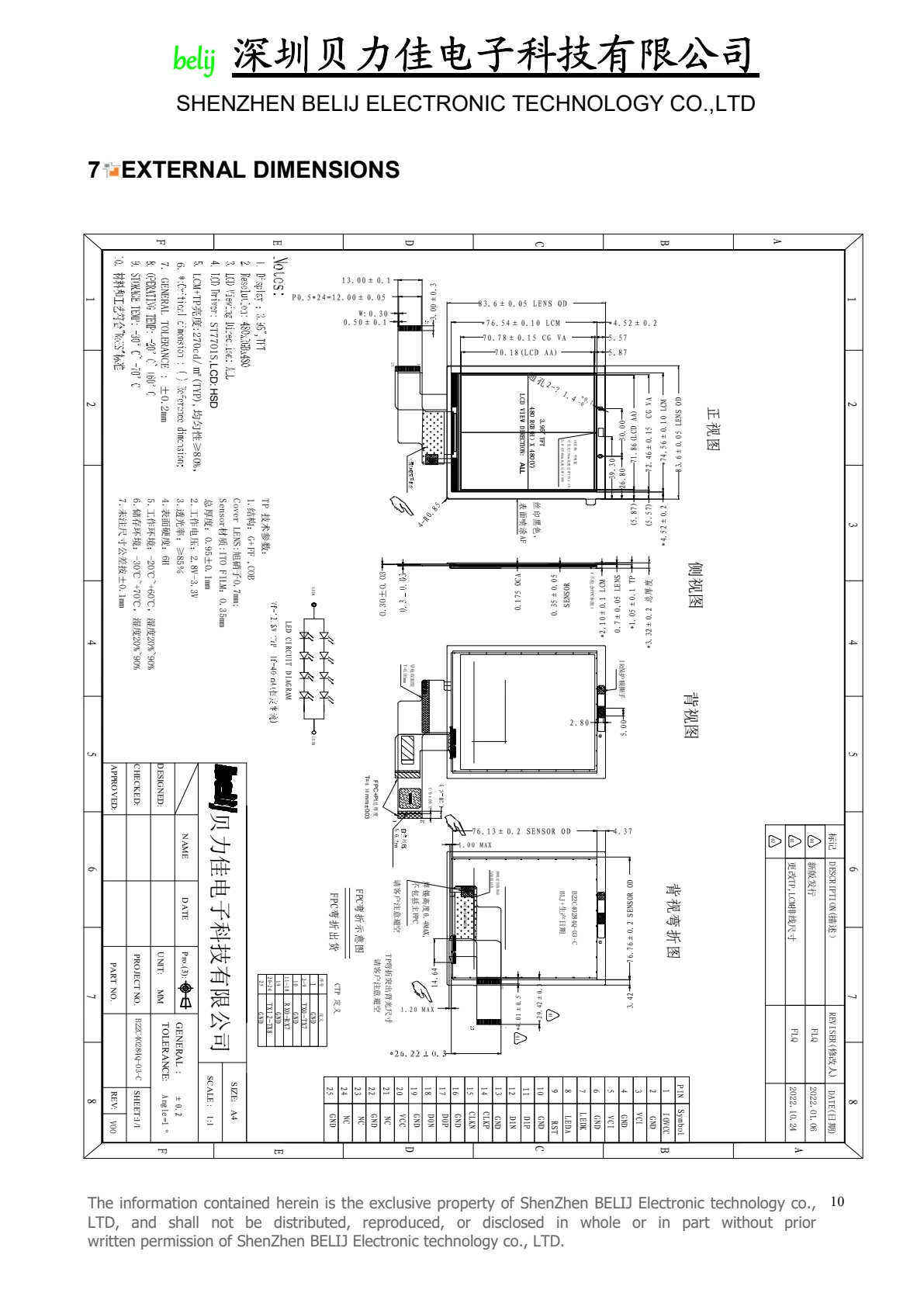

B22C40284Q-03-C dimensional drawing from datasheet

No Substitution. As Approved.
