B24C13013Q-01-C – 1.3 Inch 240x240 SPI Square IPS TFT LCD Display with Capacitive Touch
No image available
No image available

B24C13013Q-01-C is a 1.3-inch IPS TFT LCD display with 240 x 240 resolution and a SPI panel interface. The specified brightness is 300 nits. The module includes capacitive touch.

B24C13013Q-01-C – 1.3 Inch 240x240 SPI Square IPS TFT LCD Display with Capacitive Touch
Share
Product description
  • Storage Temperature
    -20 C to +70 C
    Operating Temperature
    -10 C to +60 C
  • Interface
    SPI
    PIN
    25
  • Brightness (nits)
    300
    Active Area (mm)
    23.4 x 23.4
  • Outline Dimension (mm)
    35.3 x 35.2 x 3.41 (TLCM) / 26.17 x 29.22 x 1.88 (LCM)
    Resolution
    240 x 240
  • Viewing Angle
    IPS
    Touch Panel
    CTP
  • Model No
    B24C13013Q-01-C
    Shape
    Square
  • Size
    1.3 inch

Technical Specifications

Size1.3 inch
ShapeSquare
Model NoB24C13013Q-01-C
Touch PanelCTP
Display TypeIPS
Resolution240 x 240
Outline Dimension (mm)35.3 x 35.2 x 3.41 (TLCM) / 26.17 x 29.22 x 1.88 (LCM)
Active Area (mm)23.4 x 23.4
Brightness (nits)300
PIN25
InterfaceSPI
Operating Temperature-10 C to +60 C
Storage Temperature-20 C to +70 C

Key Features

B24C13013Q-01-C is a 1.3-inch IPS TFT LCD display with 240 x 240 resolution and a SPI panel interface. The specified brightness is 300 nits. The module includes capacitive touch.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
BELIJ display application scenarios

Customization Options

  • Display size, resolution and brightness tailored to your project
  • Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
  • Optional touch: resistive or capacitive (full lamination)
  • Custom cover glass, frame and structural design
  • Driver IC and backlight customization for special requirements
  • No MOQ for custom orders. Small-batch customization and mass production supported.

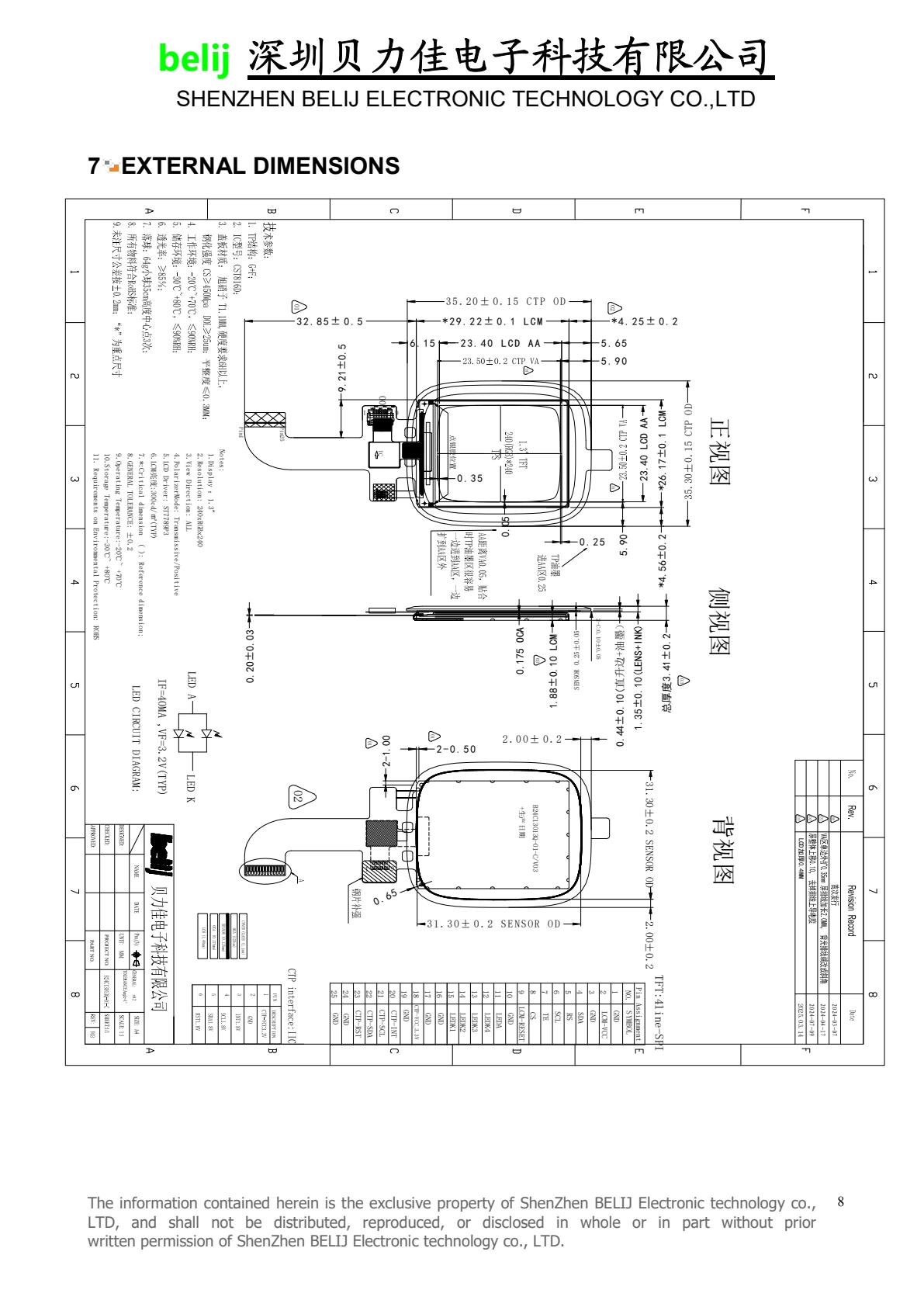

Dimensions

B24C13013Q-01-C dimensional drawing from datasheet

No Substitution. As Approved.
