B22C13011Q-01 – 1.28 Inch 240x240 SPI Round IPS TFT LCD Display
No image available
No image available

B22C13011Q-01 is a 1.28-inch IPS TFT LCD display with 240 x 240 resolution and a SPI panel interface. The specified brightness is 300 nits. Touch panel support is optional.

B22C13011Q-01 – 1.28 Inch 240x240 SPI Round IPS TFT LCD Display
Share
Product description
  • Storage Temperature
    -20 C to +70 C
    Operating Temperature
    -10 C to +60 C
  • Interface
    SPI
    PIN
    10
  • Brightness (nits)
    300
    Active Area (mm)
    32.4 x 32.4
  • Outline Dimension (mm)
    35.6 x 38.1 x 1.56
    Resolution
    240 x 240
  • Viewing Angle
    IPS
    Touch Panel
    Optional
  • Model No
    B22C13011Q-01
    Shape
    Round
  • Size
    1.28 inch

Technical Specifications

Size1.28 inch
ShapeRound
Model NoB22C13011Q-01
Touch PanelOptional
Display TypeIPS
Resolution240 x 240
Outline Dimension (mm)35.6 x 38.1 x 1.56
Active Area (mm)32.4 x 32.4
Brightness (nits)300
PIN10
InterfaceSPI
Operating Temperature-10 C to +60 C
Storage Temperature-20 C to +70 C

Key Features

B22C13011Q-01 is a 1.28-inch IPS TFT LCD display with 240 x 240 resolution and a SPI panel interface. The specified brightness is 300 nits. Touch panel support is optional.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
BELIJ display application scenarios

Customization Options

  • Display size, resolution and brightness tailored to your project
  • Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
  • Optional touch: resistive or capacitive (full lamination)
  • Custom cover glass, frame and structural design
  • Driver IC and backlight customization for special requirements
  • No MOQ for custom orders. Small-batch customization and mass production supported.

Dimensions

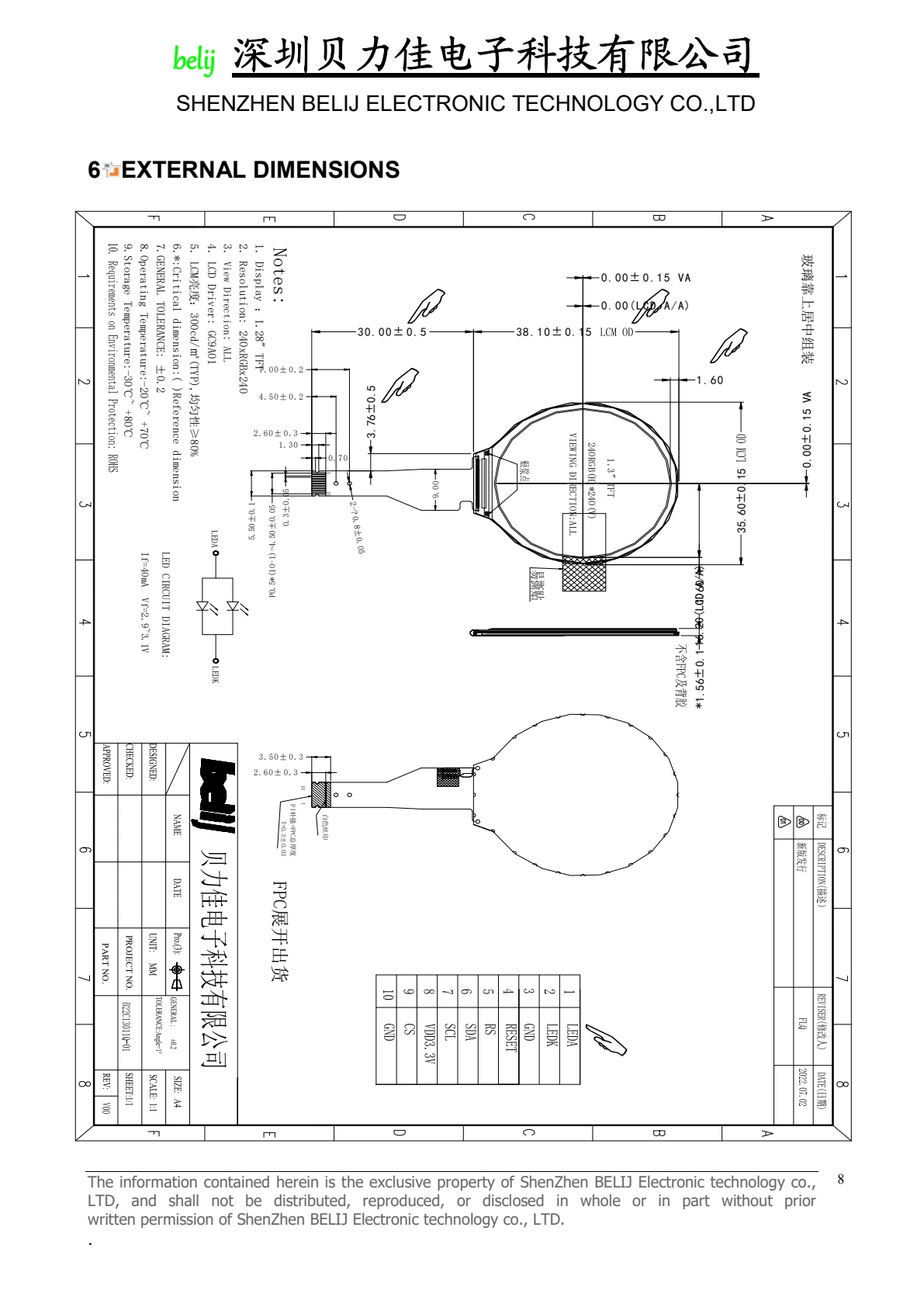

B22C13011Q-01 dimensional drawing from datasheet

No Substitution. As Approved.
