B20C40245Q-02 – 3.95 Inch 720x720 MIPI Square IPS TFT LCD Display
No image available
No image available

B20C40245Q-02 is a 3.95-inch IPS TFT LCD display with 720 x 720 resolution and a MIPI panel interface. The specified brightness is 300 nits. Touch panel support is optional.

B20C40245Q-02 – 3.95 Inch 720x720 MIPI Square IPS TFT LCD Display
Share
Product description
  • Storage Temperature
    -30 C to +70 C
    Operating Temperature
    -20 C to +60 C
  • Interface
    MIPI
    PIN
    30
  • Brightness (nits)
    300
    Active Area (mm)
    71.93 x 71.93
  • Outline Dimension (mm)
    74.83 x 78.98 x 1.86
    Resolution
    720 x 720
  • Viewing Angle
    IPS
    Touch Panel
    Optional
  • Model No
    B20C40245Q-02
    Shape
    Square
  • Size
    3.95 inch

Technical Specifications

Size3.95 inch
ShapeSquare
Model NoB20C40245Q-02
Touch PanelOptional
Display TypeIPS
Resolution720 x 720
Outline Dimension (mm)74.83 x 78.98 x 1.86
Active Area (mm)71.93 x 71.93
Brightness (nits)300
PIN30
InterfaceMIPI
Operating Temperature-20 C to +60 C
Storage Temperature-30 C to +70 C

Key Features

B20C40245Q-02 is a 3.95-inch IPS TFT LCD display with 720 x 720 resolution and a MIPI panel interface. The specified brightness is 300 nits. Touch panel support is optional.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
BELIJ display application scenarios

Customization Options

  • Display size, resolution and brightness tailored to your project
  • Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
  • Optional touch: resistive or capacitive (full lamination)
  • Custom cover glass, frame and structural design
  • Driver IC and backlight customization for special requirements
  • No MOQ for custom orders. Small-batch customization and mass production supported.

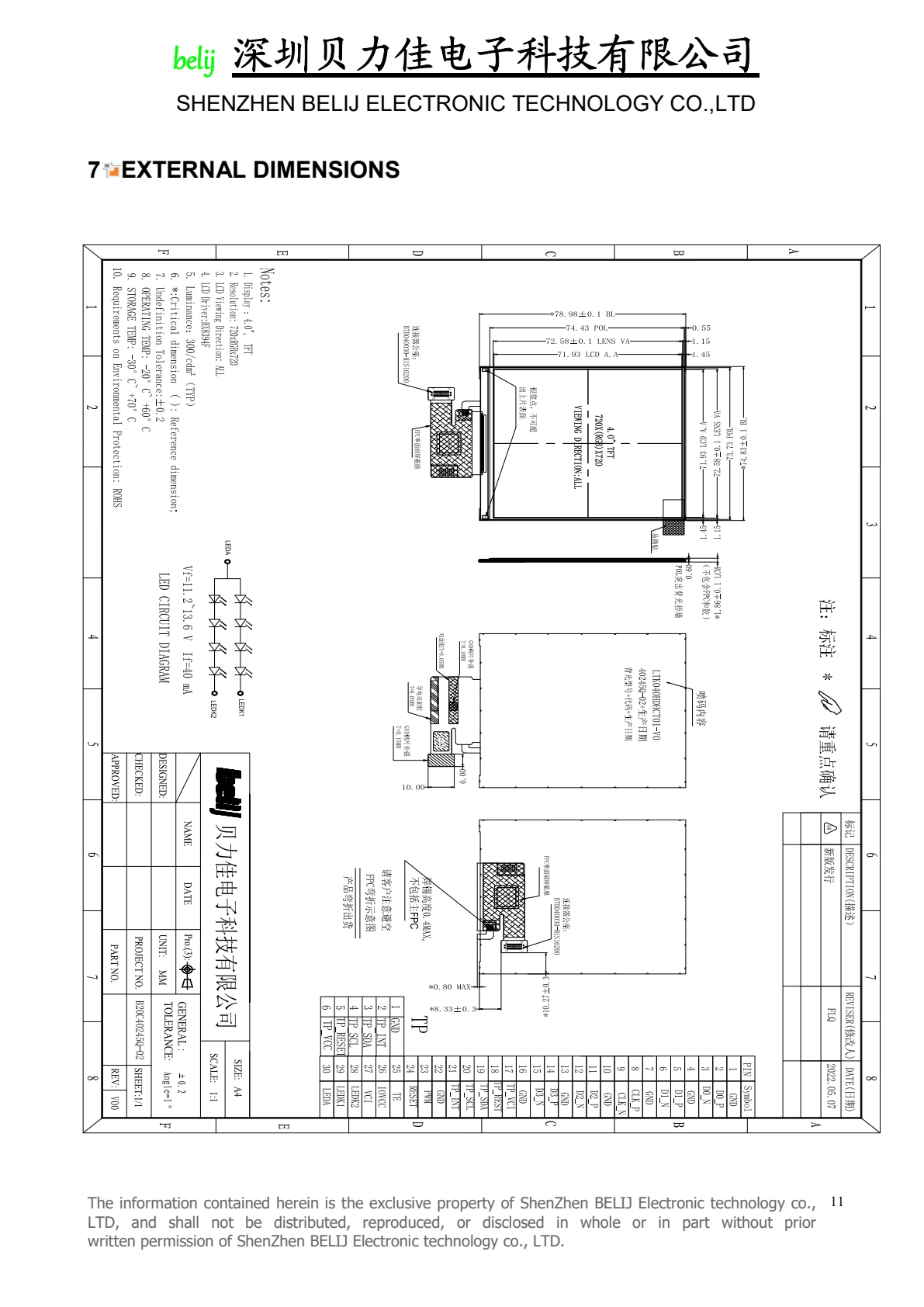

Dimensions

B20C40245Q-02 dimensional drawing from datasheet

No Substitution. As Approved.
