B21C40266Q-02 – 3.95 Inch 480x480 RGB Square IPS TFT LCD Display
B21C40266Q-02 is a 3.95-inch IPS TFT LCD display with 480 x 480 resolution and a RGB panel interface. The specified brightness is 350 nits. Touch panel support is optional.
Product description
-
Storage Temperature-30 C to +70 COperating Temperature-20 C to +60 C
-
InterfaceRGBPIN40
-
Brightness (nits)350Active Area (mm)71.86 x 70.18
-
Outline Dimension (mm)74.83 x 78.98 x 2.0Resolution480 x 480
-
Viewing AngleIPSTouch PanelOptional
-
Model NoB21C40266Q-02ShapeSquare
-
Size3.95 inch
Technical Specifications
| Size | 3.95 inch |
|---|---|
| Shape | Square |
| Model No | B21C40266Q-02 |
| Touch Panel | Optional |
| Display Type | IPS |
| Resolution | 480 x 480 |
| Outline Dimension (mm) | 74.83 x 78.98 x 2.0 |
| Active Area (mm) | 71.86 x 70.18 |
| Brightness (nits) | 350 |
| PIN | 40 |
| Interface | RGB |
| Operating Temperature | -20 C to +60 C |
| Storage Temperature | -30 C to +70 C |
Key Features
B21C40266Q-02 is a 3.95-inch IPS TFT LCD display with 480 x 480 resolution and a RGB panel interface. The specified brightness is 350 nits. Touch panel support is optional.
Applications
Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
Customization Options
- Display size, resolution and brightness tailored to your project
- Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
- Optional touch: resistive or capacitive (full lamination)
- Custom cover glass, frame and structural design
- Driver IC and backlight customization for special requirements
- No MOQ for custom orders. Small-batch customization and mass production supported.

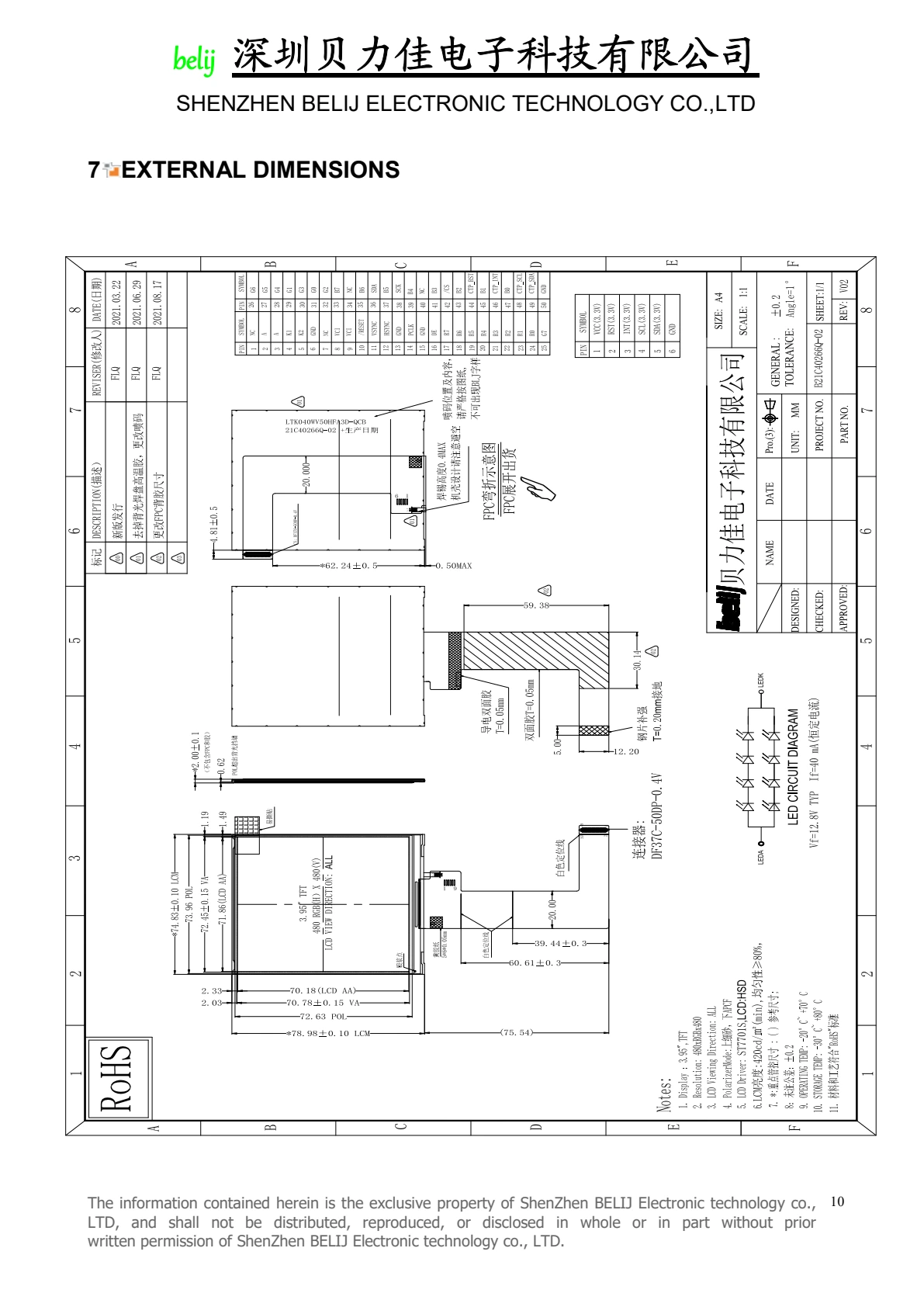

Dimensions
No Substitution. As Approved.
