10.1 Inch Portrait MIPI TFT LCD Display Module
1200x1920 1000 Nits
10.1 Inch Portrait MIPI TFT LCD Display Module
1200x1920 1000 Nits
Generate QR code
-
Estimated Delivery:Sep 08 - Sep 12
Product description
Product Overview
10.1-inch portrait high brightness display with MIPI interface. Sourced from BELIJ (Shenzhen Beliga Electronic Technology Co., Ltd.), a national high-tech LCM manufacturer with 17+ years of experience and 100+ product patents, ISO9001 & ISO14001 certified.
Key Features
- Portrait 1200x1920 orientation, ideal for kiosks and digital signage
- 1000 cd/m2 brightness with ≥75% uniformity for consistent display
- MIPI DSI interface with HX8279-D driver IC for fast refresh
- Compact 3.68mm slim profile for space-constrained designs
- RoHS compliant, reliable long-term supply from source factory
Technical Specifications
| size | 10.1 inch (portrait) |
| resolution | 1200 (RGB) x 1920 |
| brightness | 1000 cd/m2 (typ), uniformity ≥75% |
| interface | MIPI (40-pin, 0.5mm pitch) |
| driver_ic | HX8279-D |

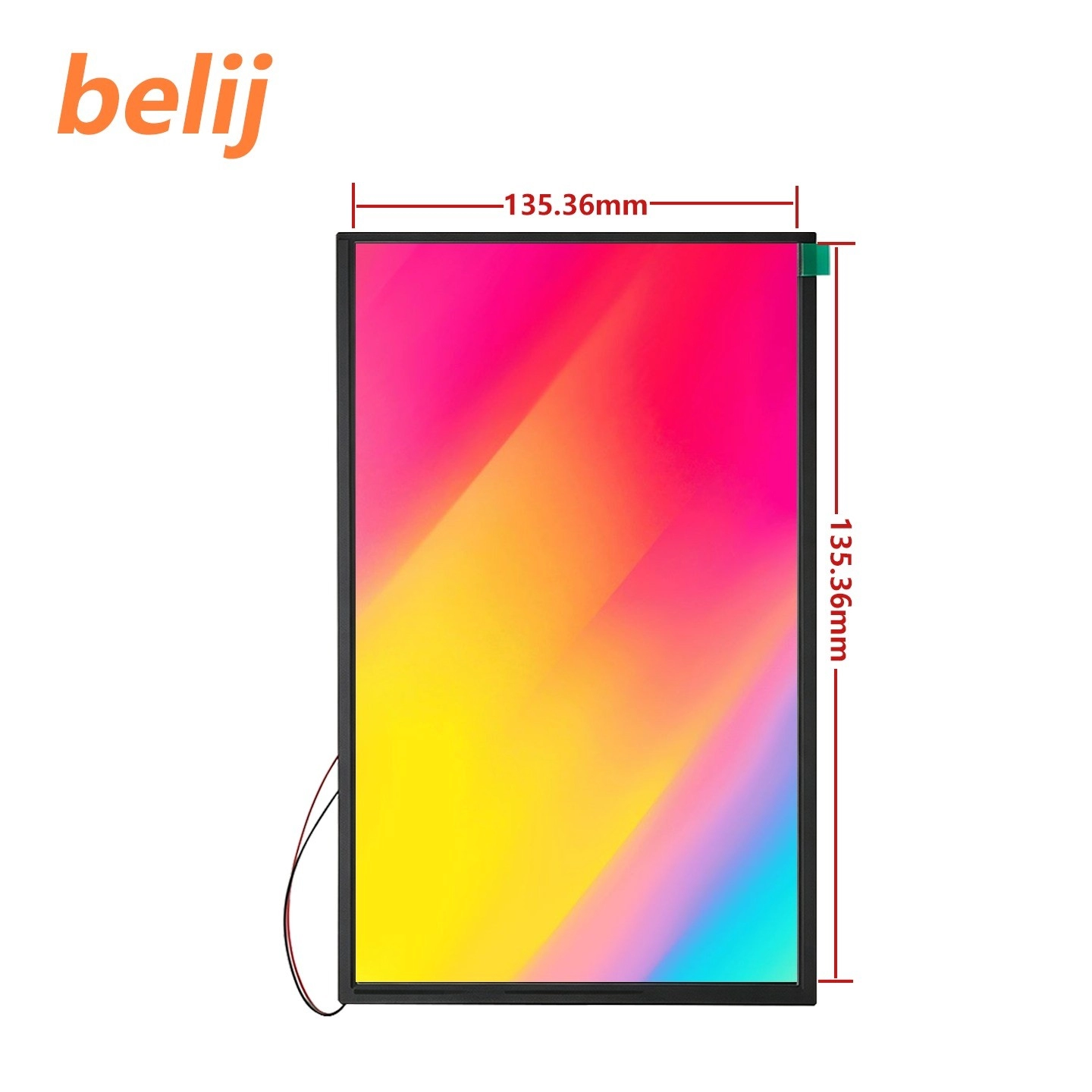

| active_area | 135.36 x 216.58 mm |
| outline | 149.80 x 228.66 x 3.68 mm |
| view_direction | All |
| led | If=280mA, Vf=23.2~26.4V |
| uniformity | ≥75% |
| pin_count | 40 pin |
| operating_temp | -20°C to +60°C |
| storage_temp | -30°C to +70°C |
| touch | Optional (custom) |

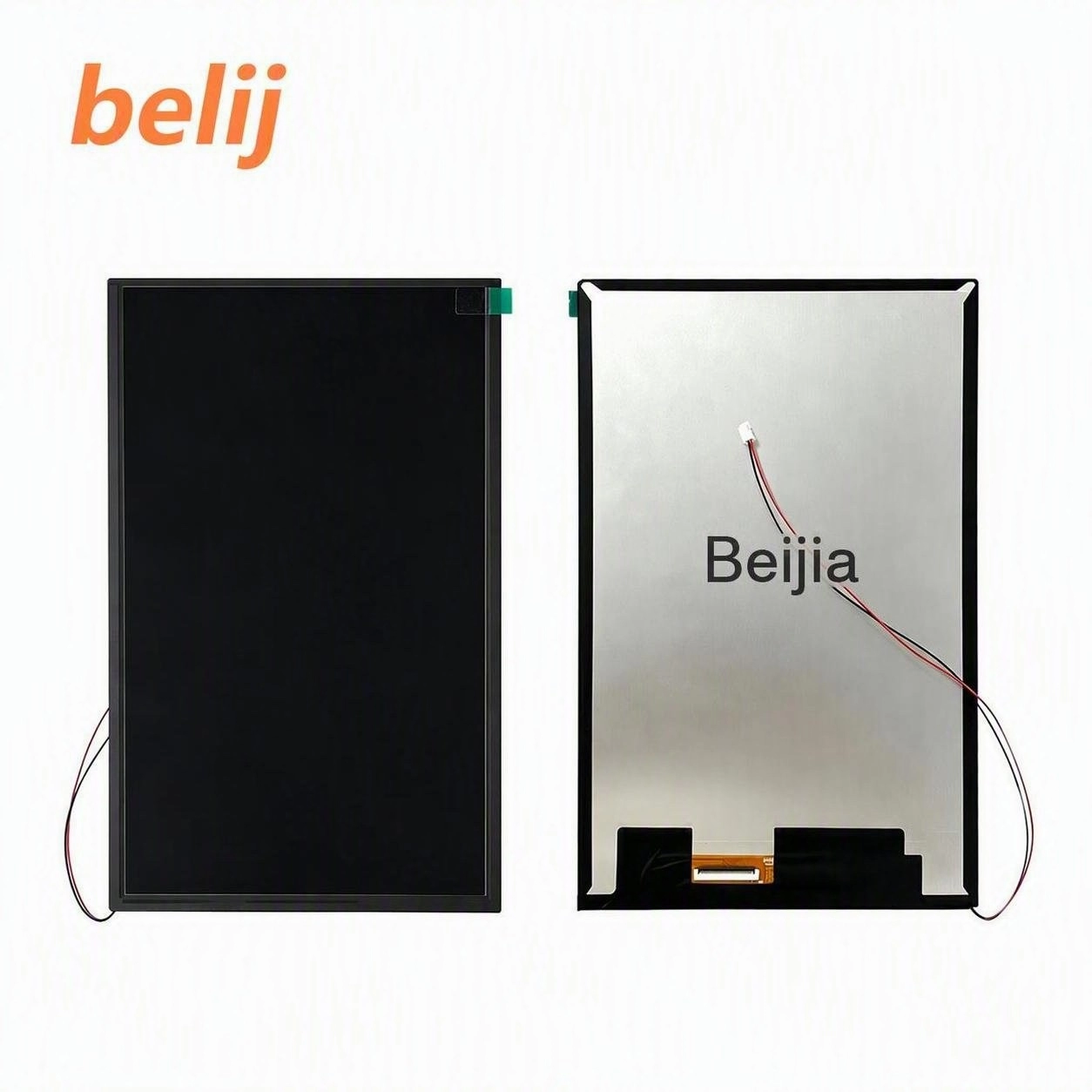

Product Views
|
|
Typical Applications
Digital signage & kiosksRobotsIndustrial control panelsSecurity devicesMedical equipmentEV charging piles
Customization & OEM/ODM Service
- Display size, resolution and brightness tailored to your project
- Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
- Optional touch: resistive or capacitive (full lamination)
- Custom cover glass, frame and structural design
- Driver IC and backlight customization for special requirements
- Low MOQ for sampling; stable mass production for bulk orders
Why Choose BELIJ
| Founded | 2009, Shenzhen, China |
| Certifications | ISO9001, ISO14001, National High-Tech Enterprise, SRDI (Specialized & Sophisticated) |
| Patents | 100+ product patents |
| Monthly Capacity | 1,000,000+ units |
| Trusted by | Haier, Xiaomi, Alibaba, PAX and more |
Need a custom LCD display module? Get a free quote today.
Send your specification or drawing — our engineers will reply within 24 hours.
