5.0 Inch High Brightness IPS TFT LCD Display Module
800x480 1000 Nits
5.0 Inch High Brightness IPS TFT LCD Display Module
800x480 1000 Nits
Generate QR code
-
Estimated Delivery:Sep 08 - Sep 12
Product description
Product Overview
Sunlight-readable 5-inch LCM for outdoor and industrial devices. Sourced from BELIJ (Shenzhen Beliga Electronic Technology Co., Ltd.), a national high-tech LCM manufacturer with 17+ years of experience and 100+ product patents, ISO9001 & ISO14001 certified.
Key Features
- 1000 cd/m2 high brightness, clearly visible under direct sunlight
- IPS panel with all-direction viewing angle for any mounting orientation
- Wide -20°C to +70°C operating range for outdoor and industrial use
- Rubber-wrapped four edges and buckle-free design for easy assembly
- FPC output options, low MOQ and fast sample support
Technical Specifications
| size | 5.0 inch |
| resolution | 800 (RGB) x 480 |
| brightness | 1000 cd/m2 (typ) |
| interface | RGB |

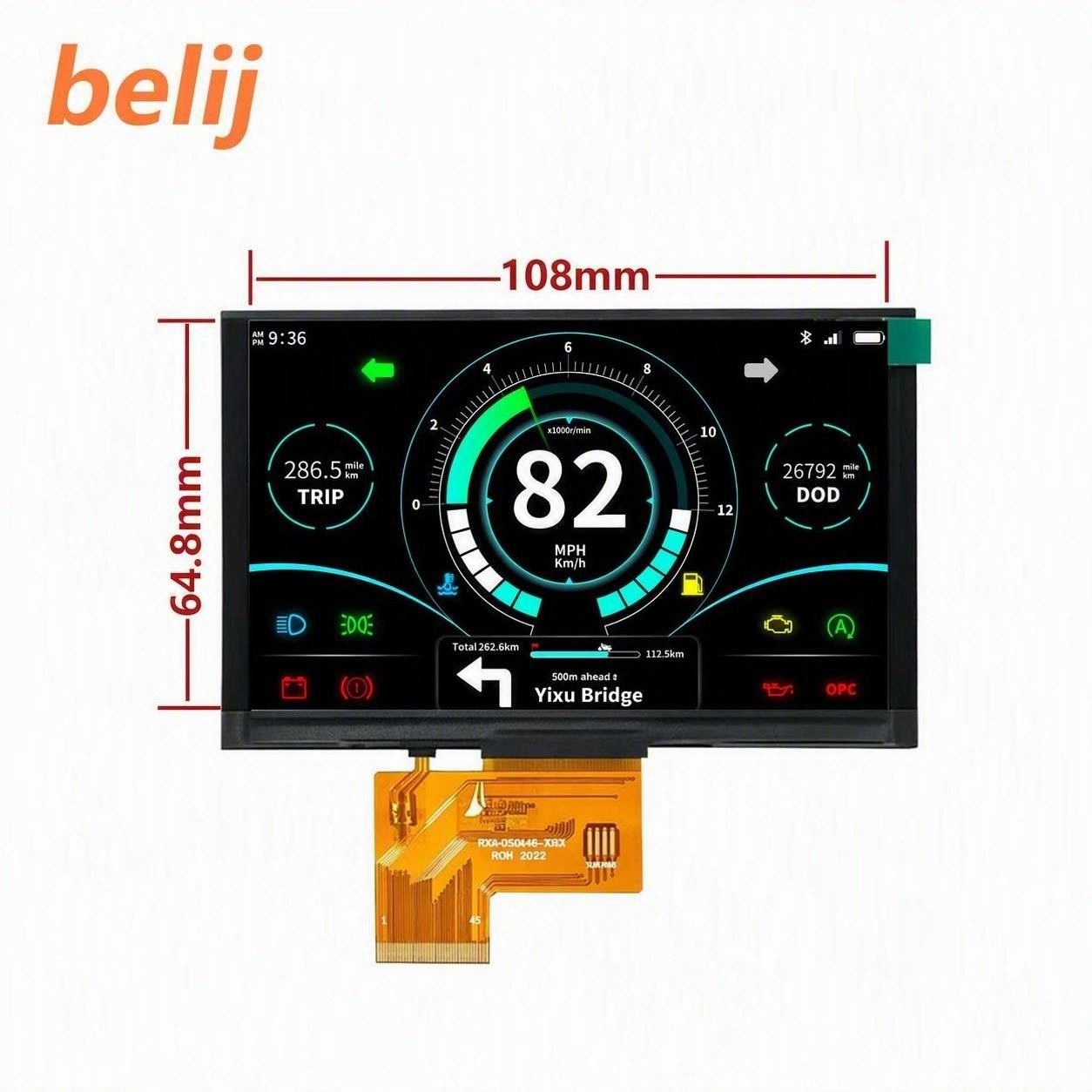

| active_area | 108.00 x 64.80 mm |
| outline | 120.20 x 75.30 x 2.75 mm (excl. buckles) |
| view_direction | All (IPS) |
| led | If=60mA, Vf=19.2±0.3V |
| operating_temp | -20°C to +70°C |
| storage_temp | -30°C to +80°C |

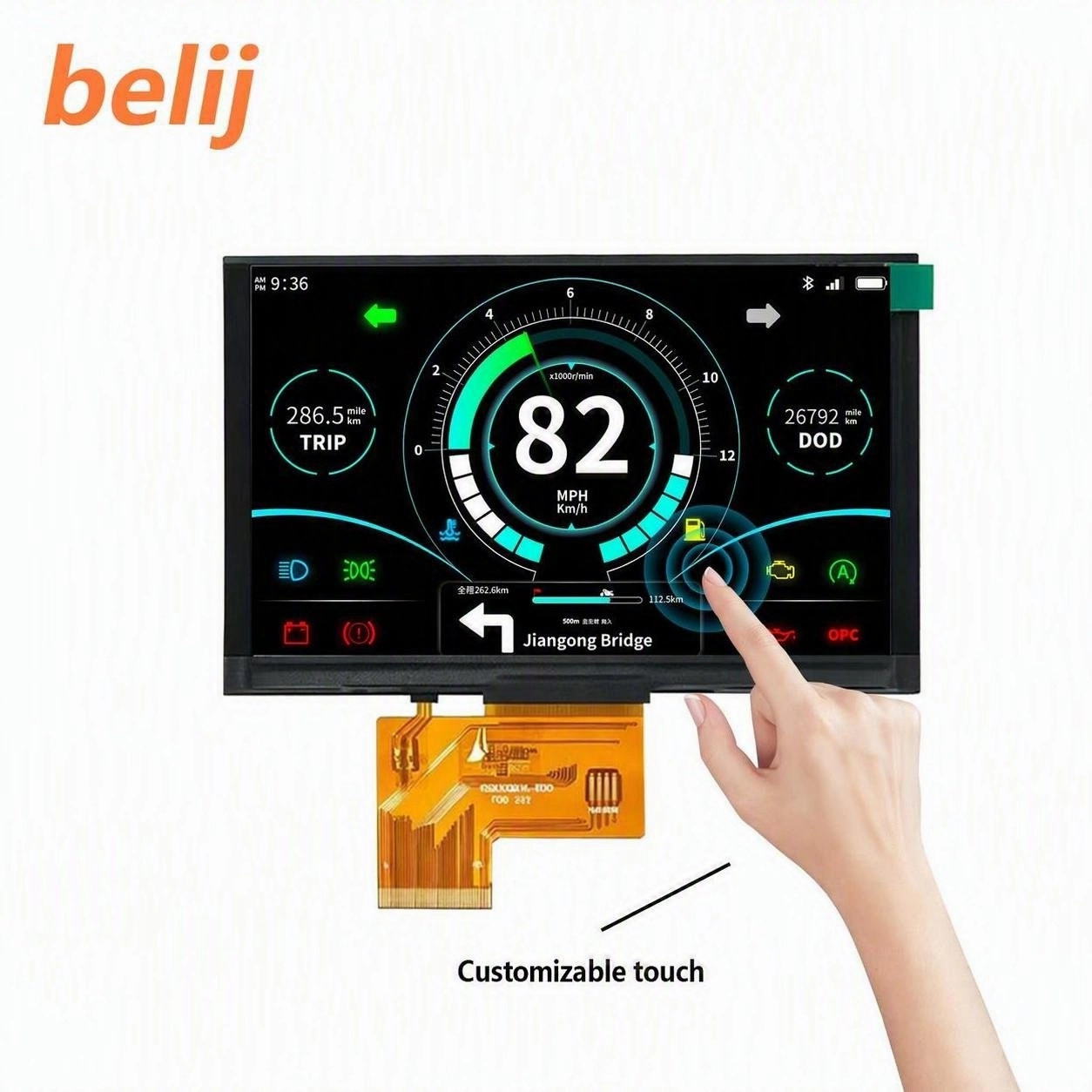

| touch | Optional (custom) |

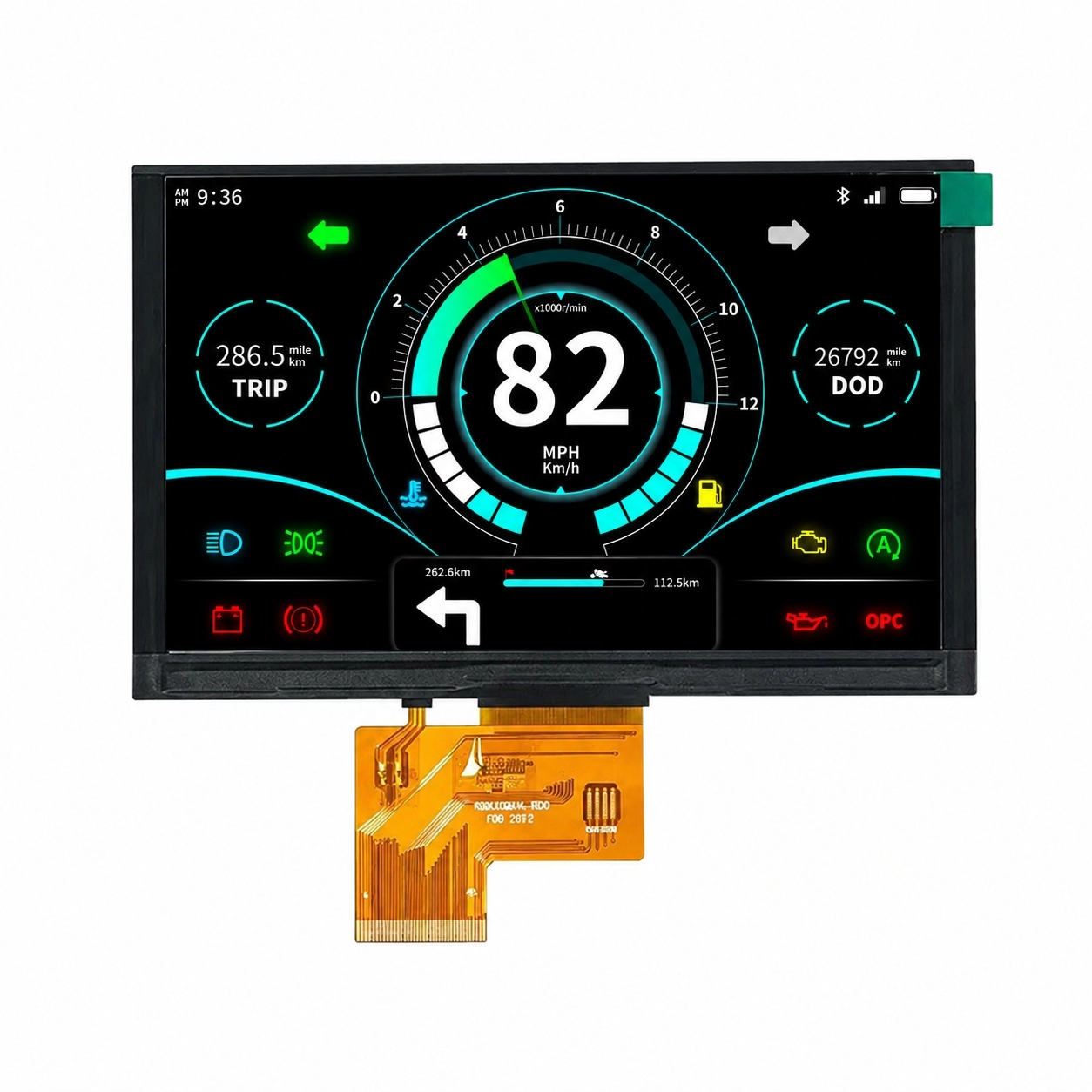

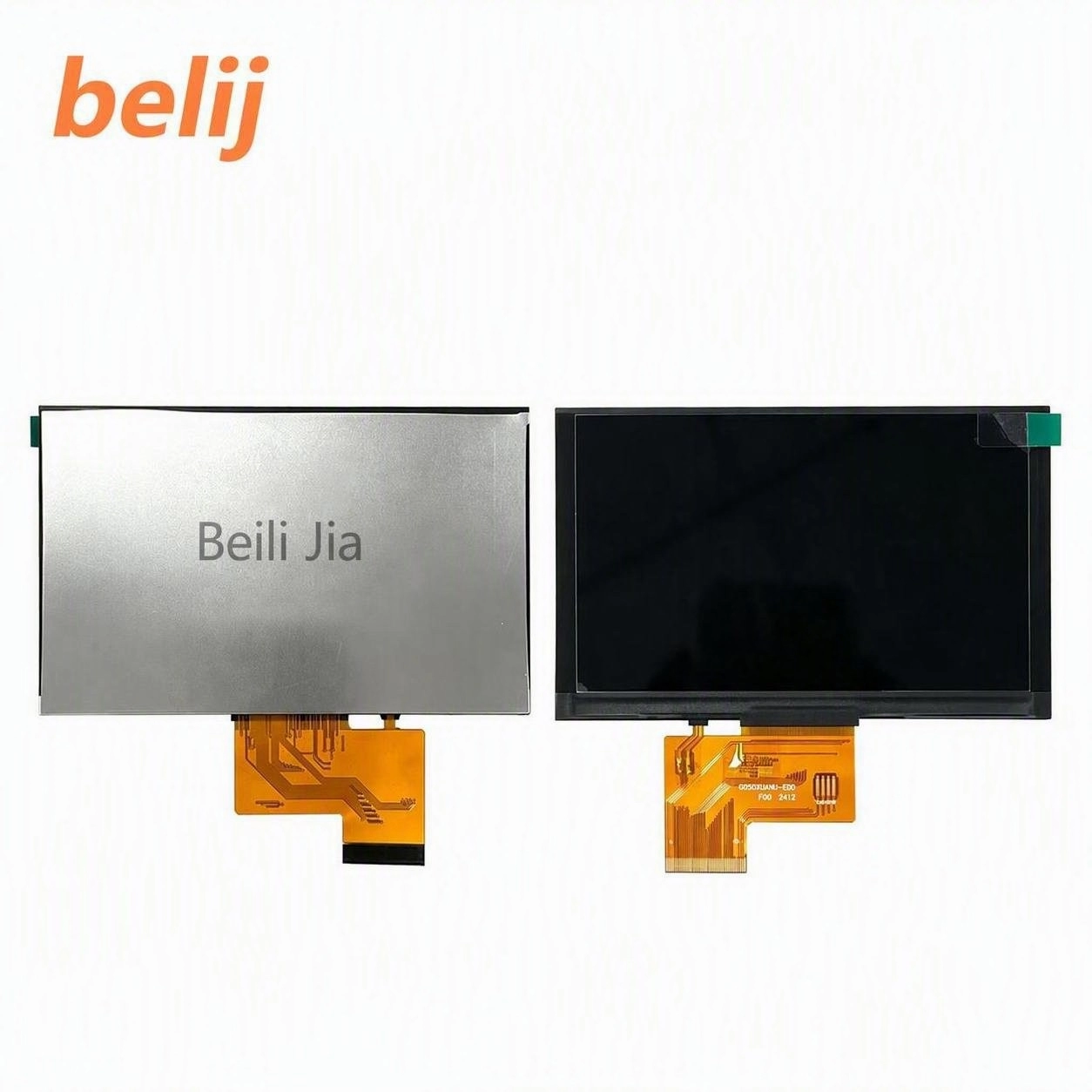

Product Views
|
|
Typical Applications
Drone remote controllersIndustrial display equipmentE-bike / e-scooter gaugesSecurity & surveillance devicesOutdoor photography equipment
Customization & OEM/ODM Service
- Display size, resolution and brightness tailored to your project
- Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
- Optional touch: resistive or capacitive (full lamination)
- Custom cover glass, frame and structural design
- Driver IC and backlight customization for special requirements
- Low MOQ for sampling; stable mass production for bulk orders
Why Choose BELIJ
| Founded | 2009, Shenzhen, China |
| Certifications | ISO9001, ISO14001, National High-Tech Enterprise, SRDI (Specialized & Sophisticated) |
| Patents | 100+ product patents |
| Monthly Capacity | 1,000,000+ units |
| Trusted by | Haier, Xiaomi, Alibaba, PAX and more |
Need a custom LCD display module? Get a free quote today.
Send your specification or drawing — our engineers will reply within 24 hours.
