8.0 Inch LVDS Touch TFT LCD Display Module
1920x1200 1000 Nits
8.0 Inch LVDS Touch TFT LCD Display Module
1920x1200 1000 Nits
Generate QR code
-
Estimated Delivery:Sep 08 - Sep 12
Product description
Product Overview
8-inch high brightness display with full lamination touch. Sourced from BELIJ (Shenzhen Beliga Electronic Technology Co., Ltd.), a national high-tech LCM manufacturer with 17+ years of experience and 100+ product patents, ISO9001 & ISO14001 certified.
Key Features
- 1920x1200 high resolution combined with 1000 cd/m2 high brightness

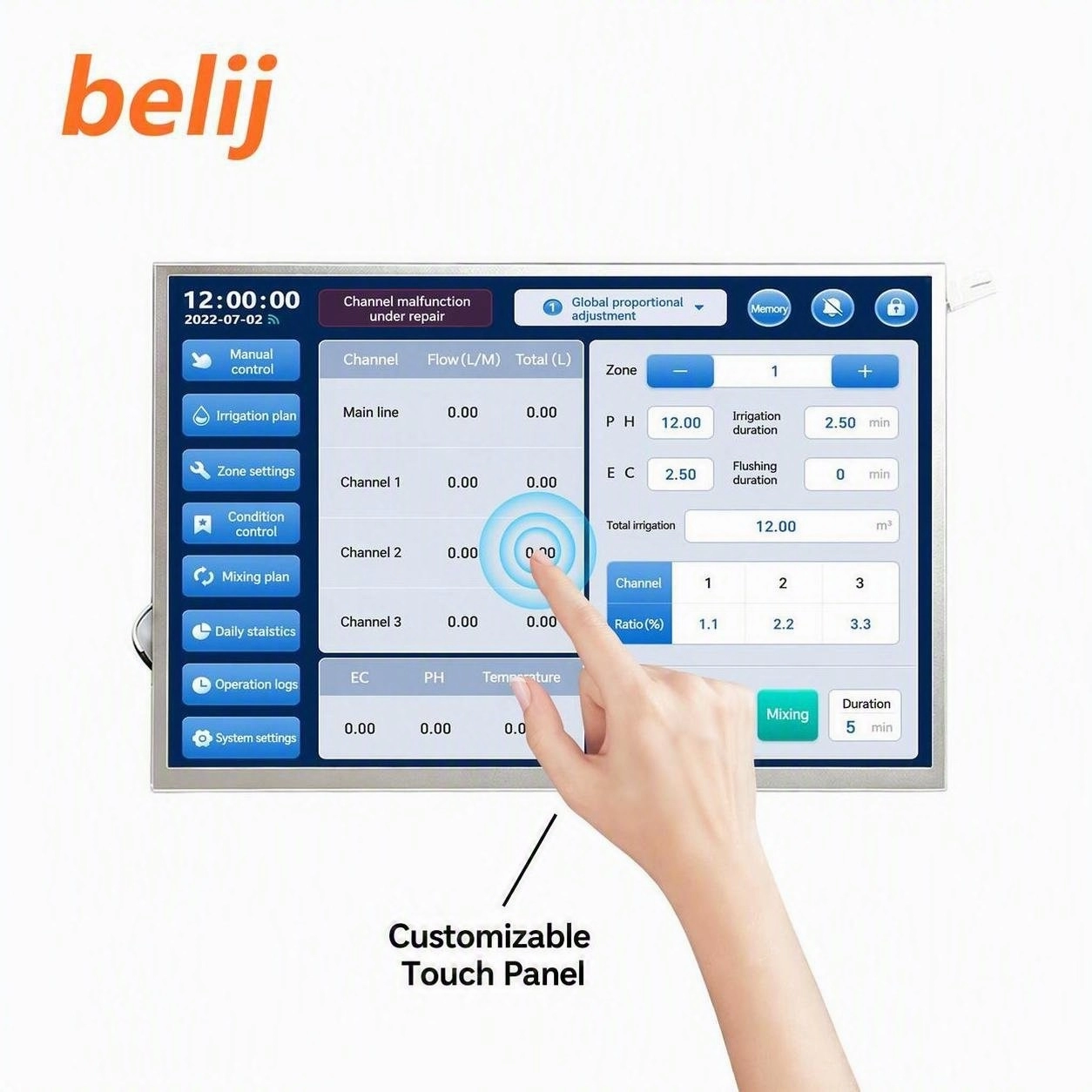

- Full lamination capacitive touch (IIC, CST826) for crystal-clear optics
- LVDS 45-pin interface for stable industrial signal transmission
- FL5893DA driver IC, wide -20°C to +70°C operating range
- Customizable touch, cover glass and interface options
Technical Specifications
| size | 8.0 inch |
| resolution | 1920 x 1200 |
| brightness | 1000 cd/m2 (typ) |
| interface | LVDS (45 pin) |
| driver_ic | FL5893DA |

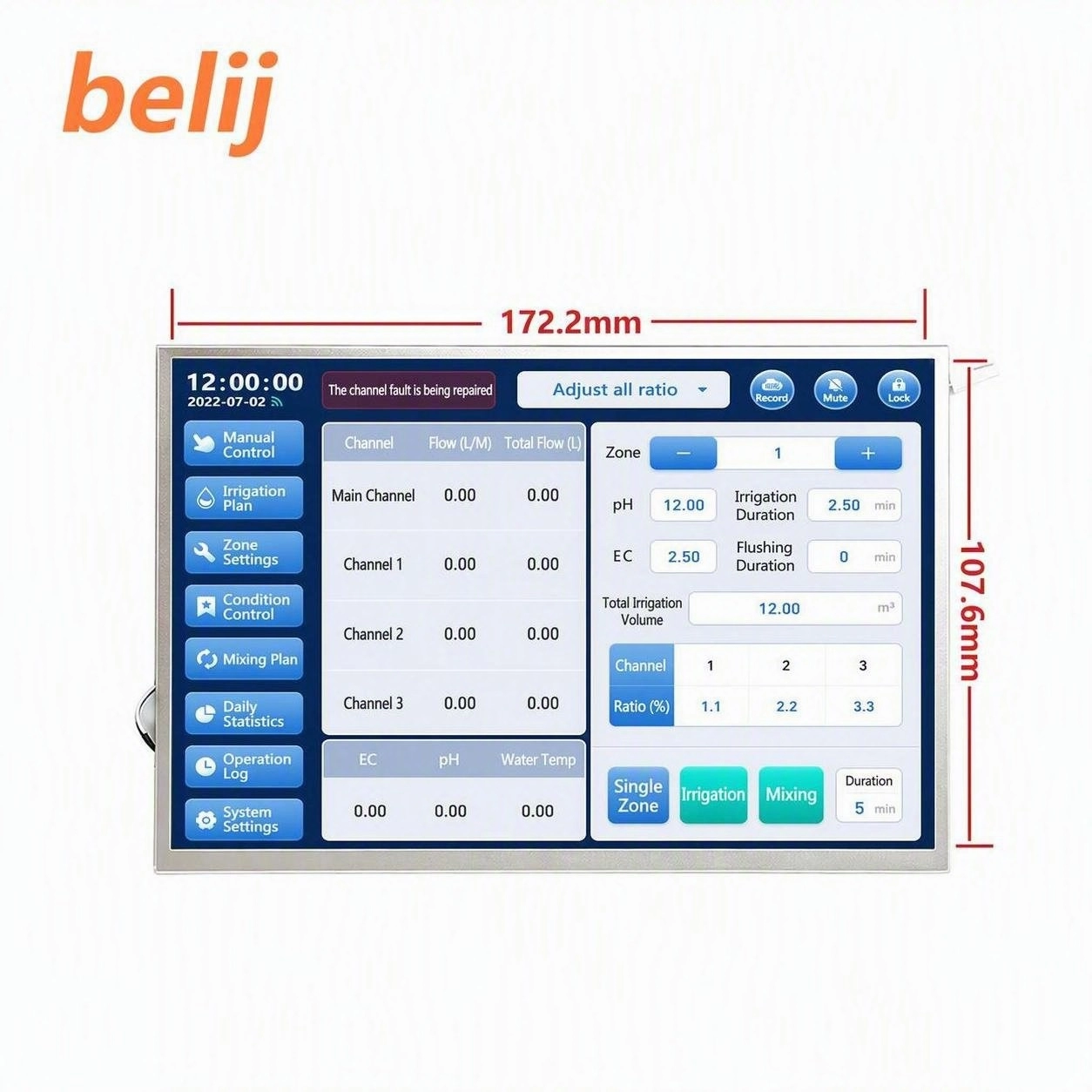

| active_area | 172.20 x 107.60 mm |
| outline | 181.70 x 119.80 x 5.50 mm |
| view_direction | All |
| pin_count | 45 pin |
| operating_temp | -20°C to +70°C |
| storage_temp | -30°C to +80°C |
| touch | Capacitive touch, full lamination, IIC, CST826 |

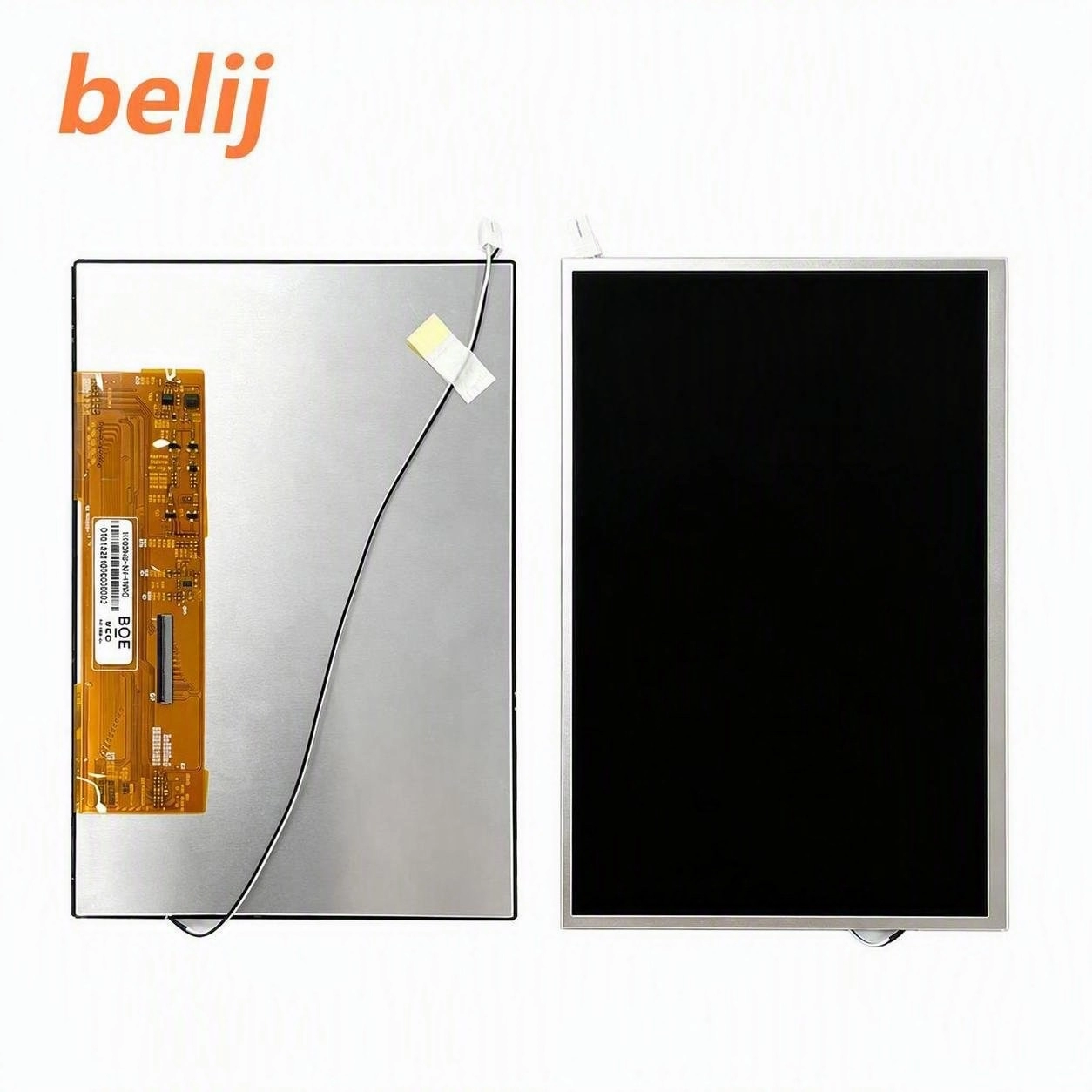

Product Views
|
|
Typical Applications
Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
Customization & OEM/ODM Service
- Display size, resolution and brightness tailored to your project
- Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
- Optional touch: resistive or capacitive (full lamination)
- Custom cover glass, frame and structural design
- Driver IC and backlight customization for special requirements
- Low MOQ for sampling; stable mass production for bulk orders
Why Choose BELIJ
| Founded | 2009, Shenzhen, China |
| Certifications | ISO9001, ISO14001, National High-Tech Enterprise, SRDI (Specialized & Sophisticated) |
| Patents | 100+ product patents |
| Monthly Capacity | 1,000,000+ units |
| Trusted by | Haier, Xiaomi, Alibaba, PAX and more |
Need a custom LCD display module? Get a free quote today.
Send your specification or drawing — our engineers will reply within 24 hours.
