8.0 Inch Portrait LCD Display Module
1200x1920 MIPI TFT
8.0 Inch Portrait LCD Display Module
1200x1920 MIPI TFT
Generate QR code
-
Estimated Delivery:Sep 08 - Sep 12
Product description
Product Overview
8-inch portrait display for face recognition and smart devices. Sourced from BELIJ (Shenzhen Beliga Electronic Technology Co., Ltd.), a national high-tech LCM manufacturer with 17+ years of experience and 100+ product patents, ISO9001 & ISO14001 certified.
Key Features
- 1200x1920 portrait resolution for face recognition and smart terminals
- Slim 2.18mm panel for sleek, compact device designs
- MIPI 30-pin interface with HX8279 driver IC
- -10°C to +60°C operating range suitable for indoor smart devices
- Versatile for POS, robots, smart home and medical terminals
Technical Specifications
| size | 8.0 inch (portrait) |
| resolution | 1200 x 1920 |
| brightness | 400 cd/m2 (typ) |
| interface | MIPI (30 pin) |
| driver_ic | HX8279 |

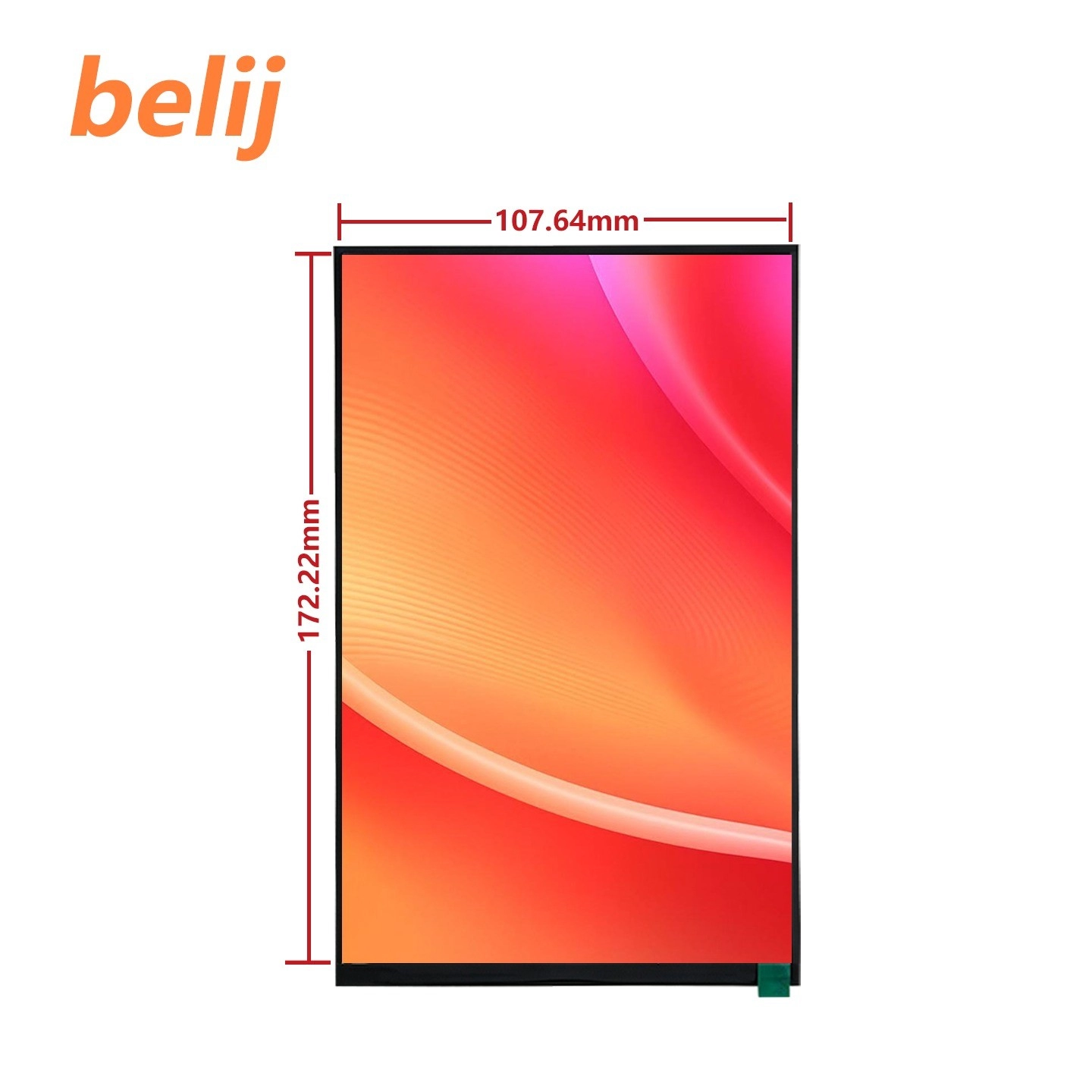

| active_area | 107.64 x 172.22 mm |
| outline | 114.12 x 183.18 x 2.18 mm |
| view_direction | All |
| pin_count | 30 pin |
| operating_temp | -10°C to +60°C |
| storage_temp | -20°C to +70°C |
| touch | Optional (custom) |

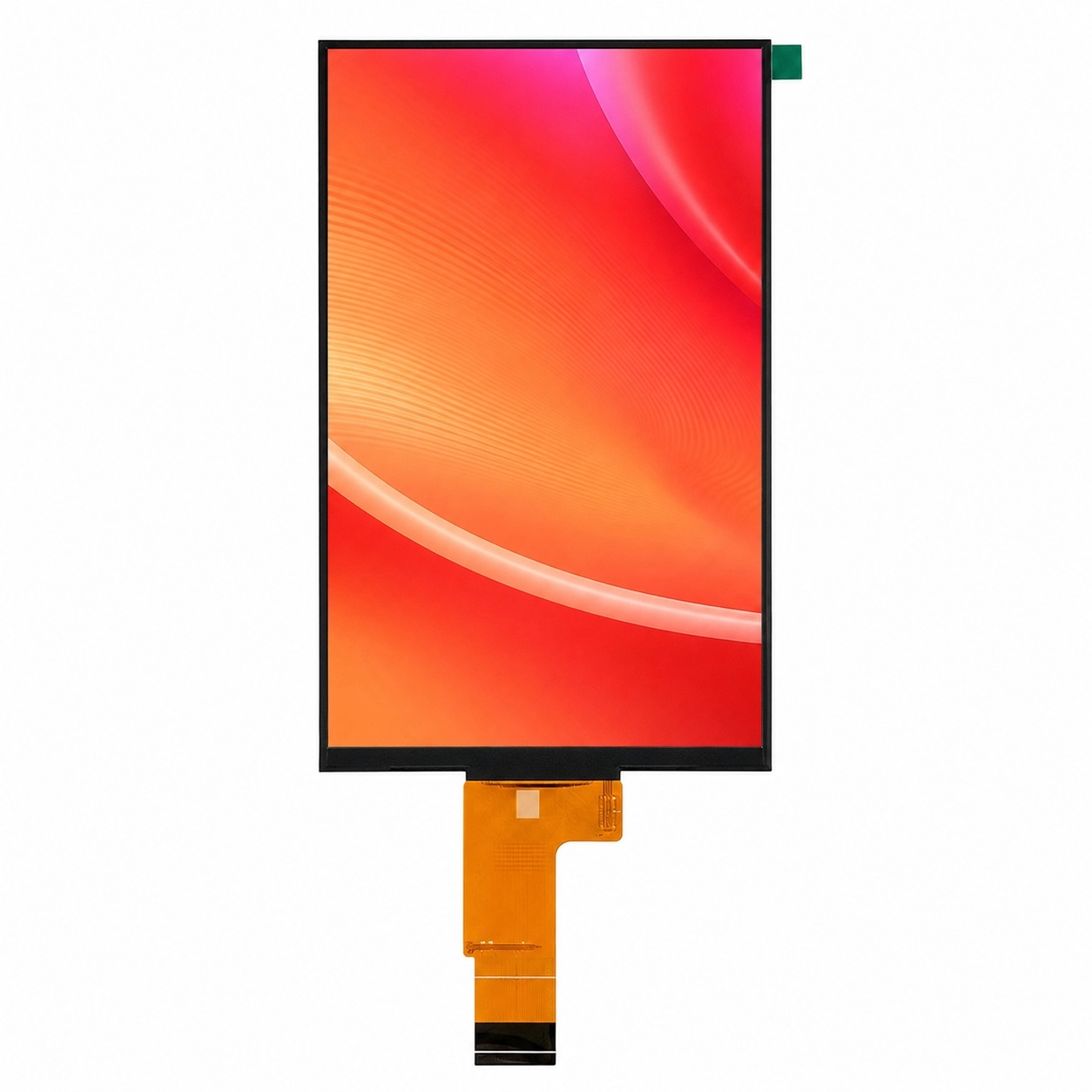

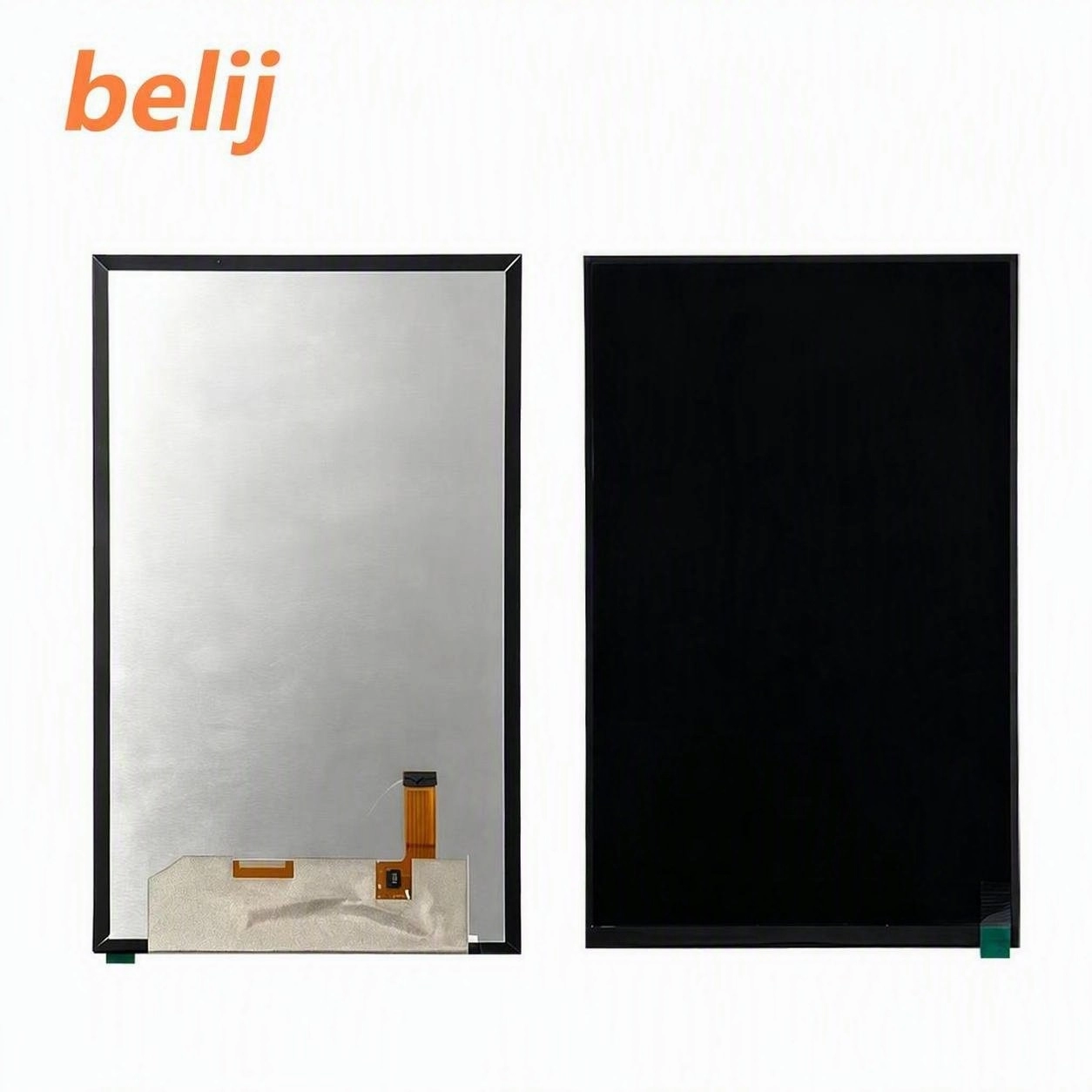

Product Views
|
|
Typical Applications
Face recognition devicesRobotsDigital photo framesSmart home panelsIndustrial tabletsPOS terminalsHandheld terminalsMedical equipment
Customization & OEM/ODM Service
- Display size, resolution and brightness tailored to your project
- Interface options: RGB / MIPI / LVDS / SPI, FPC or connector

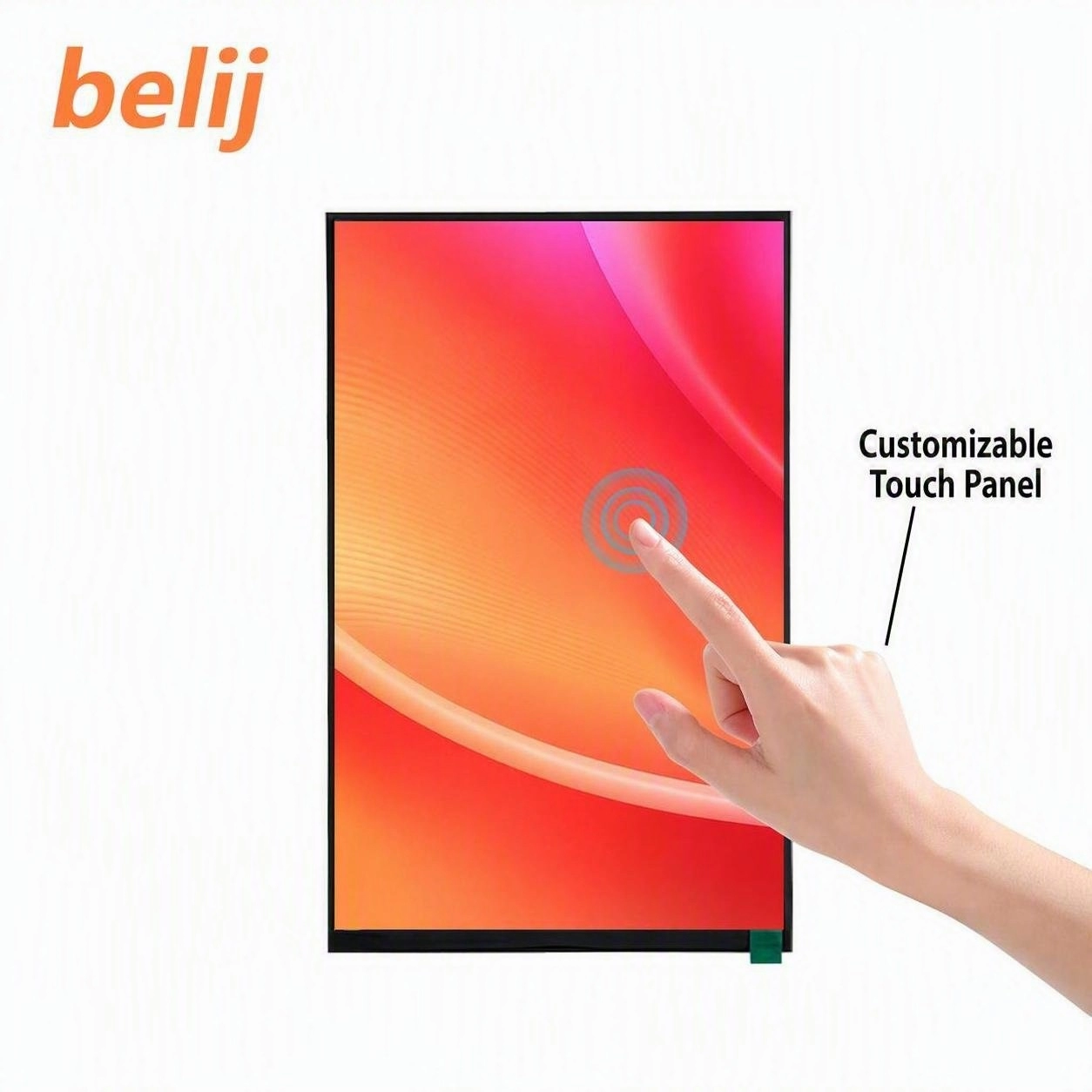

- Optional touch: resistive or capacitive (full lamination)
- Custom cover glass, frame and structural design
- Driver IC and backlight customization for special requirements
- Low MOQ for sampling; stable mass production for bulk orders
Why Choose BELIJ
| Founded | 2009, Shenzhen, China |
| Certifications | ISO9001, ISO14001, National High-Tech Enterprise, SRDI (Specialized & Sophisticated) |
| Patents | 100+ product patents |
| Monthly Capacity | 1,000,000+ units |
| Trusted by | Haier, Xiaomi, Alibaba, PAX and more |
Need a custom LCD display module? Get a free quote today.
Send your specification or drawing — our engineers will reply within 24 hours.
