5.5 Inch FHD MIPI TFT LCD Display Module
1080x1920 1000 Nits
5.5 Inch FHD MIPI TFT LCD Display Module
1080x1920 1000 Nits
Generate QR code
-
Estimated Delivery:Sep 08 - Sep 12
Product description
Product Overview
5.5-inch FHD high brightness display with touch support. Sourced from BELIJ (Shenzhen Beliga Electronic Technology Co., Ltd.), a national high-tech LCM manufacturer with 17+ years of experience and 100+ product patents, ISO9001 & ISO14001 certified.
Key Features
- Full HD 1080x1920 resolution for sharp, detailed visuals
- 1000 cd/m2 with ≥80% uniformity, sunlight-readable
- MIPI interface with integrated CTP touch support pins
- Ultra-slim 1.52mm blacklight panel for thin device designs
- HX8399C driver IC, RoHS compliant and stable supply
Technical Specifications
| size | 5.5 inch |
| resolution | 1080 (RGB) x 1920 (FHD) |
| brightness | 1000 cd/m2 (typ), uniformity ≥80% |
| interface | MIPI (includes CTP touch pins) |
| driver_ic | HX8399C |

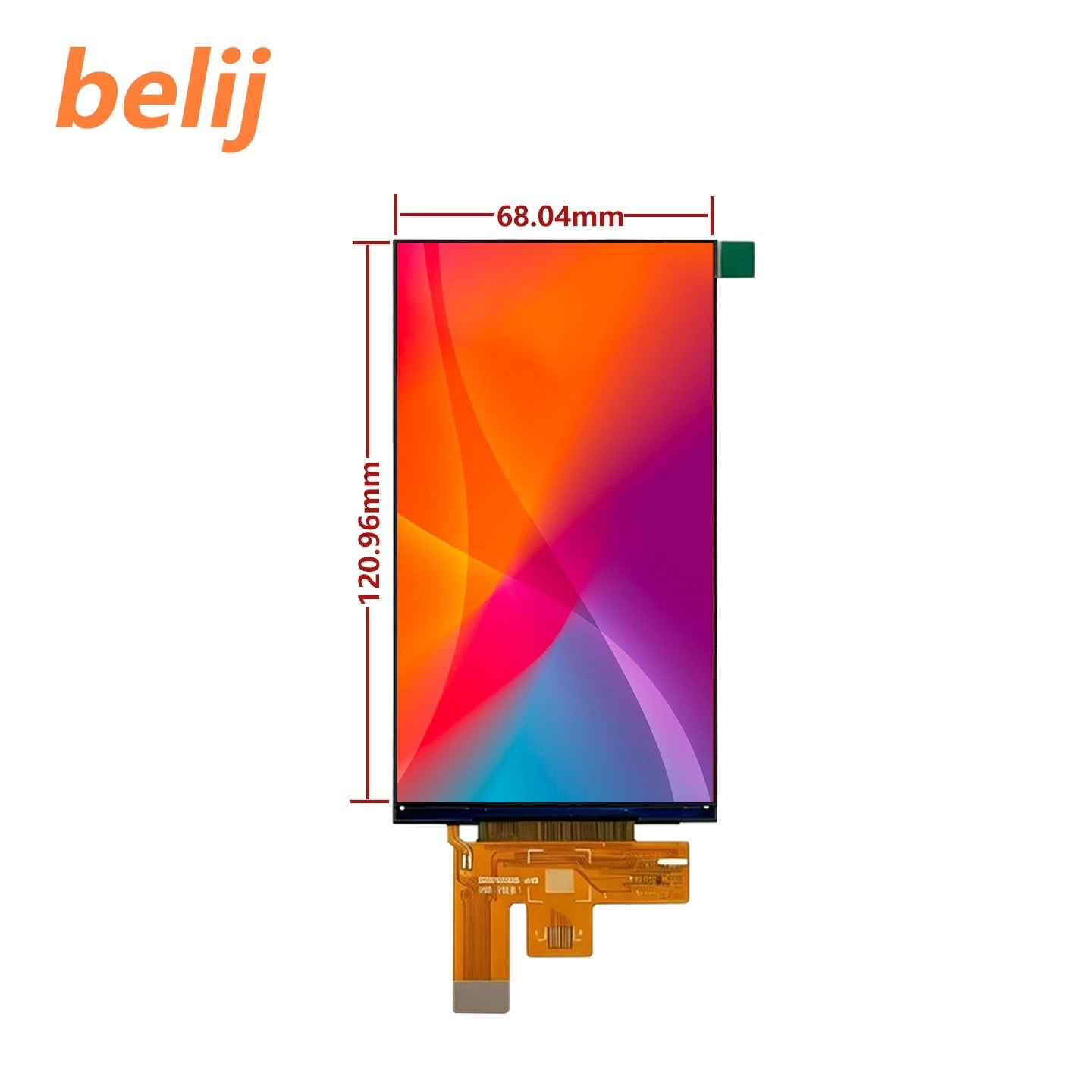

| active_area | 68.04 x 120.96 mm |
| outline | 70.24 x 128.10 x 1.52 mm |
| view_direction | All |
| led | If=60mA, 28V~32V |
| uniformity | ≥80% |
| pin_count | 40 pin |
| operating_temp | -20°C to +70°C |
| storage_temp | -30°C to +80°C |
| touch | CTP supported (on-board touch pins) |

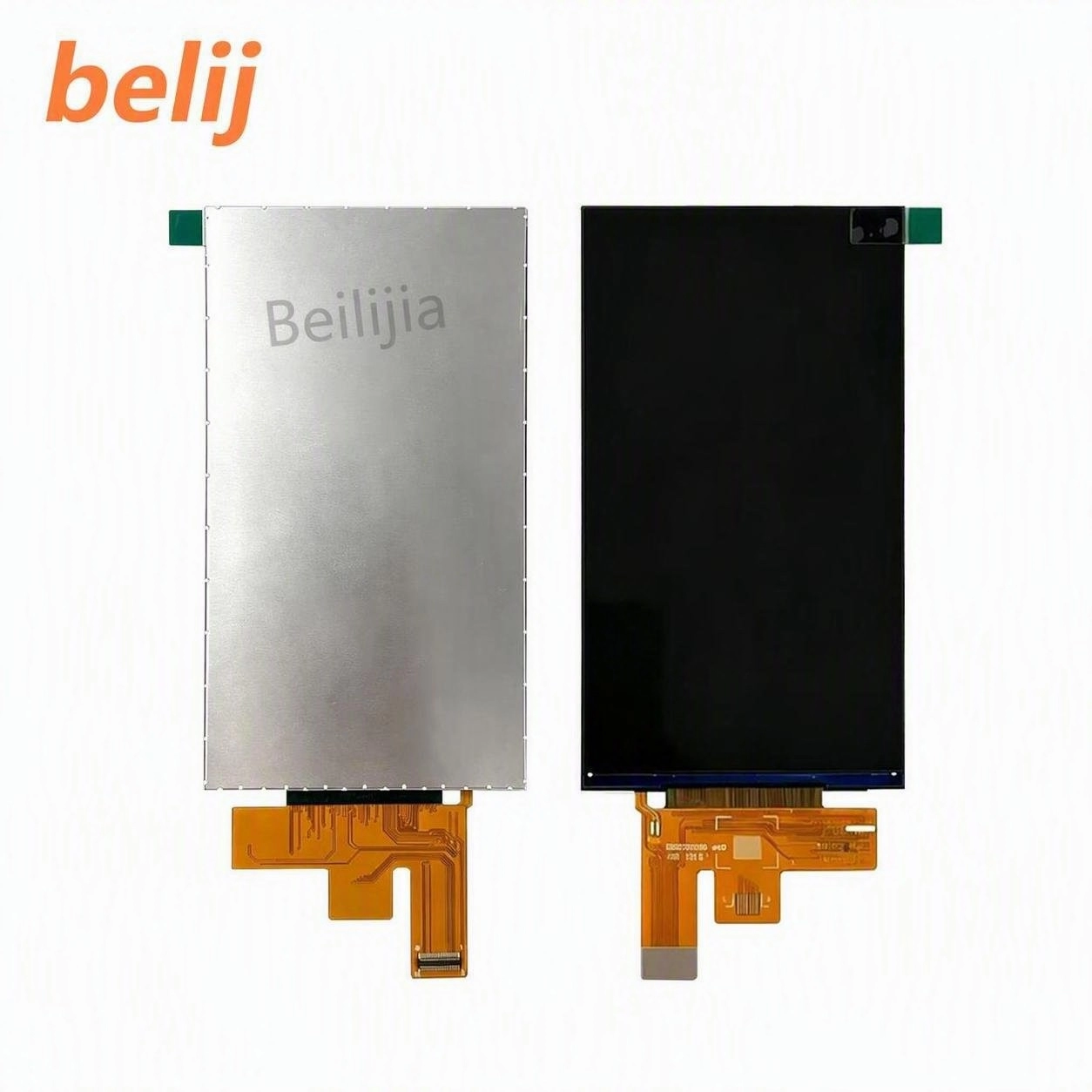

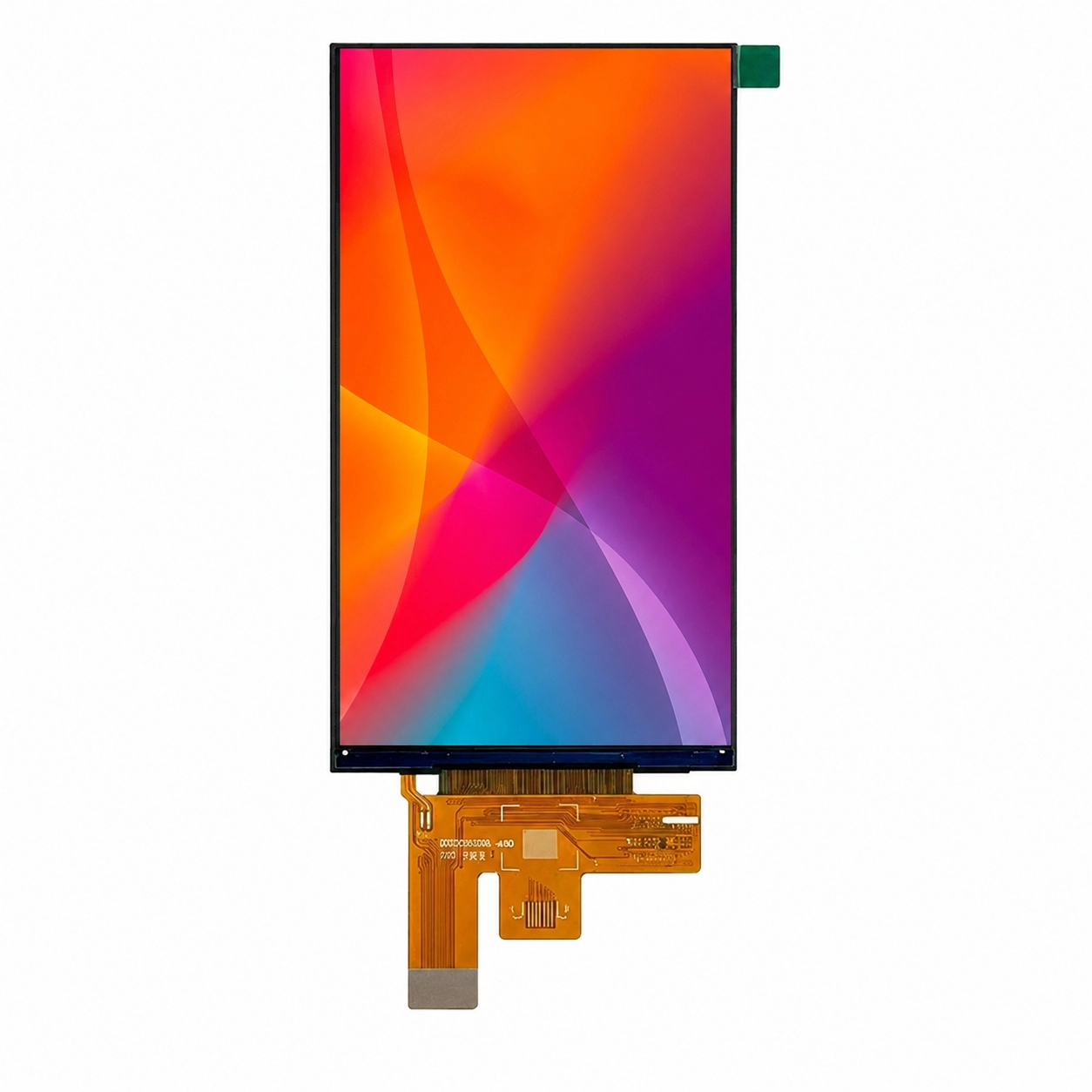

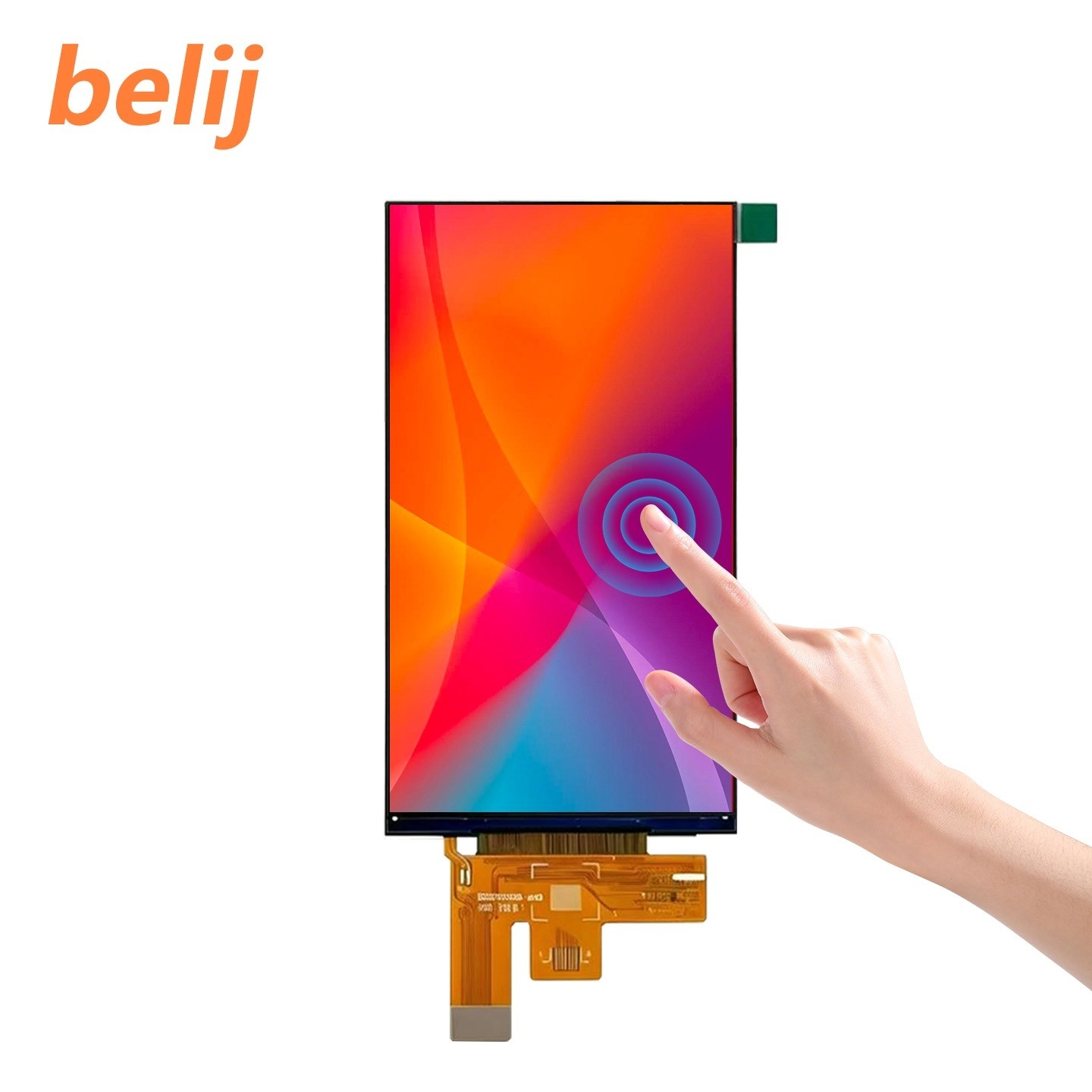

Product Views
|
|
Typical Applications
Handheld PDA terminalsDrone remote control panelsE-bike gaugesRugged / tri-proof phonesOutdoor photography equipment
Customization & OEM/ODM Service
- Display size, resolution and brightness tailored to your project
- Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
- Optional touch: resistive or capacitive (full lamination)
- Custom cover glass, frame and structural design
- Driver IC and backlight customization for special requirements
- Low MOQ for sampling; stable mass production for bulk orders
Why Choose BELIJ
| Founded | 2009, Shenzhen, China |
| Certifications | ISO9001, ISO14001, National High-Tech Enterprise, SRDI (Specialized & Sophisticated) |
| Patents | 100+ product patents |
| Monthly Capacity | 1,000,000+ units |
| Trusted by | Haier, Xiaomi, Alibaba, PAX and more |
Need a custom LCD display module? Get a free quote today.
Send your specification or drawing — our engineers will reply within 24 hours.
