7.0 Inch MIPI TFT LCD Display Module
800x1280 1100 Nits
7.0 Inch MIPI TFT LCD Display Module
800x1280 1100 Nits
Generate QR code
-
Estimated Delivery:Sep 08 - Sep 12
Product description
Product Overview
7-inch 1100 nits high brightness display for drone and HMI. Sourced from BELIJ (Shenzhen Beliga Electronic Technology Co., Ltd.), a national high-tech LCM manufacturer with 17+ years of experience and 100+ product patents, ISO9001 & ISO14001 certified.

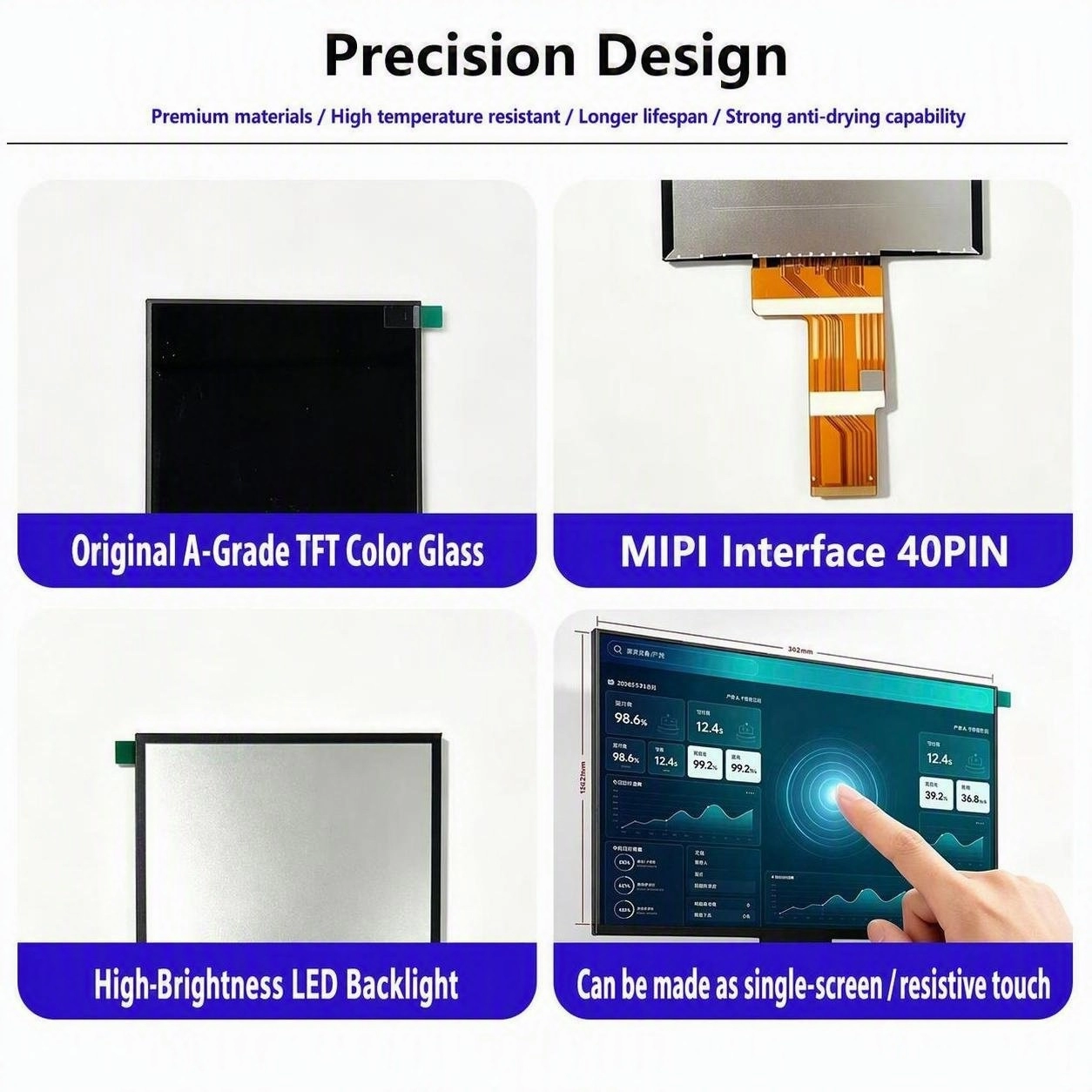

Key Features
- 1100 cd/m2 ultra-high brightness, excellent sunlight readability
- 800x1280 portrait resolution for vertical HMI and control panels
- Original A-grade true-color glass for accurate, vivid display
- High-brightness LED backlight with long service life
- Optional resistive touch, single-screen or touch versions
Technical Specifications
| size | 7.0 inch |
| resolution | 800 x 1280 |
| brightness | 1100 cd/m2 (typ) |
| interface | MIPI (40 pin) |

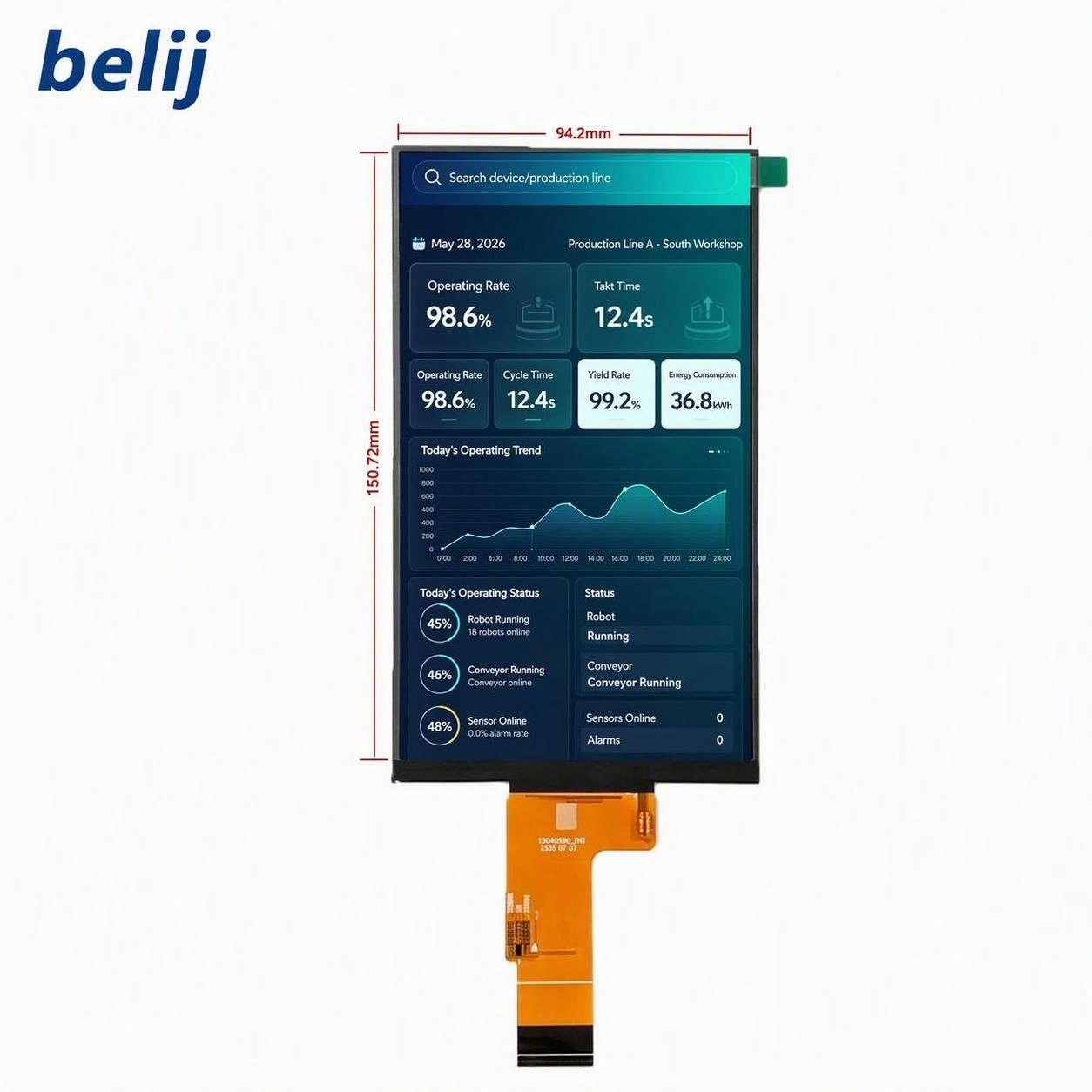

| active_area | 94.20 x 150.72 mm |
| outline | 99.81 x 161.06 x 4.27 mm |
| view_direction | All |
| led | High-brightness LED backlight |
| pin_count | 40 pin |
| operating_temp | -20°C to +70°C |
| storage_temp | -30°C to +80°C |
| touch | Resistive touch optional |

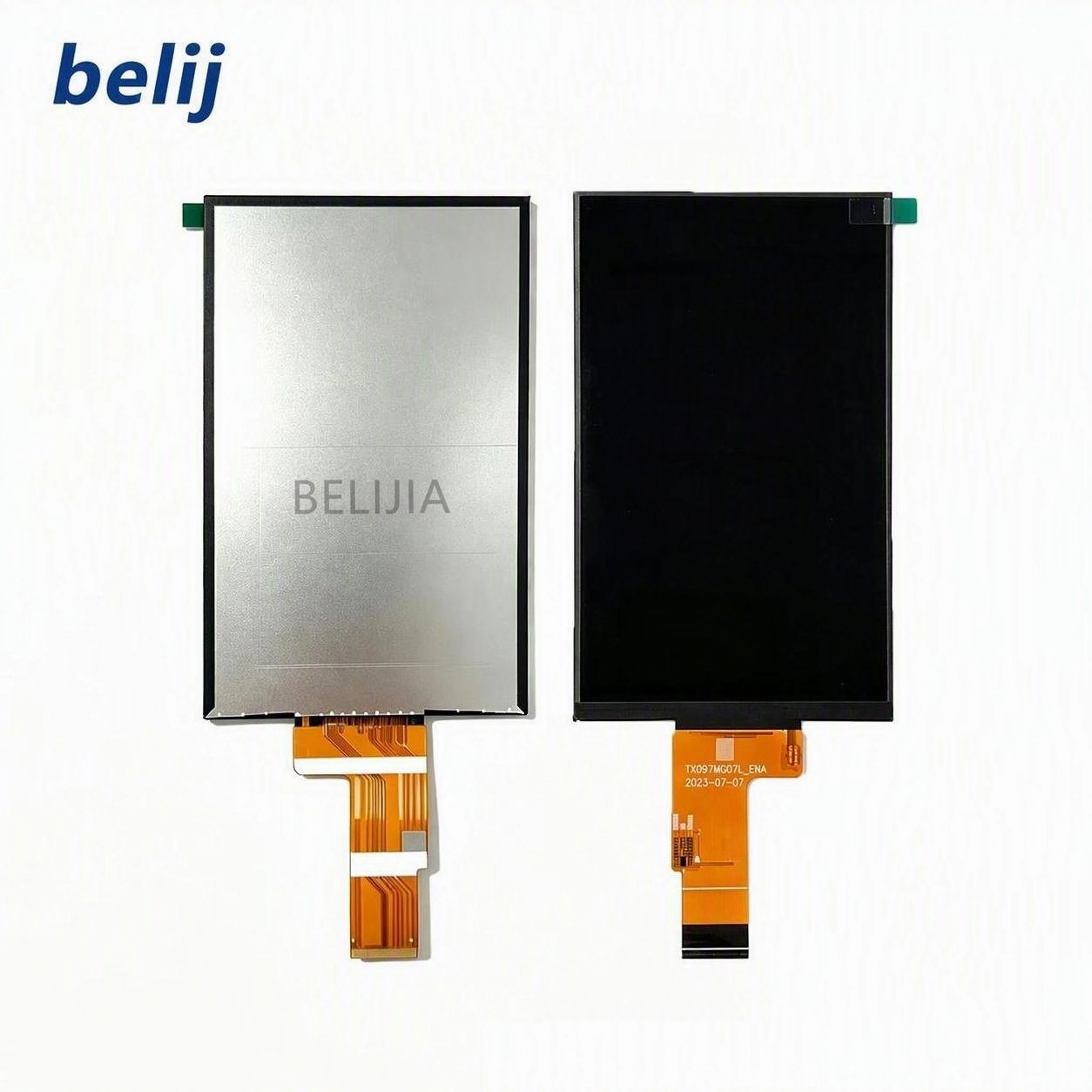

Product Views
|
|
Typical Applications
Drone / low-altitude aircraftSmart factory control panelsIndustrial HMI displaysInspection equipment
Customization & OEM/ODM Service
- Display size, resolution and brightness tailored to your project
- Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
- Optional touch: resistive or capacitive (full lamination)
- Custom cover glass, frame and structural design
- Driver IC and backlight customization for special requirements
- Low MOQ for sampling; stable mass production for bulk orders
Why Choose BELIJ
| Founded | 2009, Shenzhen, China |
| Certifications | ISO9001, ISO14001, National High-Tech Enterprise, SRDI (Specialized & Sophisticated) |
| Patents | 100+ product patents |
| Monthly Capacity | 1,000,000+ units |
| Trusted by | Haier, Xiaomi, Alibaba, PAX and more |
Need a custom LCD display module? Get a free quote today.
Send your specification or drawing — our engineers will reply within 24 hours.
