3.5 Inch TFT LCD Display Module
320x480 600 Nits
3.5 Inch TFT LCD Display Module
320x480 600 Nits
Generate QR code
-
Estimated Delivery:Sep 08 - Sep 12
Product description
Product Overview
Compact 3.5-inch display for handheld and portable devices. Sourced from BELIJ (Shenzhen Beliga Electronic Technology Co., Ltd.), a national high-tech LCM manufacturer with 17+ years of experience and 100+ product patents, ISO9001 & ISO14001 certified.
Key Features
- 600 nits brightness for clear readability indoors and semi-outdoors
- Compact 3.5-inch form factor, perfect for handheld terminals
- Low power consumption, extends battery life of portable devices
- RGB interface with simple driving, quick to integrate
- Low MOQ and fast sampling to accelerate your development
Technical Specifications
| size | 3.5 inch |
| resolution | 320 x 480 |
| brightness | 600 cd/m2 (typ) |
| interface | RGB |

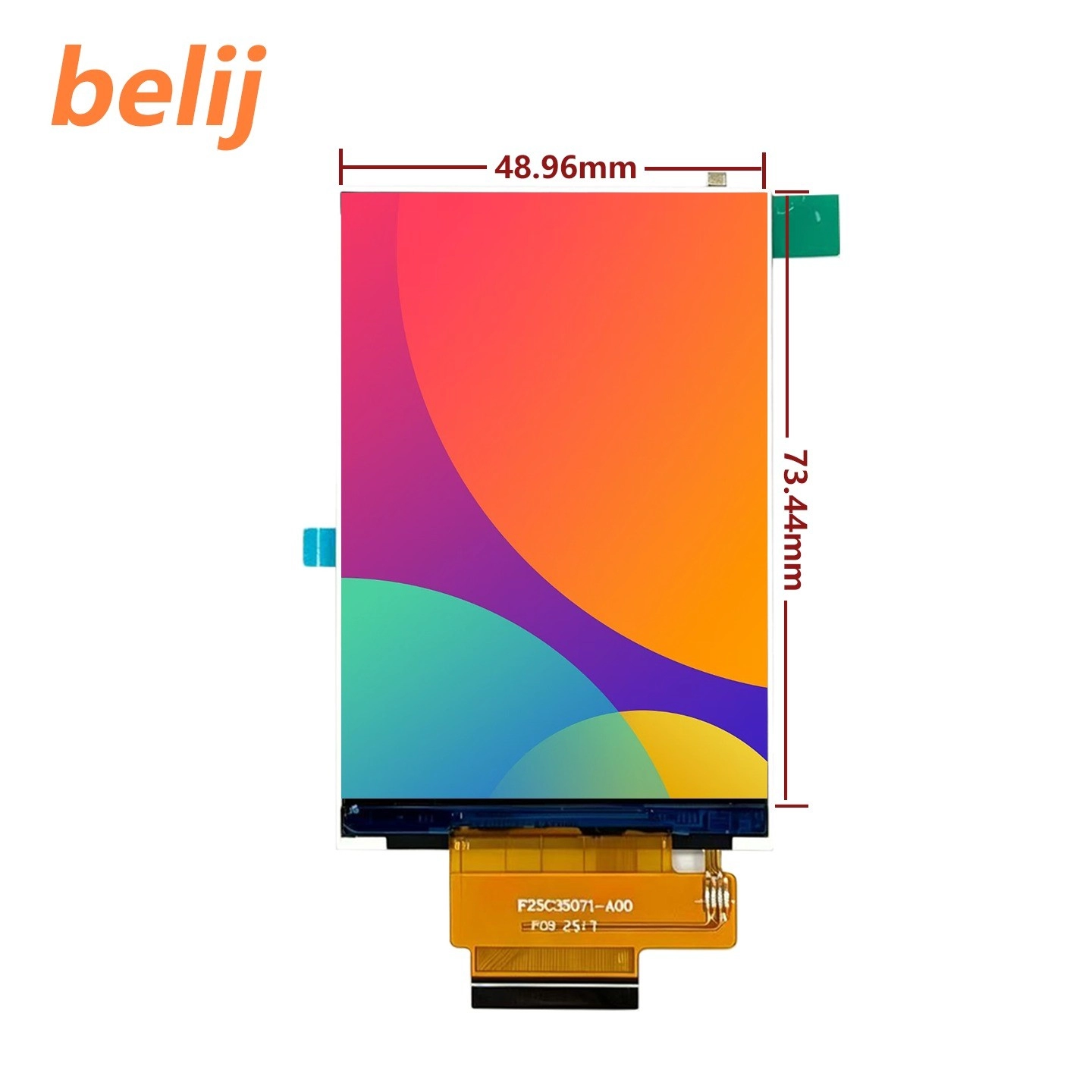

| active_area | 48.96 x 73.44 mm |
| outline | 53.36 x 82.93 x 2.29 mm |
| view_direction | All |
| operating_temp | -20°C to +70°C |
| storage_temp | -30°C to +80°C |
| touch | Optional (custom) |

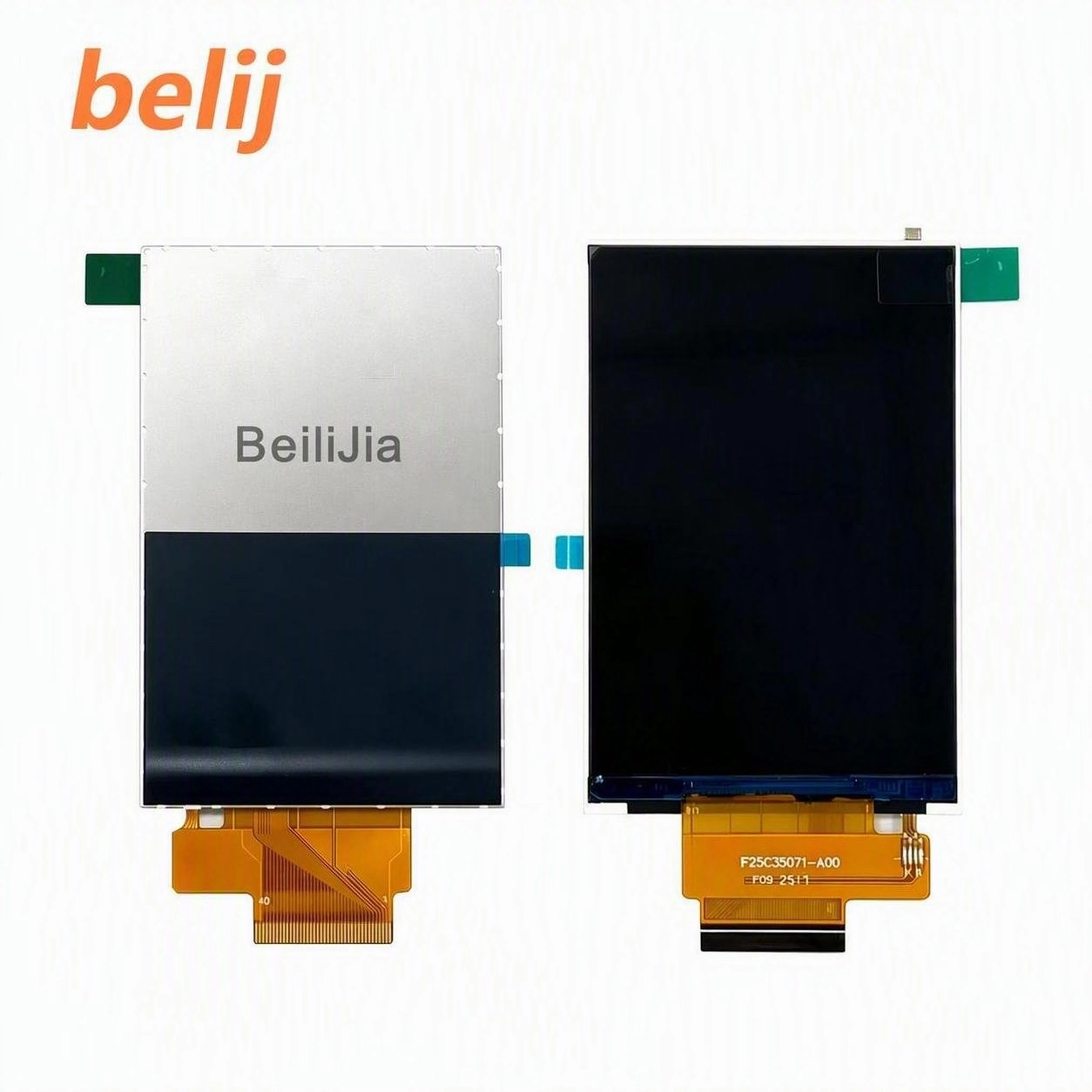

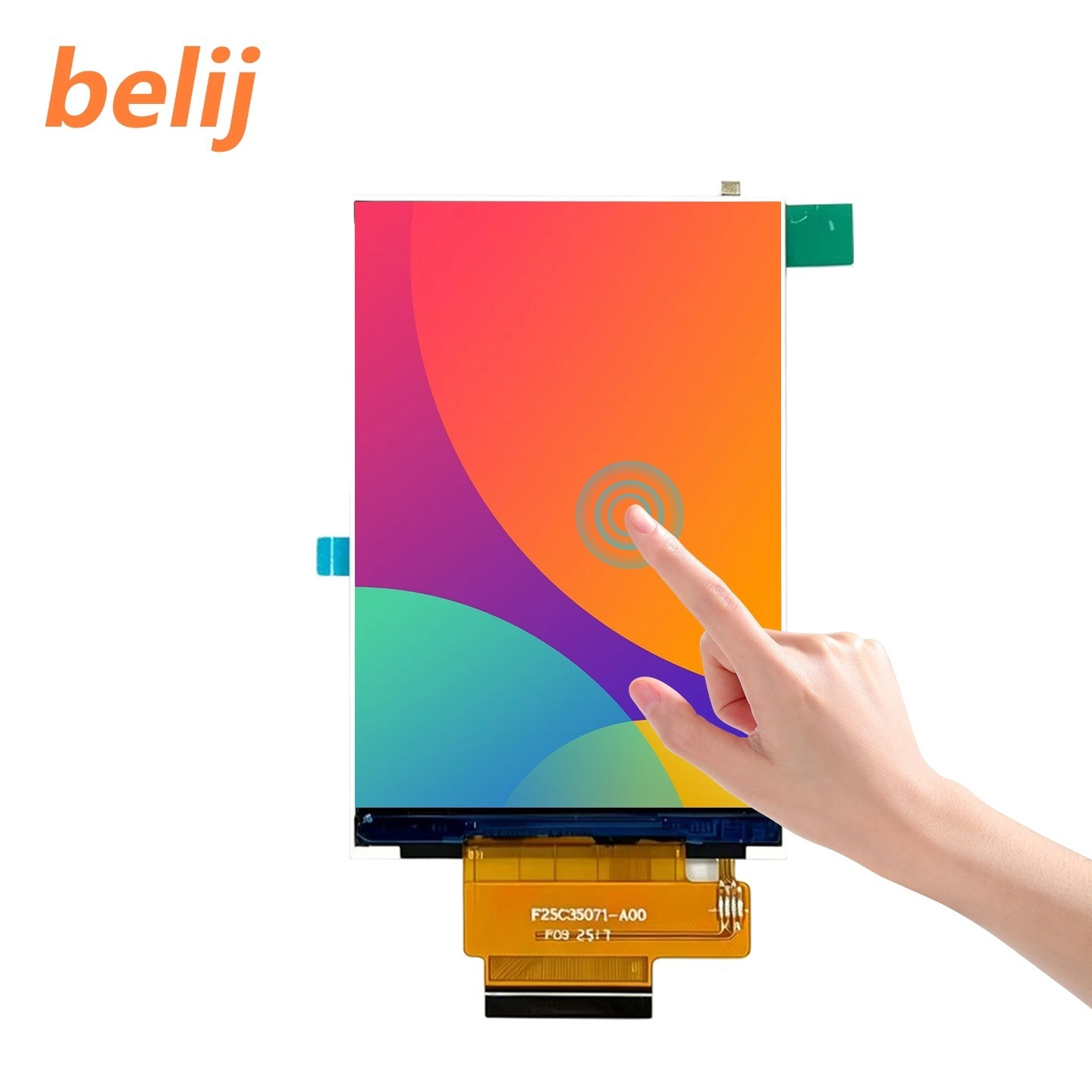

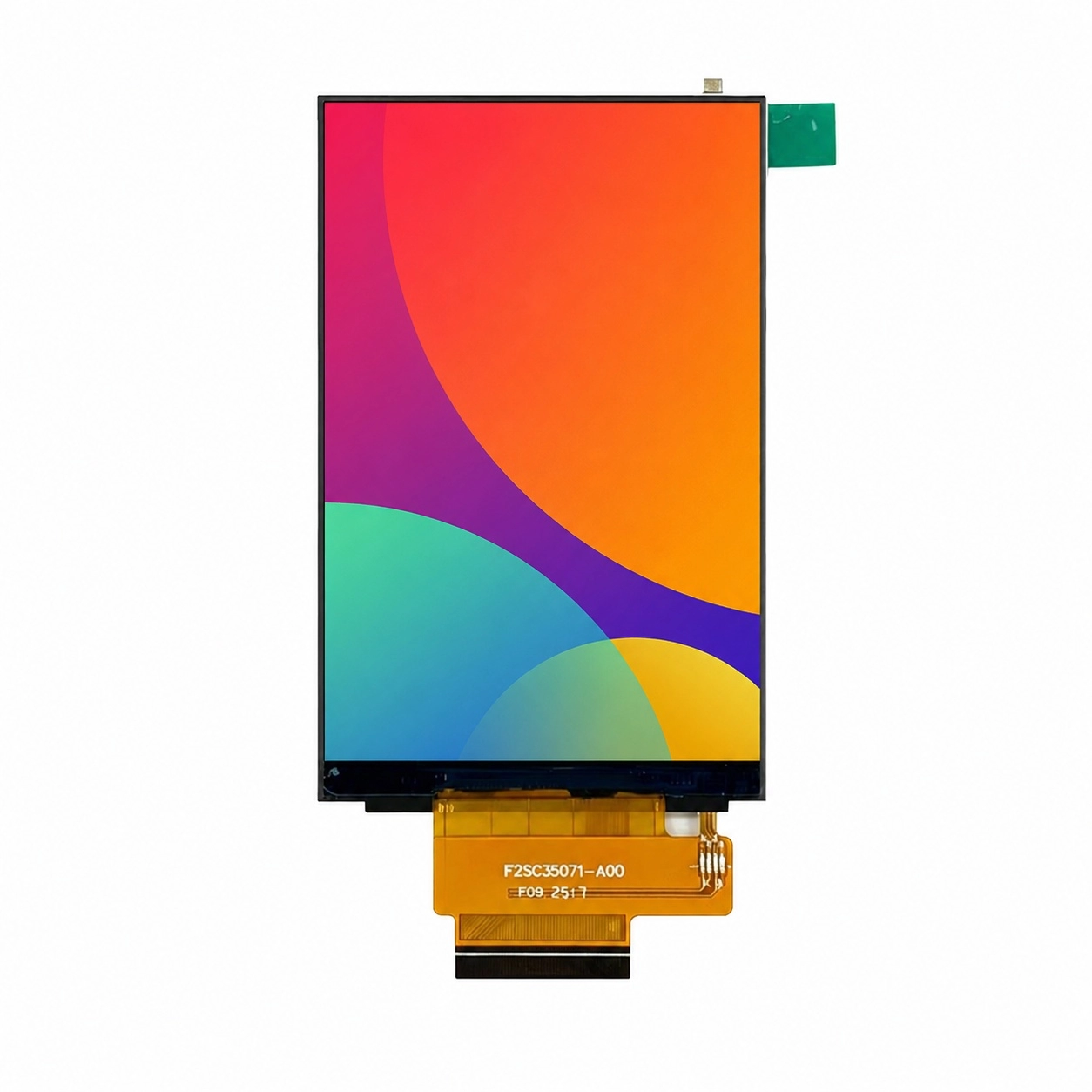

Product Views
|
|
Typical Applications
Walkie-talkies / POC radiosThermal imaging devicesIndustrial handheld displaysMedical handheld equipment
Customization & OEM/ODM Service
- Display size, resolution and brightness tailored to your project
- Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
- Optional touch: resistive or capacitive (full lamination)
- Custom cover glass, frame and structural design
- Driver IC and backlight customization for special requirements
- Low MOQ for sampling; stable mass production for bulk orders
Why Choose BELIJ
| Founded | 2009, Shenzhen, China |
| Certifications | ISO9001, ISO14001, National High-Tech Enterprise, SRDI (Specialized & Sophisticated) |
| Patents | 100+ product patents |
| Monthly Capacity | 1,000,000+ units |
| Trusted by | Haier, Xiaomi, Alibaba, PAX and more |
Need a custom LCD display module? Get a free quote today.
Send your specification or drawing — our engineers will reply within 24 hours.
