10.1 Inch LVDS TFT LCD Display Module
1920x1200 1000 Nits
10.1 Inch LVDS TFT LCD Display Module
1920x1200 1000 Nits
Generate QR code
-
Estimated Delivery:Sep 08 - Sep 12
Product description
Product Overview
Large 10.1-inch FHD high brightness display for industrial panels. Sourced from BELIJ (Shenzhen Beliga Electronic Technology Co., Ltd.), a national high-tech LCM manufacturer with 17+ years of experience and 100+ product patents, ISO9001 & ISO14001 certified.
Key Features
- 1920x1200 high resolution for crisp text and detailed graphics
- 1000 cd/m2 high brightness, readable in bright outdoor light
- LVDS interface for stable long-distance signal transmission
- Wide -20°C to +70°C operating temperature, rugged industrial design
- Full customization: touch, interface, FPC, size and brightness
Technical Specifications
| size | 10.1 inch |
| resolution | 1920 x 1200 |
| brightness | 1000 cd/m2 (typ) |
| interface | LVDS |

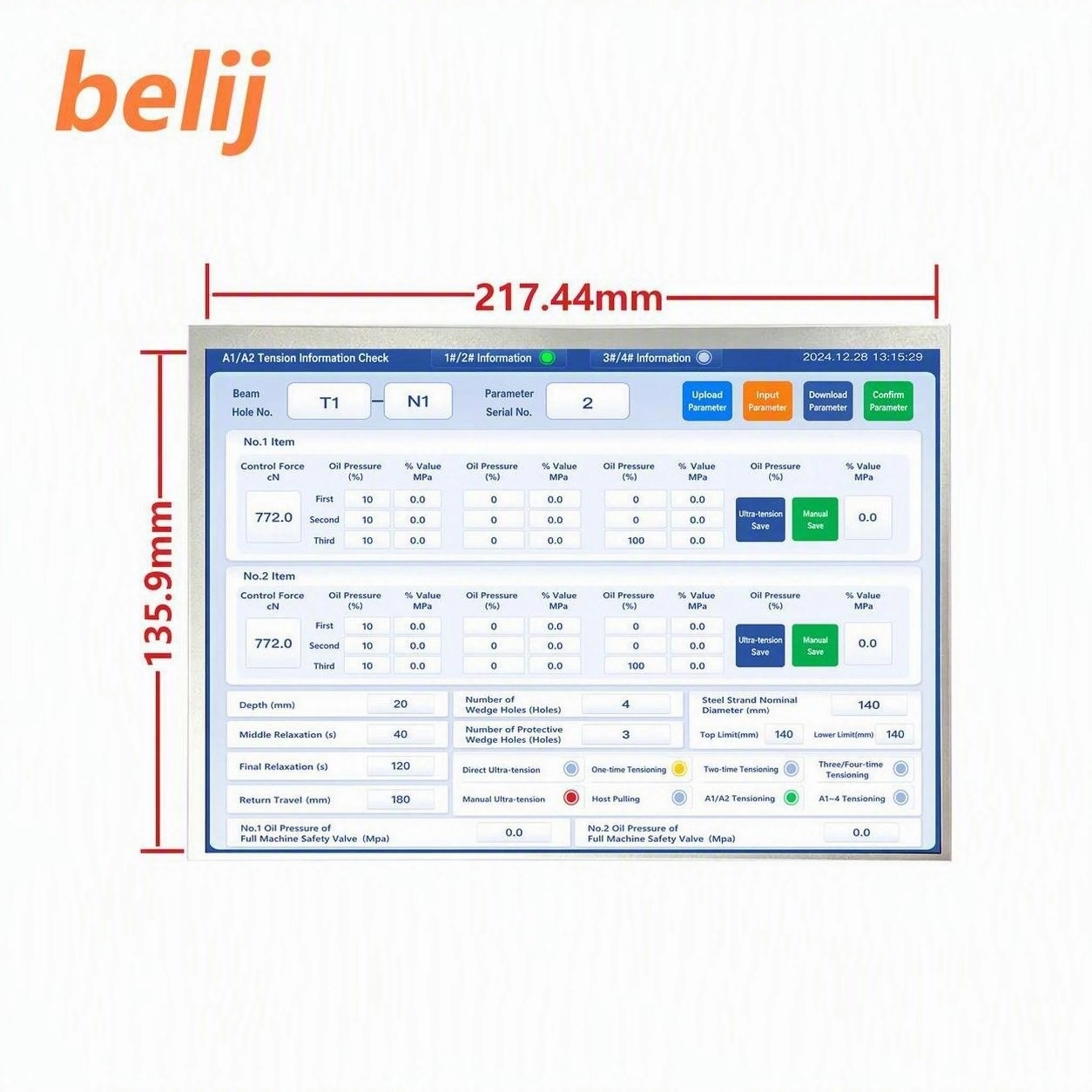

| active_area | 217.44 x 135.90 mm |
| outline | 229.46 x 149.10 x 4.80 mm |
| view_direction | All |
| operating_temp | -20°C to +70°C |
| storage_temp | -30°C to +80°C |
| touch | Optional (custom) |

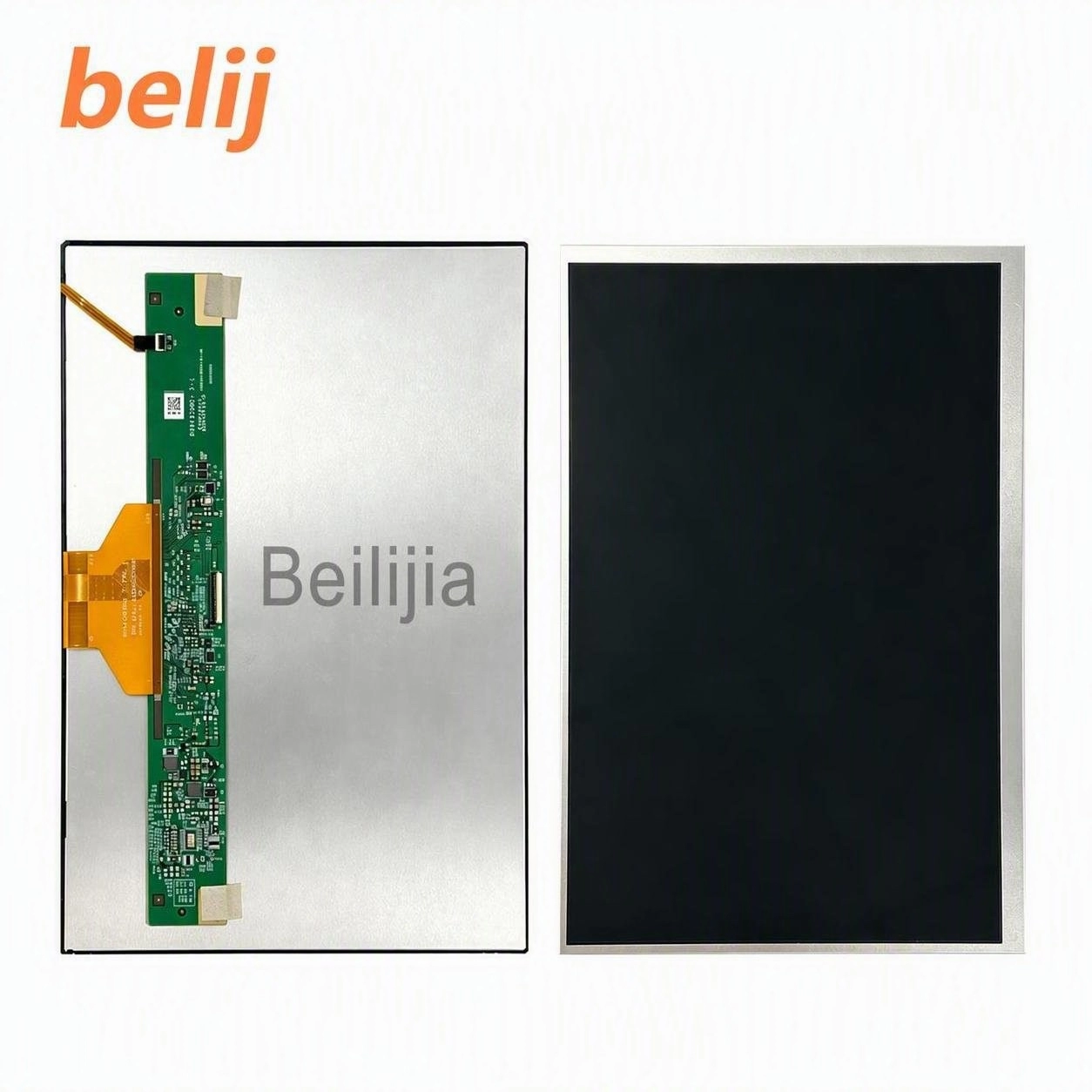

Product Views
|
|
Typical Applications
Industrial tabletsSecurity & surveillanceMedical equipmentDrone remote control panelsEV charging pilesOutdoor photography devices
Customization & OEM/ODM Service
- Display size, resolution and brightness tailored to your project
- Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
- Optional touch: resistive or capacitive (full lamination)
- Custom cover glass, frame and structural design
- Driver IC and backlight customization for special requirements
- Low MOQ for sampling; stable mass production for bulk orders
Why Choose BELIJ
| Founded | 2009, Shenzhen, China |
| Certifications | ISO9001, ISO14001, National High-Tech Enterprise, SRDI (Specialized & Sophisticated) |
| Patents | 100+ product patents |
| Monthly Capacity | 1,000,000+ units |
| Trusted by | Haier, Xiaomi, Alibaba, PAX and more |
Need a custom LCD display module? Get a free quote today.
Send your specification or drawing — our engineers will reply within 24 hours.
