B21C10620N-01 – 10.1 Inch 1024x600 MIPI IPS TFT LCD Display
No image available
No image available

B21C10620N-01 is a 10.1-inch IPS TFT LCD display with 1024 x 600 resolution and a MIPI panel interface. The specified brightness is 350 nits. Touch panel support is optional.

B21C10620N-01 – 10.1 Inch 1024x600 MIPI IPS TFT LCD Display
Share
Product description
  • Storage Temperature
    -30 C to +80 C
    Operating Temperature
    -20 C to +70 C
  • Interface
    MIPI
    PIN
    30
  • Brightness (nits)
    350
    Active Area (mm)
    135.36 x 216.58
  • Outline Dimension (mm)
    235.0 x 143.0 x 4.5
    Resolution
    1024 x 600
  • Viewing Angle
    IPS
    Touch Panel
    Optional
  • Model No
    B21C10620N-01
    Size
    10.1 inch

Technical Specifications

Size10.1 inch
Model NoB21C10620N-01
Touch PanelOptional
Display TypeIPS
Resolution1024 x 600
Outline Dimension (mm)235.0 x 143.0 x 4.5
Active Area (mm)135.36 x 216.58
Brightness (nits)350
PIN30
InterfaceMIPI
Operating Temperature-20 C to +70 C
Storage Temperature-30 C to +80 C

Key Features

B21C10620N-01 is a 10.1-inch IPS TFT LCD display with 1024 x 600 resolution and a MIPI panel interface. The specified brightness is 350 nits. Touch panel support is optional.

Applications

Industrial tabletsDrone remote control panelsSecurity & surveillanceMedical equipmentEV charging pilesOutdoor photography devices
BELIJ display application scenarios

Customization Options

  • Display size, resolution and brightness tailored to your project
  • Interface options: RGB / MIPI / LVDS / SPI, FPC or connector
  • Optional touch: resistive or capacitive (full lamination)
  • Custom cover glass, frame and structural design
  • Driver IC and backlight customization for special requirements
  • No MOQ for custom orders. Small-batch customization and mass production supported.

Dimensions

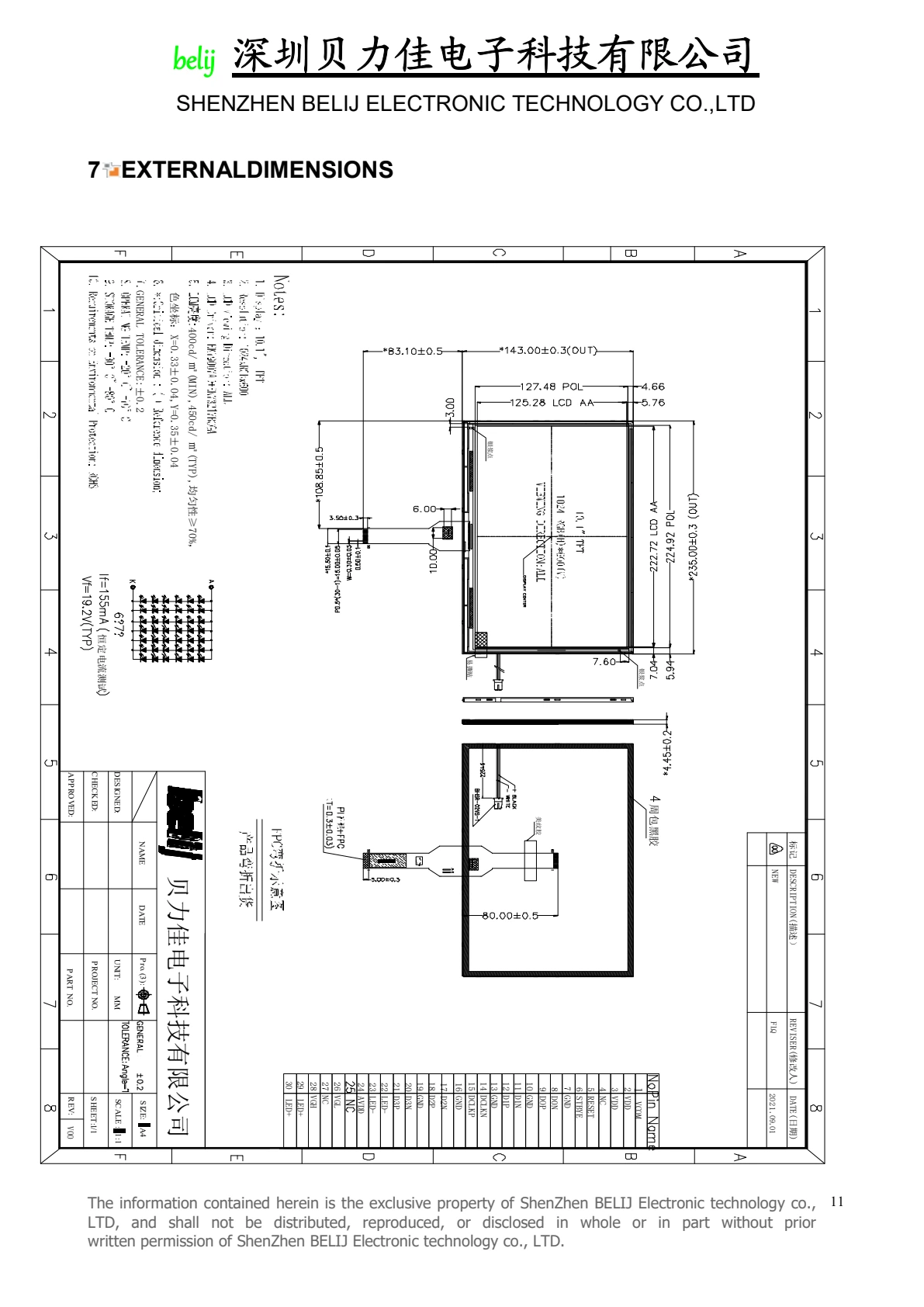

B21C10620N-01 dimensional drawing from datasheet

No Substitution. As Approved.
